Aftermarket Isolation Valve for Current-Generation DryShield or IsoVac Systems

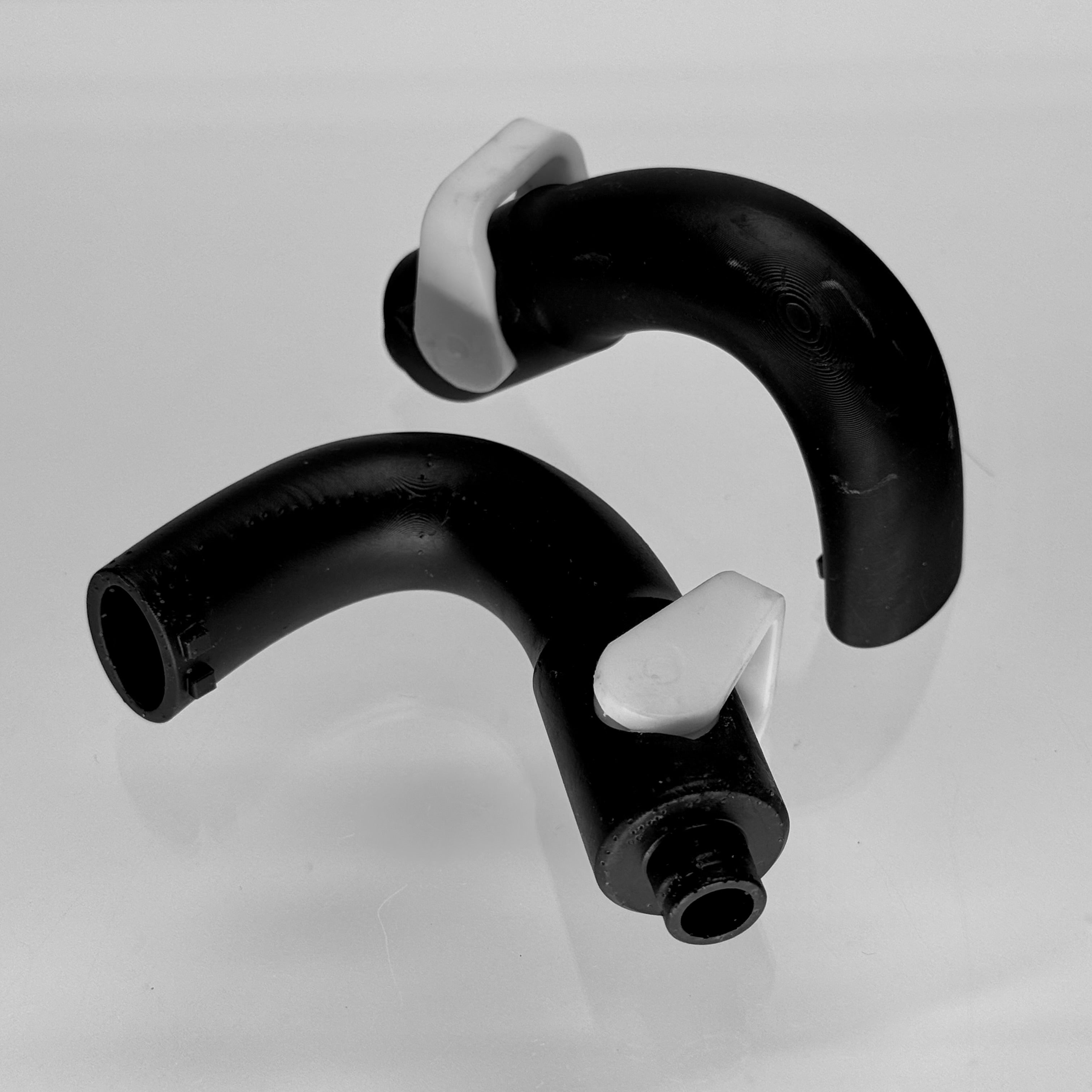

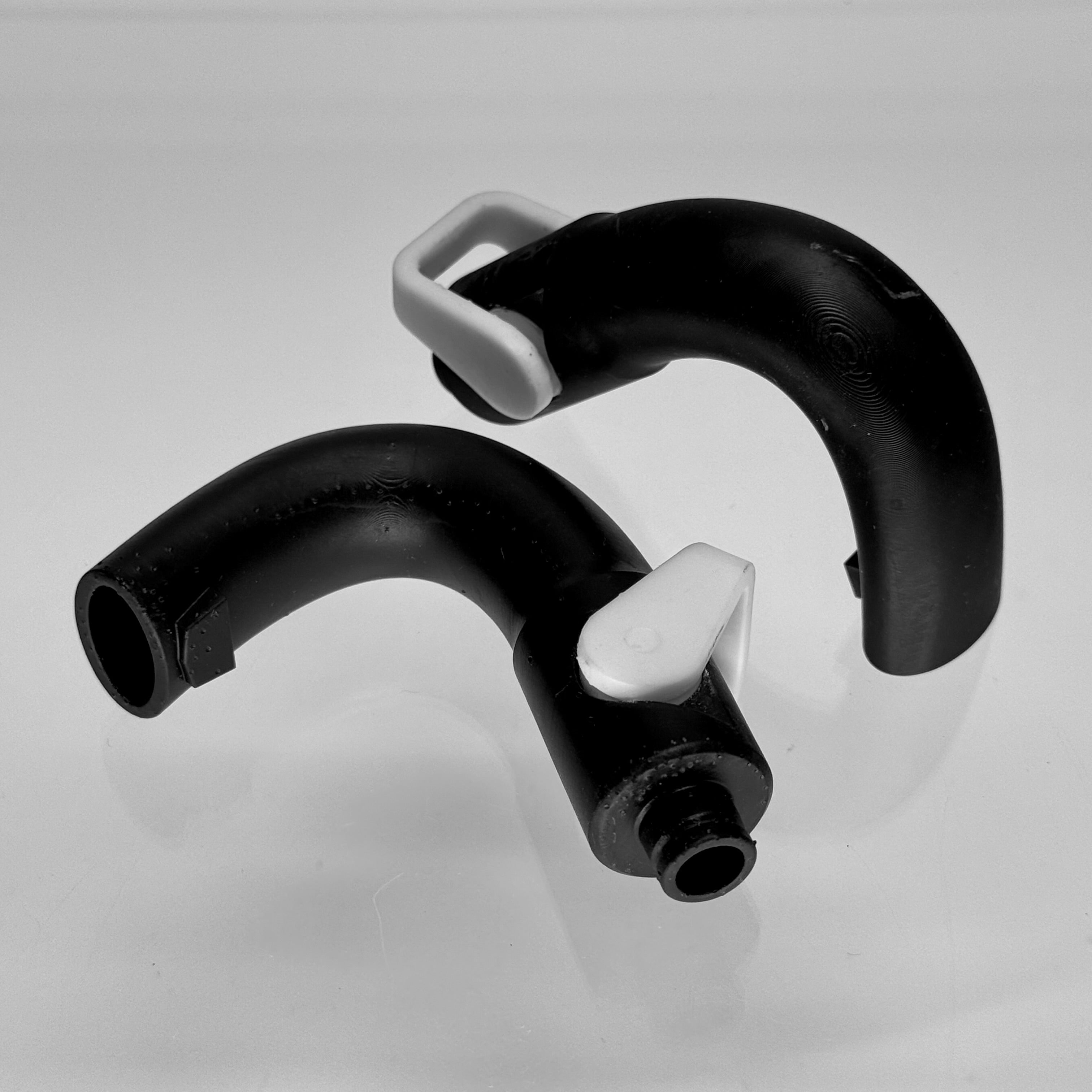

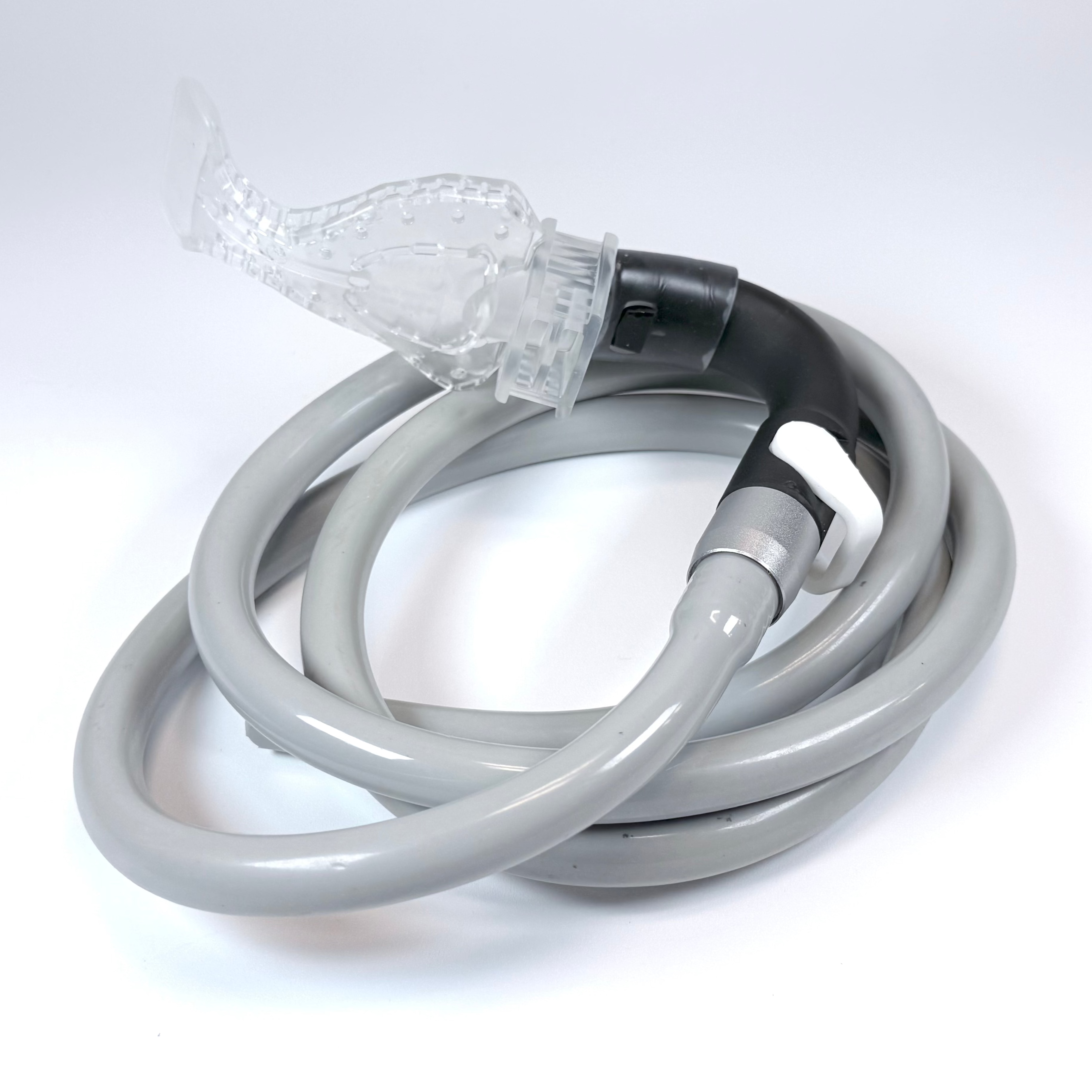

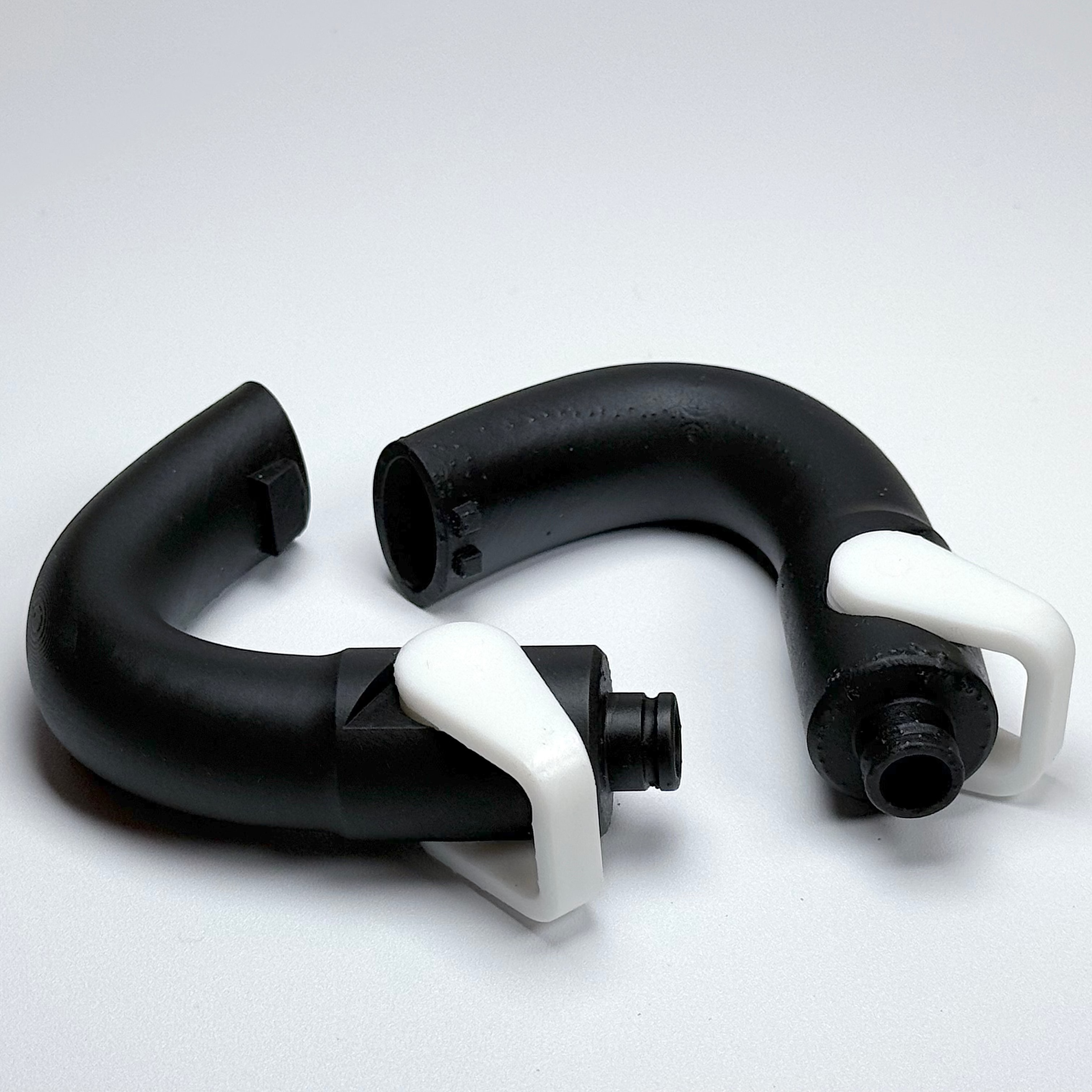

This assembled suction-hose isolation valve is available in two device-specific versions. Select the version that matches your current-generation DryShield or IsoVac system. A customer-supplied compatible silicone mouthpiece fits over the patient-side end; the valve body remains outside the mouth near the cheek. Alexactly does not supply the mouthpiece.
🌟 What This Adapter Does
-
Suction control: Provides the valve body installed in the suction-hose path.
-
Two current-generation interfaces: Choose DryShield or IsoVac when ordering. The variants are shaped differently and are not interchangeable.
-
Assembled replacement: Supplied with the O-rings, valve levers, and valve discs installed.
🦷 System Compatibility

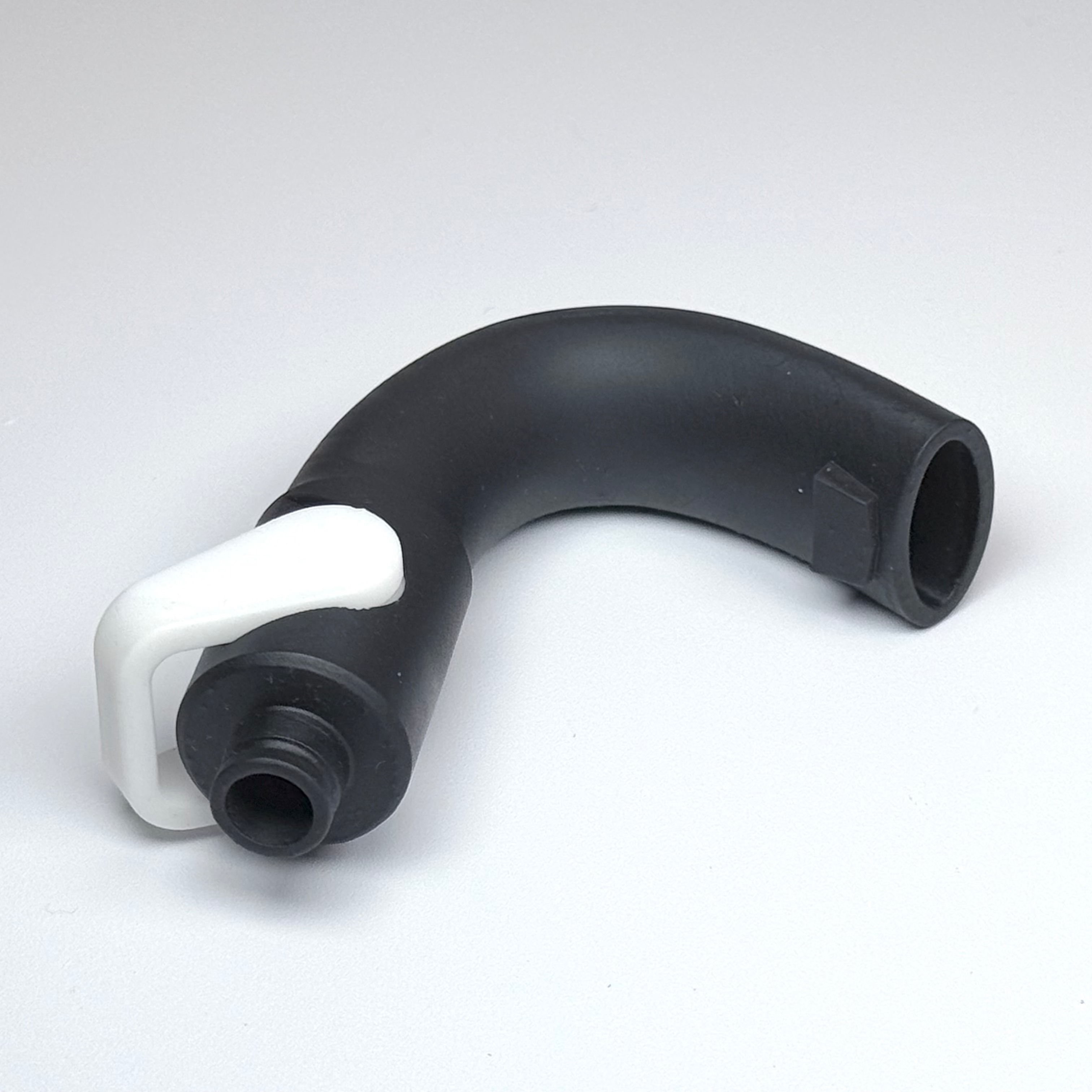

- Current-generation DryShield system

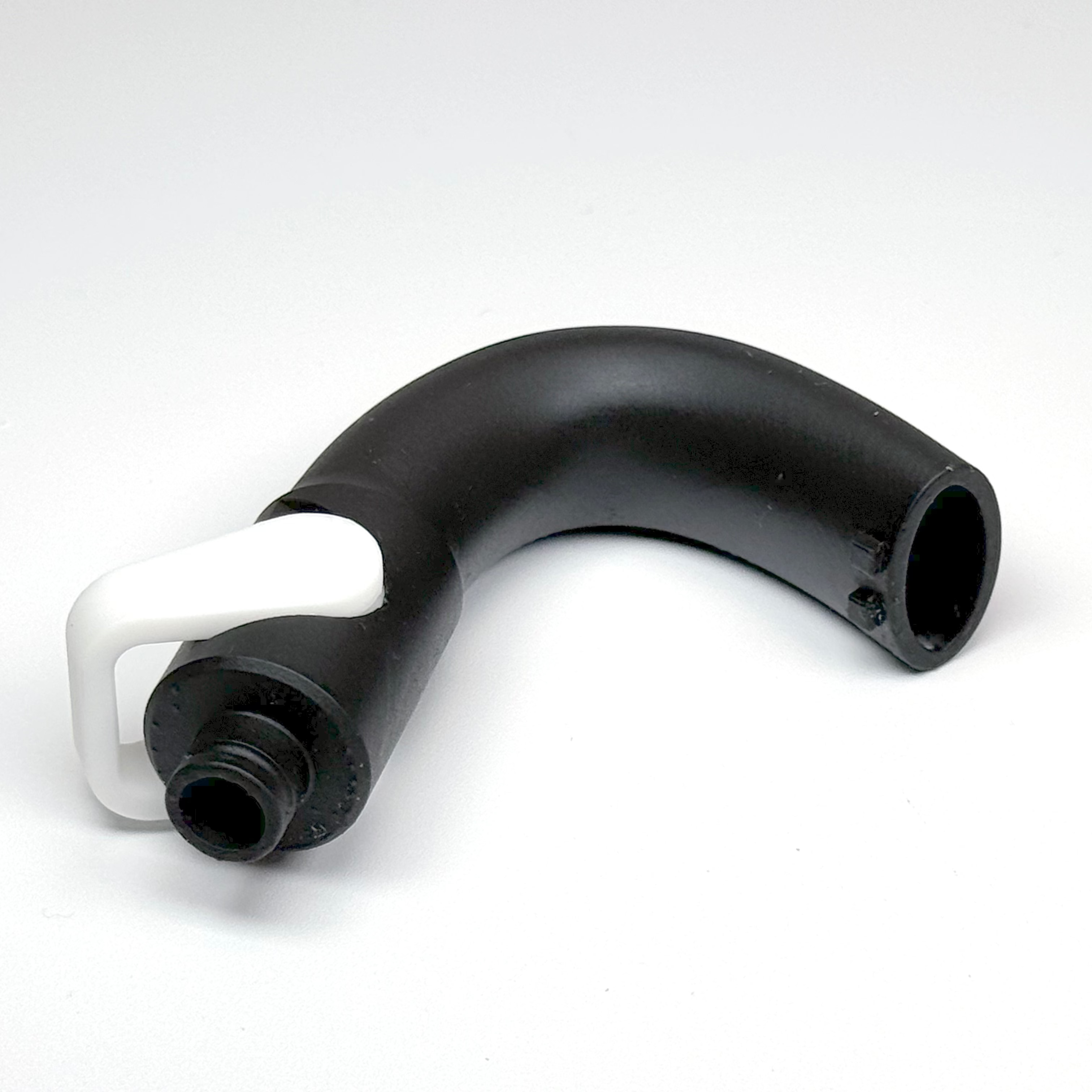

- Current-generation IsoVac system
Compatibility with earlier generations, including original IsoVac versus IsoVac 2 components, has not been confirmed. Compare the listing images with your existing valve before ordering.
🧪 Material & Manufacturing
-
Material: Gray biocompatible engineering resin
-
Printing: Formlabs Form 3B SLA printer
-
Post-processing equipment: Form Wash 2 and Form Cure 2
📦 In The Box
- 1 assembled isolation valve in the selected DryShield or IsoVac configuration
- Installed O-rings
- Installed valve levers
- Installed valve discs
Only the assembled isolation valve is included. Alexactly does not supply the silicone mouthpiece or suction hose. Replacement O-rings, valve levers, and valve discs are available separately.
⚠️ Cleaning, Sterilization & Intended Use
- Formlabs material testing found compatibility with five pre-vacuum steam-autoclave cycles at 132°C, using a 4-minute sterilization phase and 30-minute dry phase. Samples cooled for 30 minutes between cycles.
- The same material report found compatibility with gamma, E-beam, and ethylene-oxide sterilization under the specific test conditions described by Formlabs.
- These results apply to Formlabs test samples and do not replace application-specific validation for this finished adapter. Sterilization compatibility may vary with part geometry, equipment, and processing protocol.
- Alexactly does not provide a separately validated cleaning, disinfection, sterilization, or maximum-reuse protocol for this finished product.
- This aftermarket component is not a certified medical device. Professional users are responsible for determining whether it is appropriate for their intended workflow and for establishing a compatible infection-control protocol.
- It may also be purchased for training, student, demonstration, or other non-clinical uses.
↩️ Returns
No returns are accepted. If the product arrives with a functional manufacturing defect, contact Alexactly for replacement.
