This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
Reinforced Soffit Wedge for Angled Soffits (Alexactly Mounts Only)
Regular price
$35.95
Regular price
-5%
$37.95
Sale price
$35.95
Couldn't load pickup availability
Level an Alexactly Mount on an Angled Soffit With Continuous Metal Support
This reinforced custom-angle wedge is designed only for Alexactly mounts. Its included metal and brass hardware creates a continuous support path through the wedge, so the printed wedge acts as the shaped outer housing rather than the load-bearing connection.
🌟 Why Choose the Reinforced Wedge?
- Continuous metal support from the building structure to the Alexactly mount
- Printed wedge is not the load-bearing component
- Custom angles from 8° to 45° in whole-degree increments
- Purpose-built for Alexactly mounts
📐 Compatibility and Specifications
- Mount compatibility: Alexactly mounts only
- Angle range: 8°–45°, whole degrees only
- Soffit-facing base: 127 mm (5 in) diameter
- Height: varies with the ordered angle

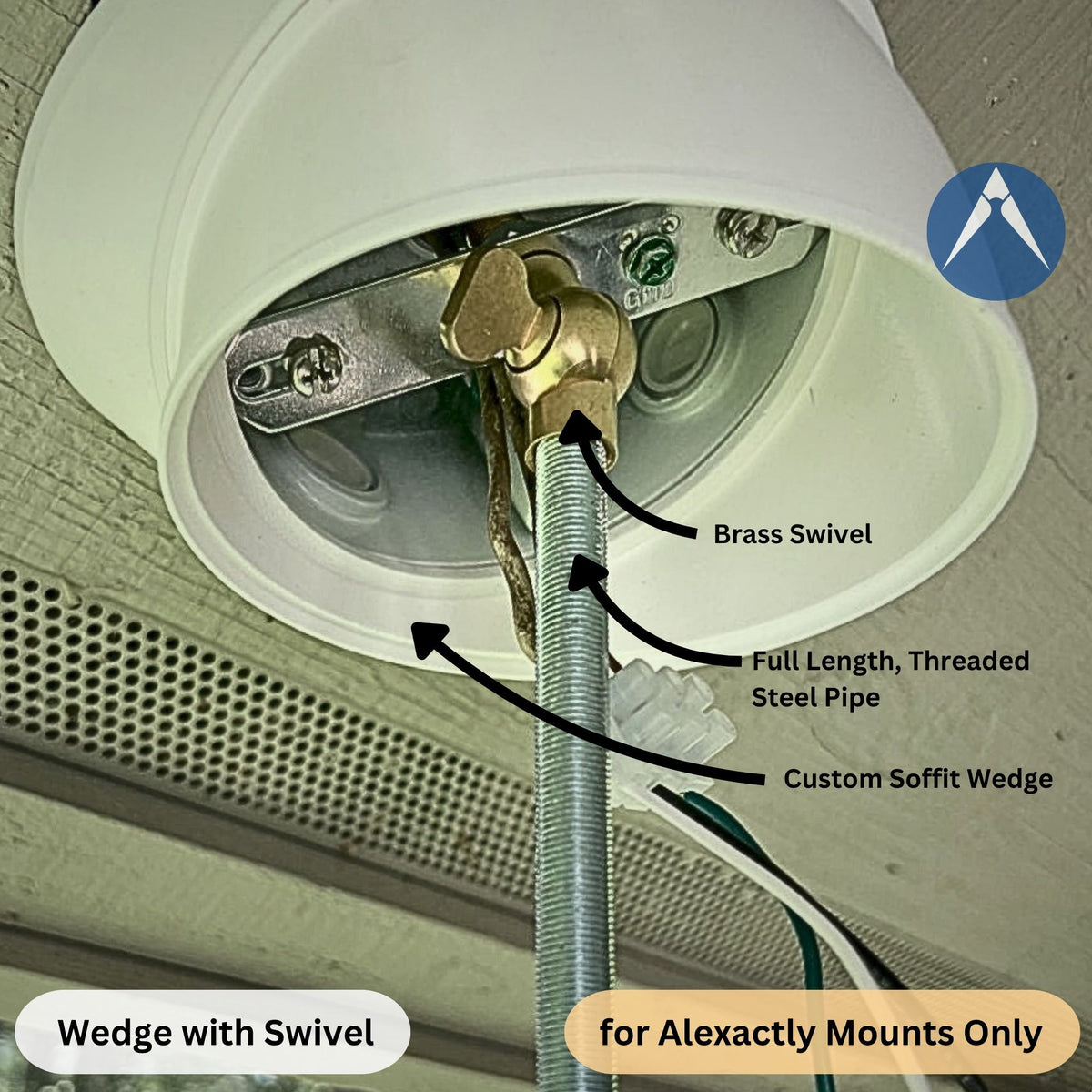

- Support system: 1/8 IPS brass swivel and continuous metal crossbar hardware
For a standard fixture installation that does not use an Alexactly mount, choose the Universal Soffit Wedge instead.
📦 In The Box
- One custom-angle reinforced soffit wedge
- One 1/8 IPS brass swivel
- One 1/8 IPS crossbar hardware set
🛠️ Ordering and Installation

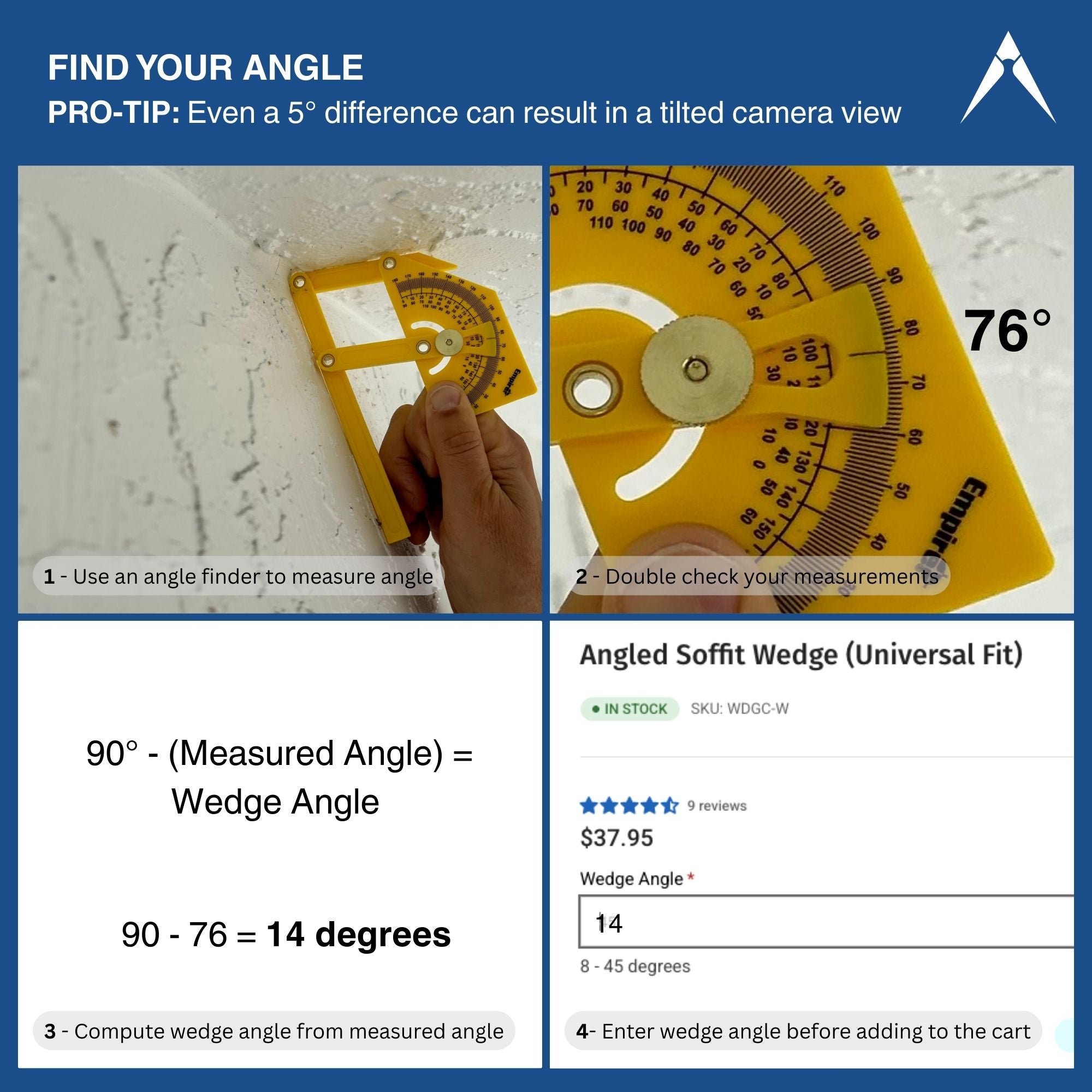

- Measure the soffit slope with an angle finder.
- Enter a whole-number angle from 8 to 45 in the required Angle field.
- Assemble the included metal support hardware through the wedge.
- Attach the compatible Alexactly mount using its installation instructions.
⚠️ Before You Order
- A missing angle or fractional angle will delay the order.
- This wedge is exclusively for Alexactly mounts.
- This item is made to order in your selected configuration. Please allow additional production time before shipment. Because production is specific to your selection, returns are not accepted.
- Cancellations cannot be accepted once production has begun.
