This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
Angled Soffit Wedge for UniFi G-Series Cameras (8°–45°)
Regular price
$26.95
Couldn't load pickup availability
Level a UniFi G-Series Camera on an Angled Soffit

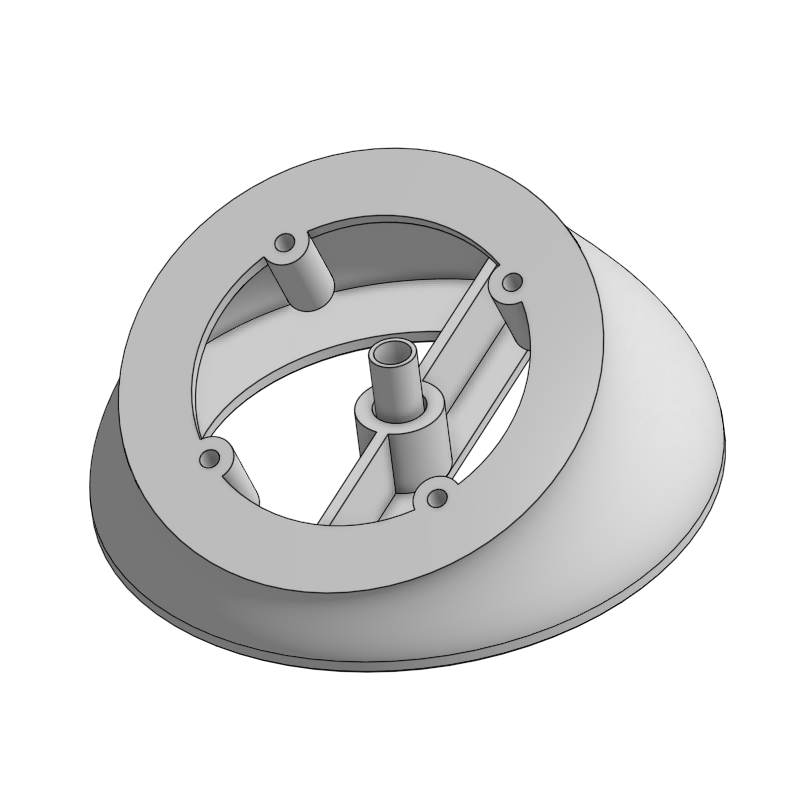

This custom-angle wedge was designed for the UniFi G6 Turret mounting interface. It creates a level camera-facing surface beneath a sloped soffit while attaching through standard 5-inch crossbar hardware at the soffit side.
🌟 Why Choose This UniFi Wedge?
- Designed for the UniFi G6 Turret
- Custom angles from 8° to 45° in whole-degree increments
- Includes the gasket and crossbar hardware

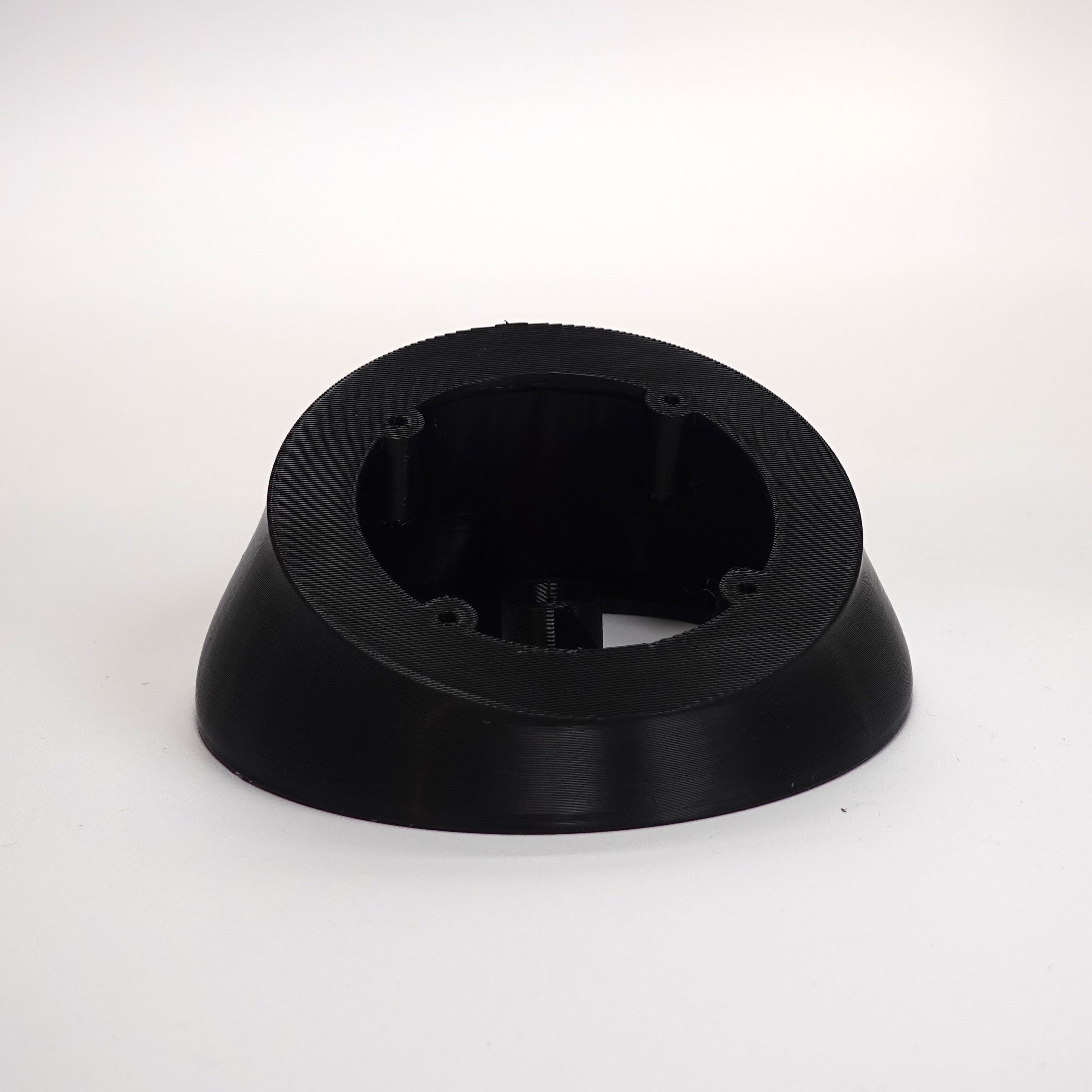

- White and black options coordinate with the camera and soffit
📹 Camera Compatibility
- Confirmed design: UniFi G6 Turret
- Earlier models: not confirmed, even where UniFi lists shared accessory compatibility; contact us before ordering for another Turret model
📐 Specifications
- Angle range: 8°–45°, whole degrees only
- Soffit-facing base: 127 mm (5 in) diameter
- Camera-facing interface: UniFi G6 Turret mounting pattern
- Height: varies with the ordered angle

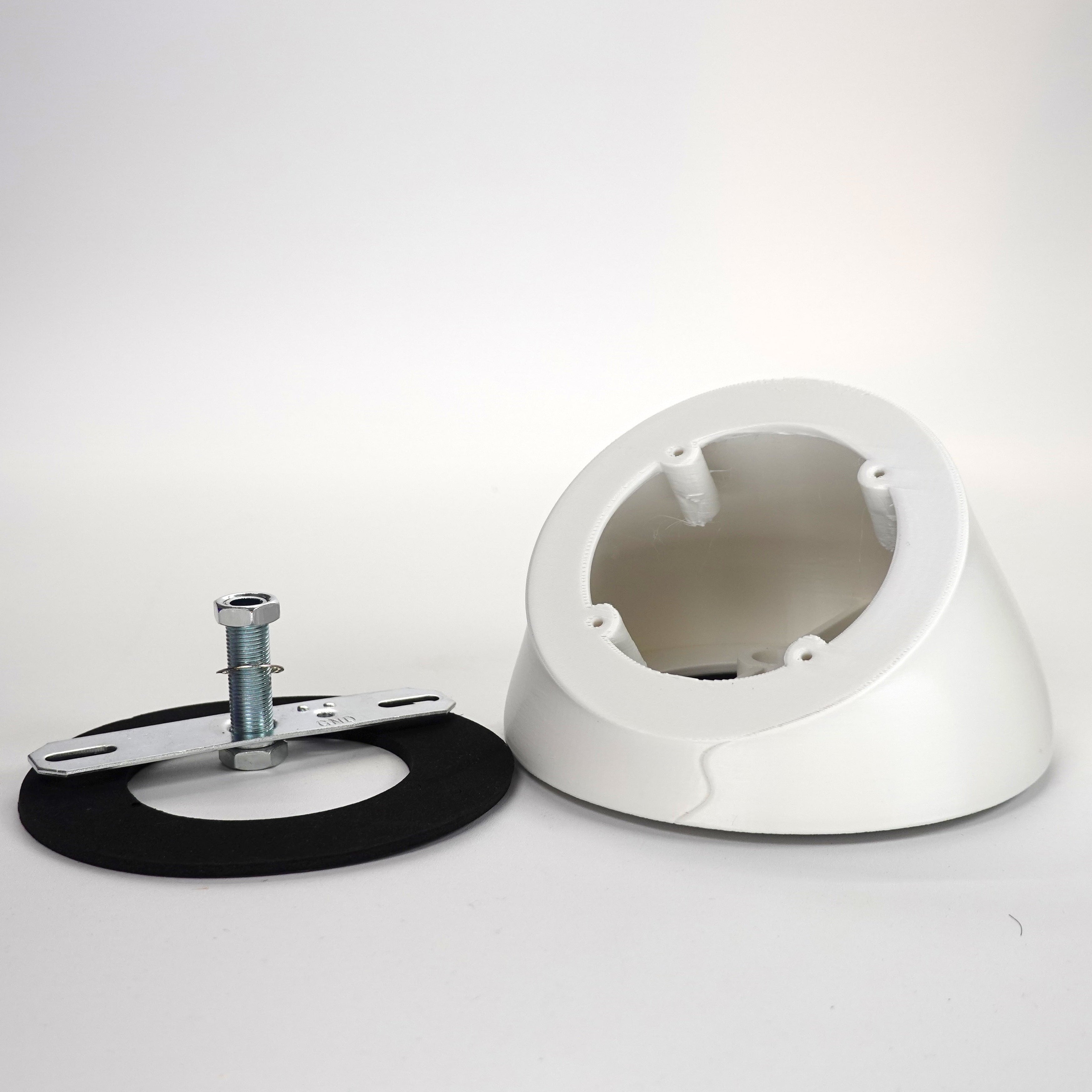

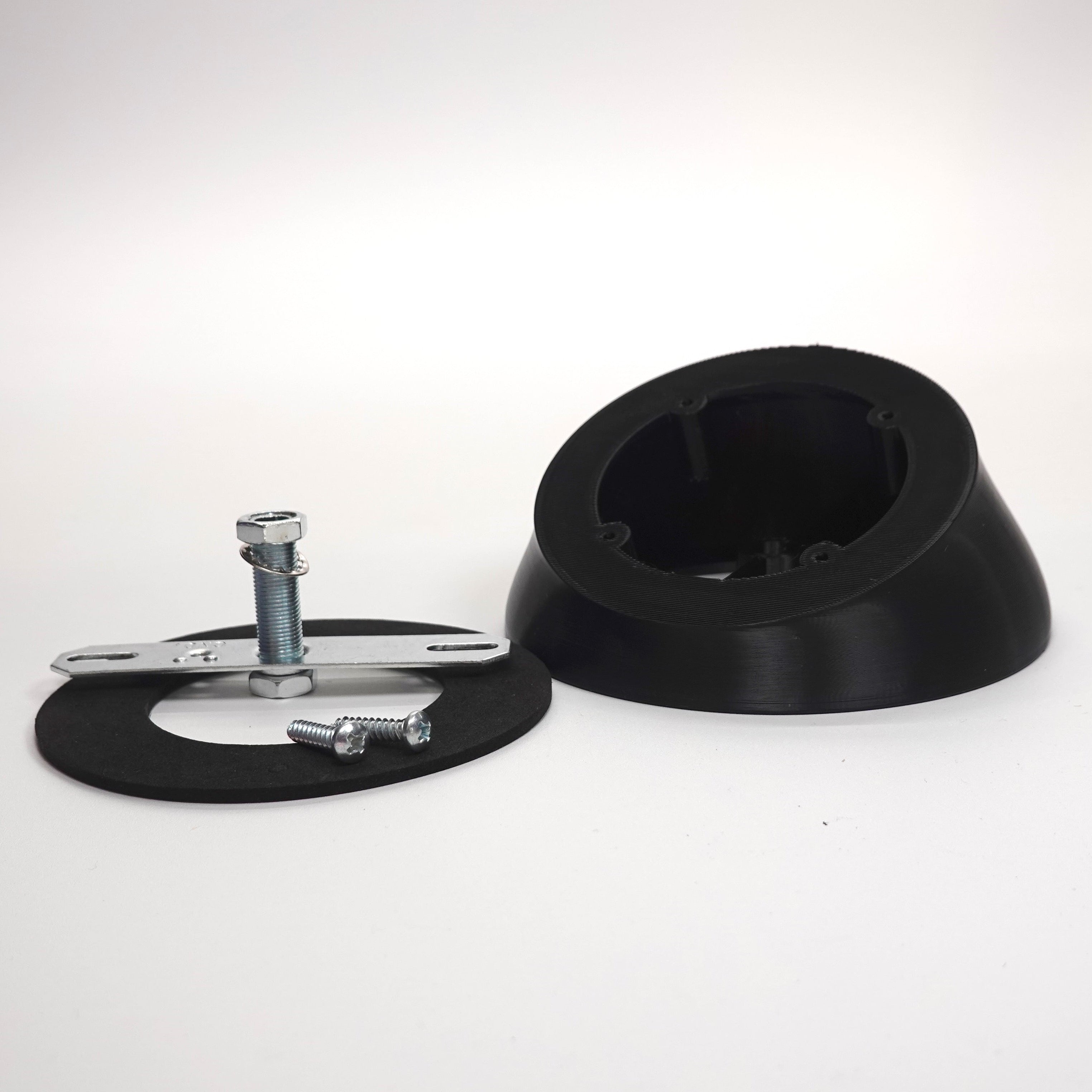

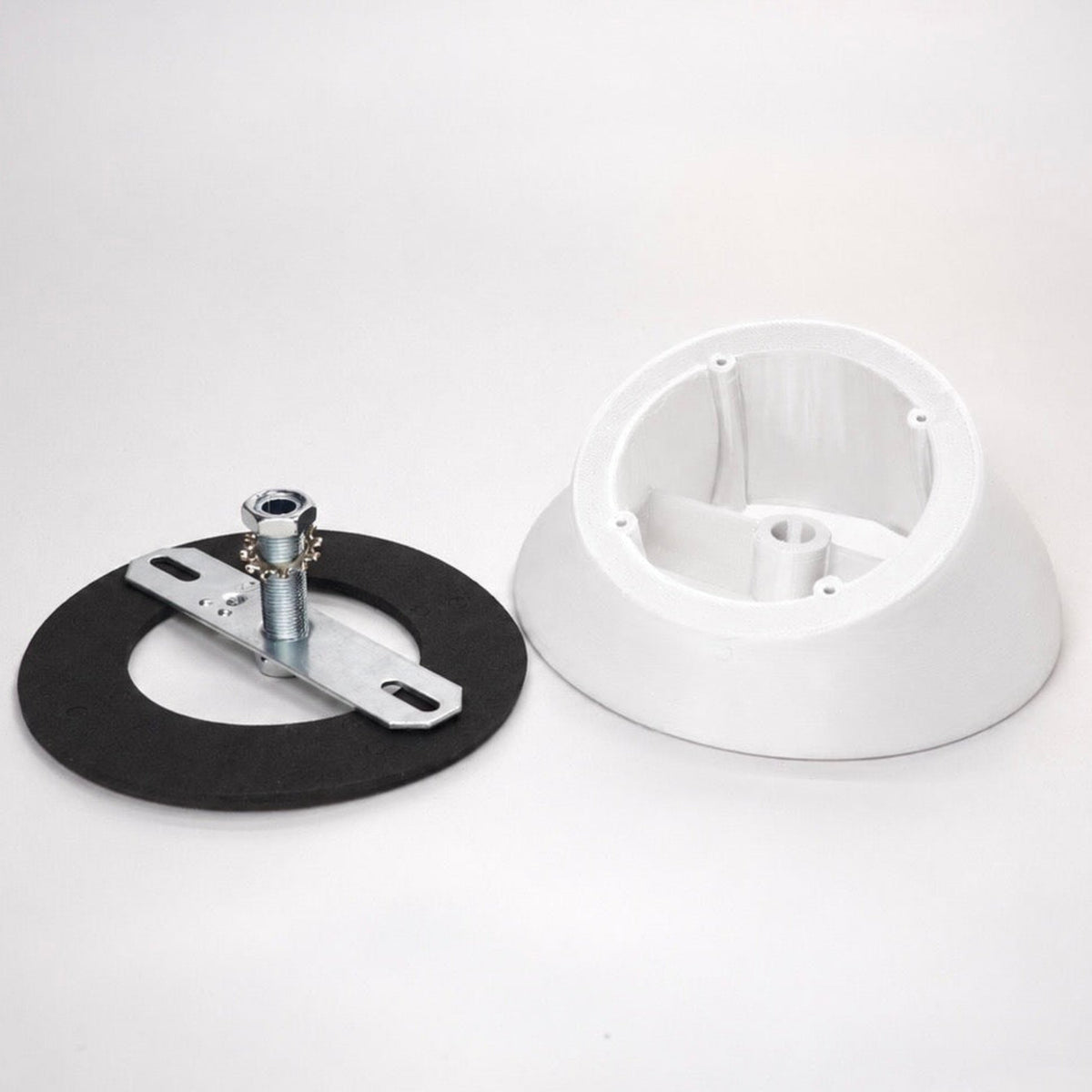

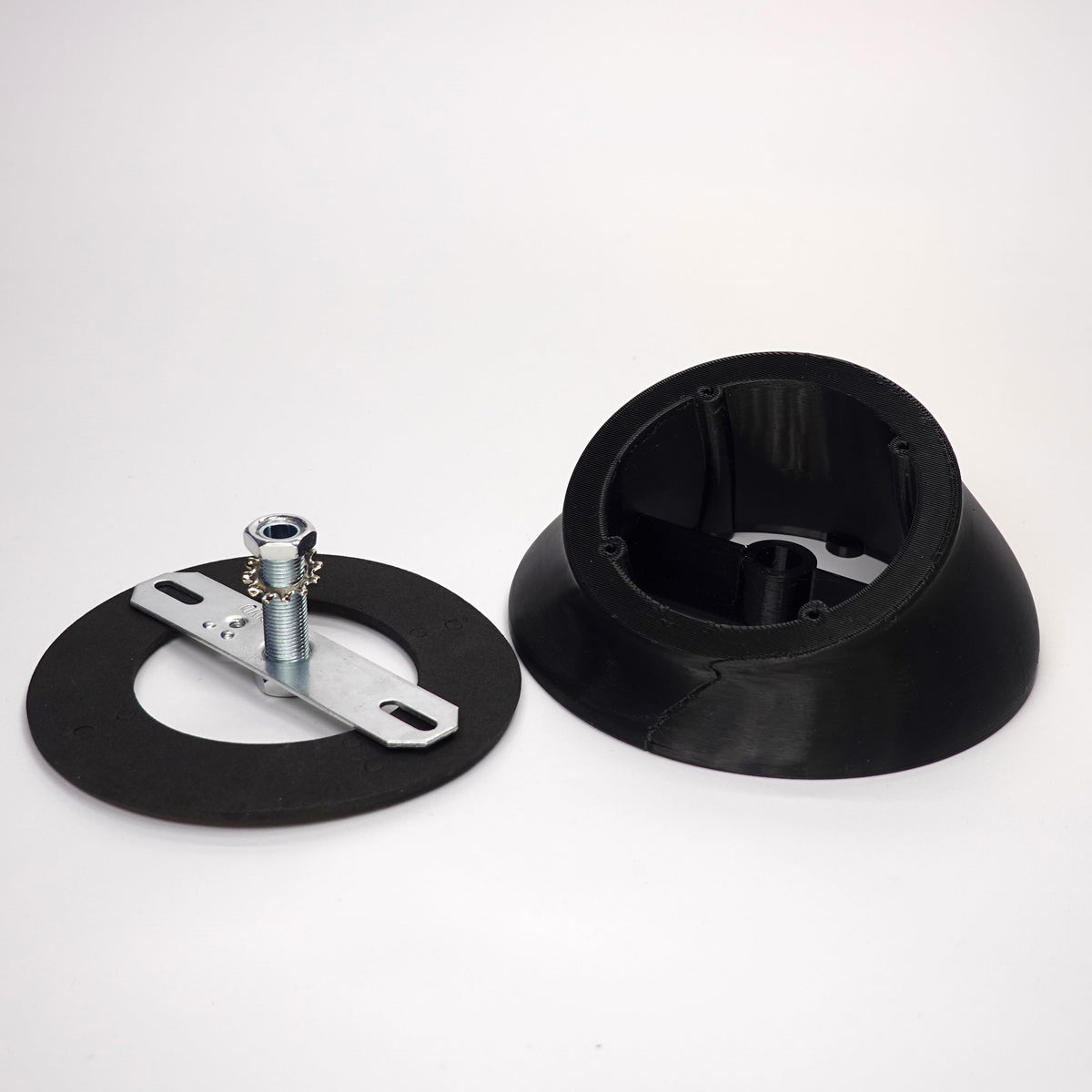

📦 In The Box
- One custom-angle UniFi G6 Turret soffit wedge
- One gasket
- One crossbar hardware set
🛠️ Ordering and Installation
- Measure the soffit slope with an angle finder.
- Enter a whole-number angle from 8 to 45 in the required Angle field.
- Install the gasket between the soffit and wedge.
- Install the crossbar and camera according to the camera manufacturer's instructions.
⚠️ Before You Order
- A missing angle or fractional angle will delay the order.
- Compatibility with earlier UniFi Turret generations is not confirmed.
- This item is made to order in your selected configuration. Please allow additional production time before shipment. Because production is specific to your selection, returns are not accepted.
- Cancellations cannot be accepted once production has begun.
