This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
eufy Floodlight Cam Soffit Drop Extension: E340 / S330
Regular price
$23.95
Regular price
-23%
$30.95
Sale price
$23.95
Couldn't load pickup availability

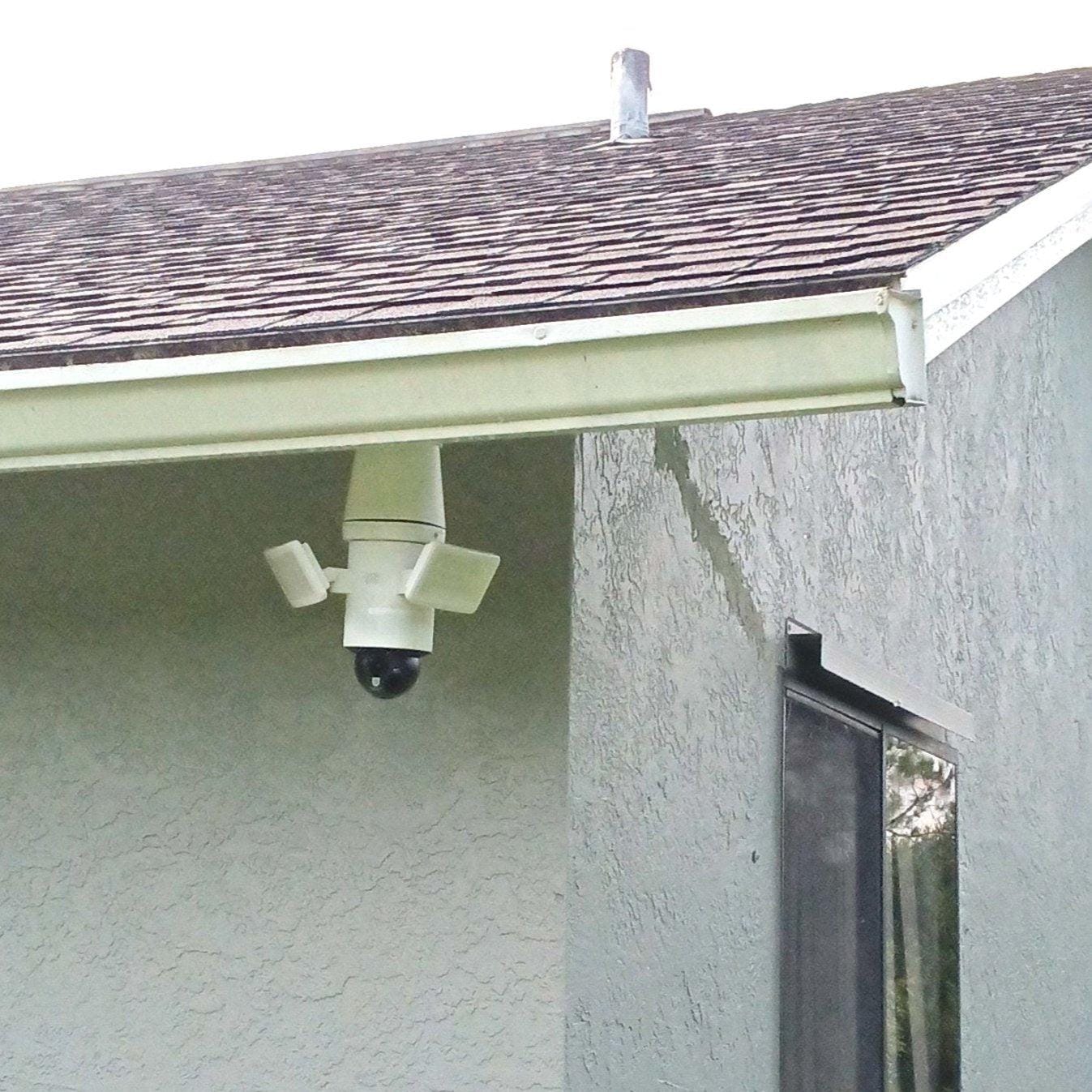

Lower Your eufy Floodlight Camera Below Soffit Obstructions
This soffit drop extension moves a compatible eufy floodlight camera below downspouts, trim, deep eaves, and other obstructions. Its rounded-square camera receiver is designed for the eufy Floodlight Camera E340 and S330.
🌟 Why Choose This Extension?

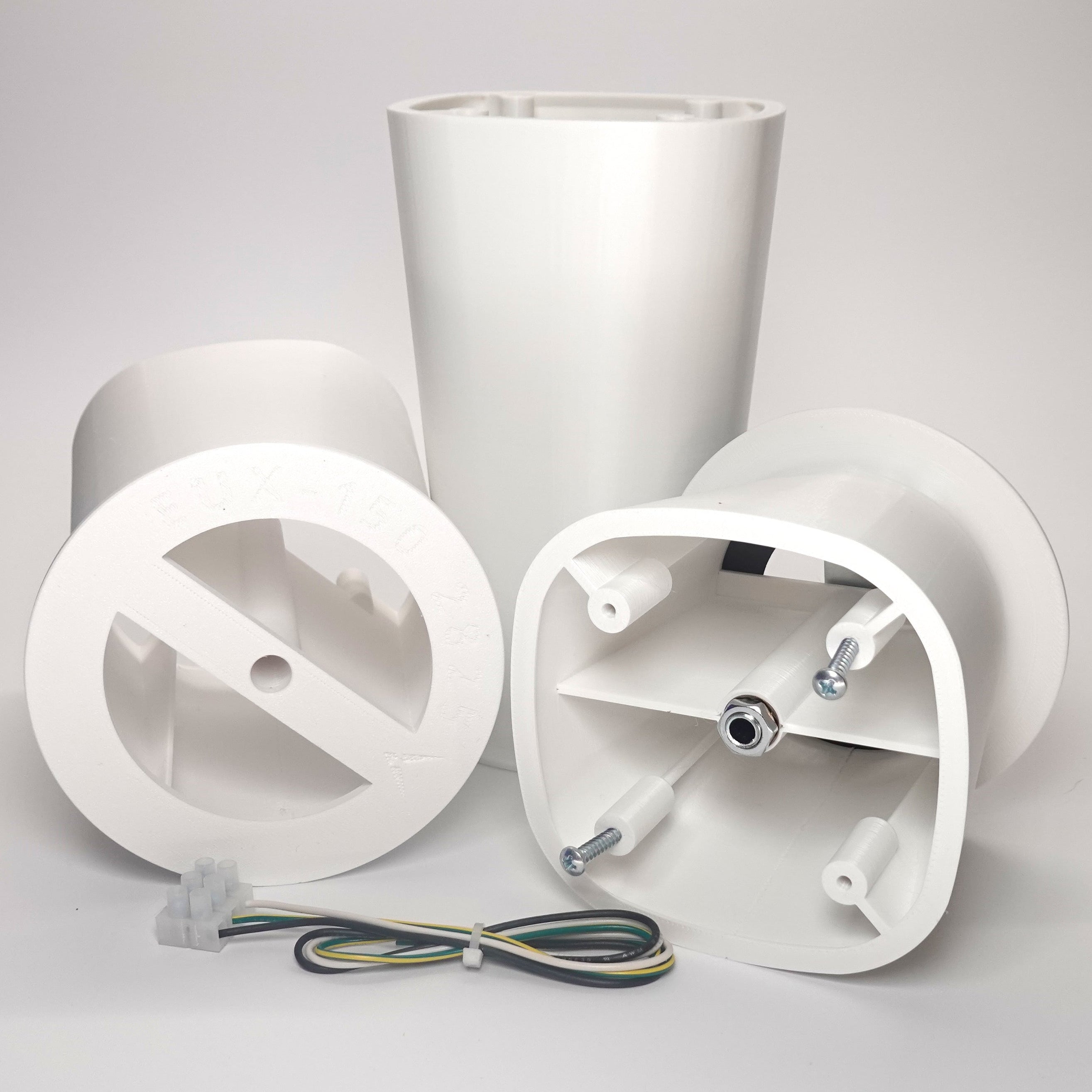

- Metal support through the extension: A steel lamp pipe runs from the junction-box crossbar to the top of the extension, where it is retained with a nut and washer.
- Camera-specific receiver: The rounded-square top matches the mounting interface used by the confirmed eufy models.
- Soffit-ready material: Printed in PETG for installations under the roof where direct UV exposure is reduced. The product template below provides the complete material disclosure.
📹 Verified Camera Compatibility
- eufy Floodlight Camera E340
- eufy Floodlight Camera S330
The metal support stops at the top of the extension; it does not connect directly to the camera base. This model does not use a coupling.
📐 Dimensions & Options
- Junction-box-side base: 127 mm (5 in) diameter

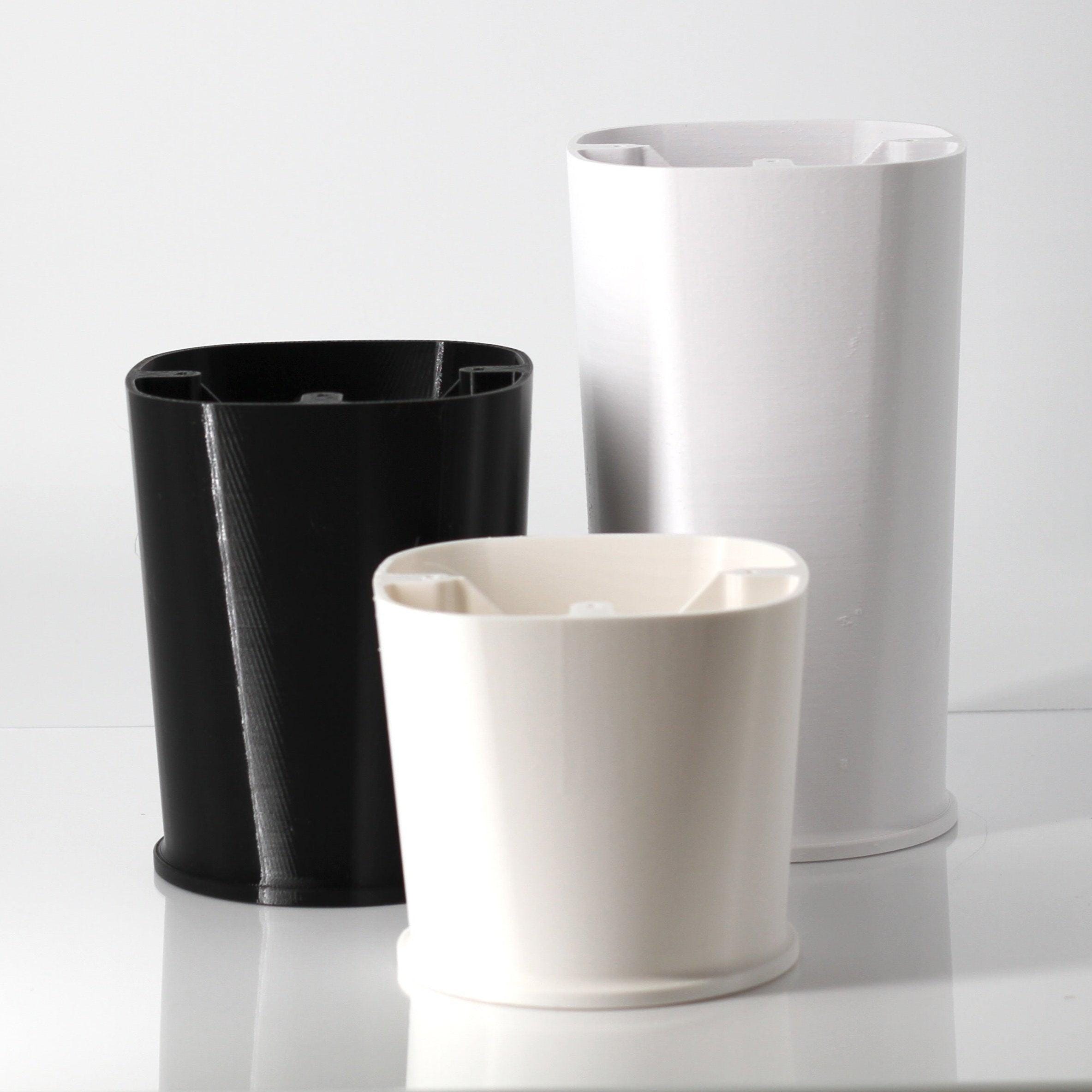

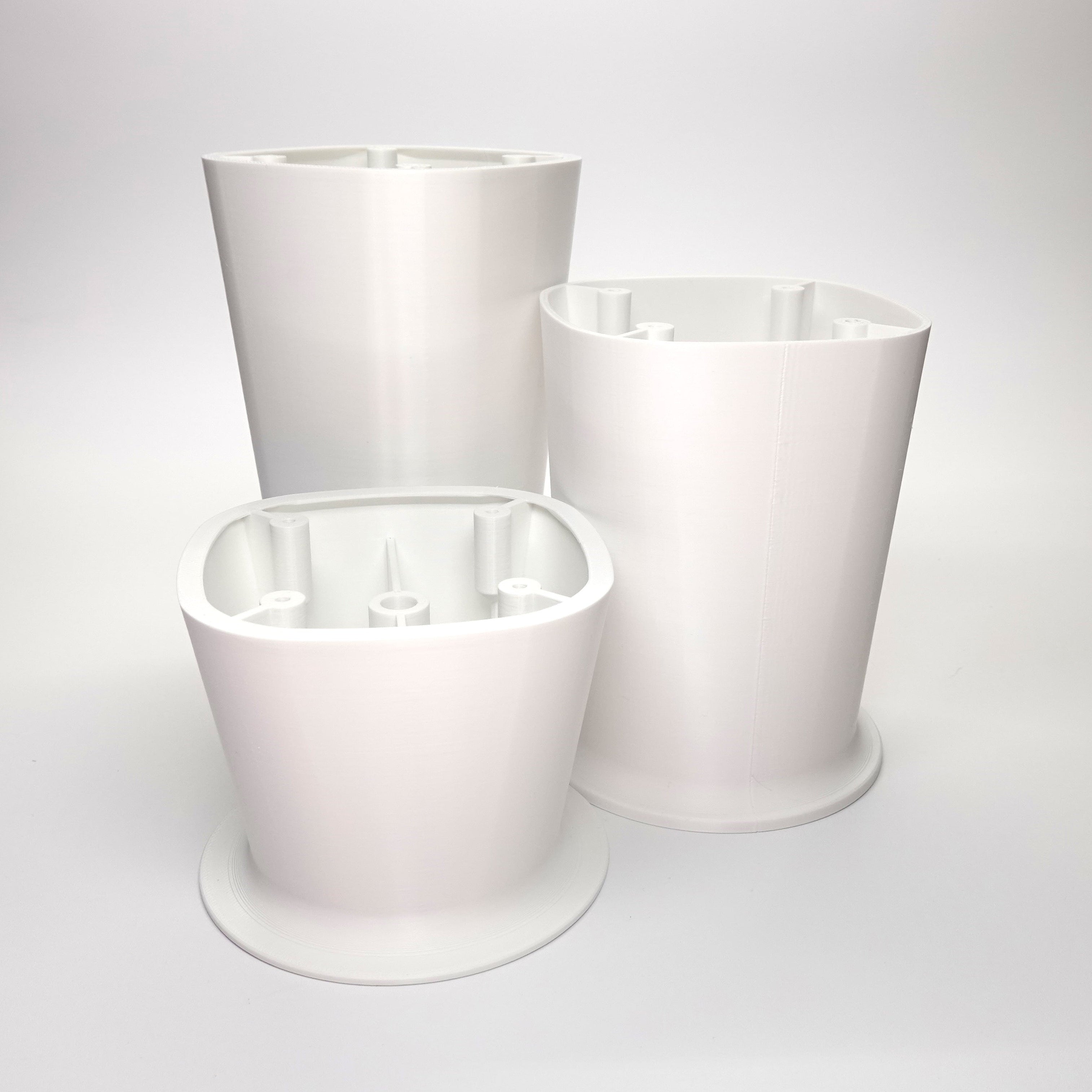

- Lengths: 50 mm (2 in), 100 mm (4 in), 150 mm (6 in), or 200 mm (8 in)
- Color: White

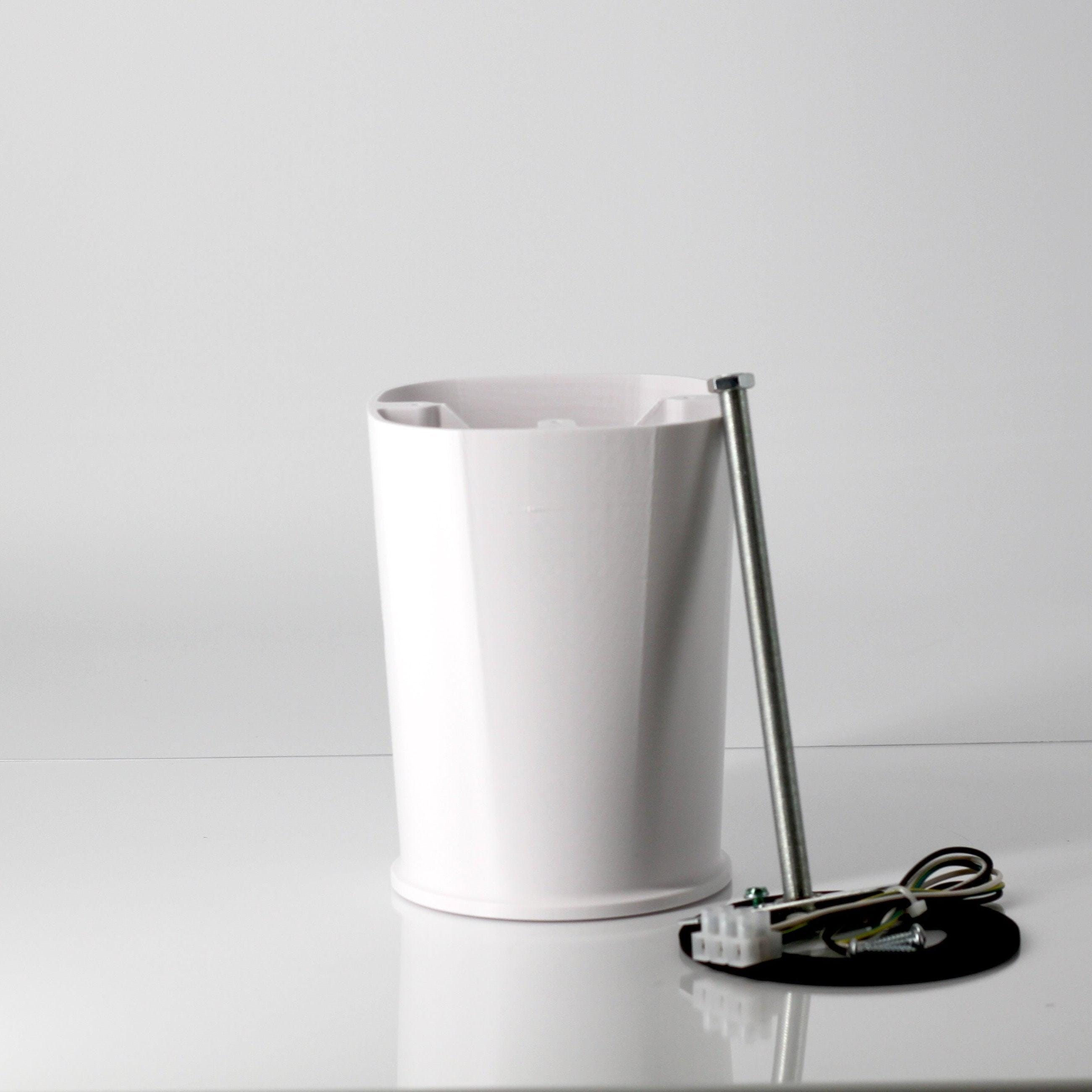

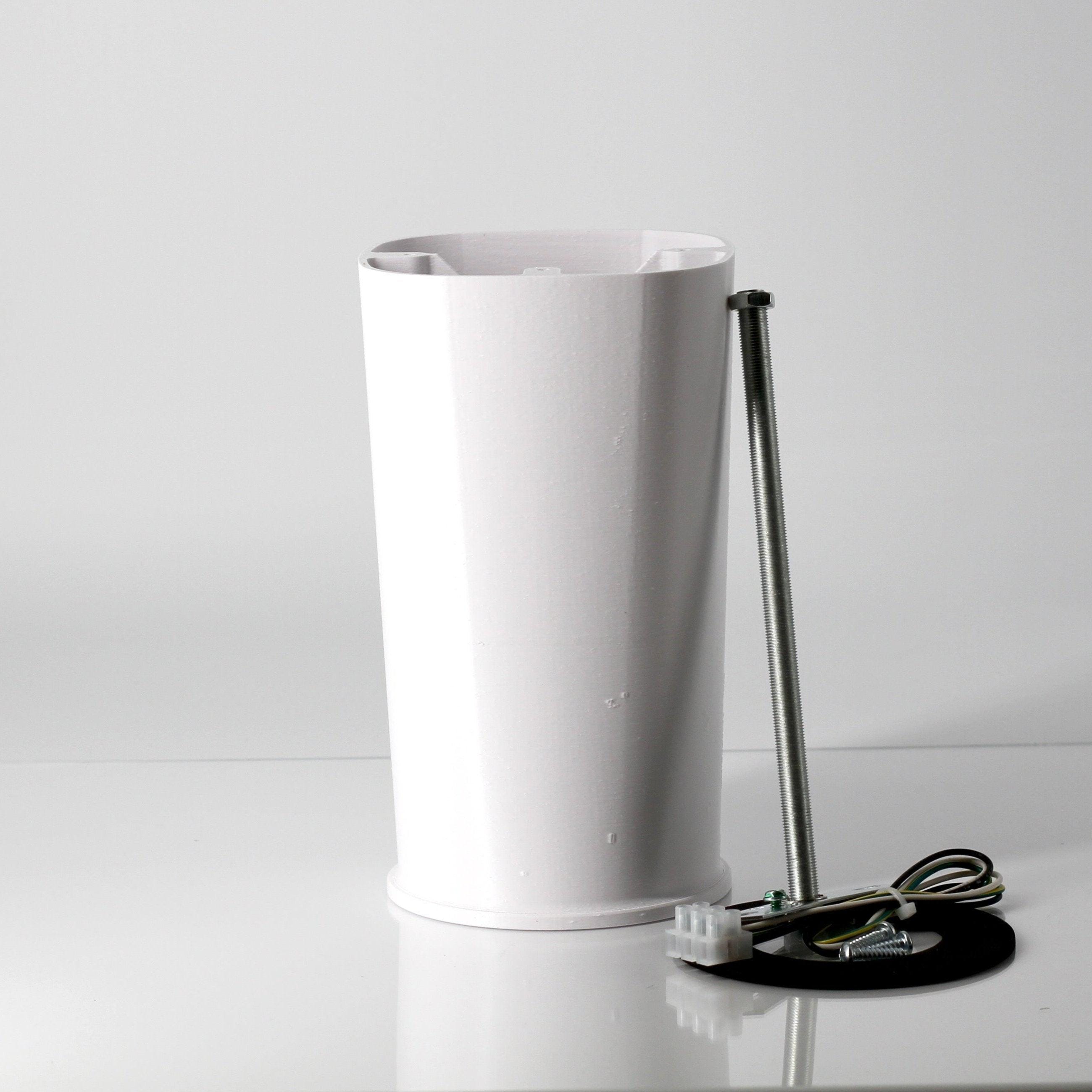

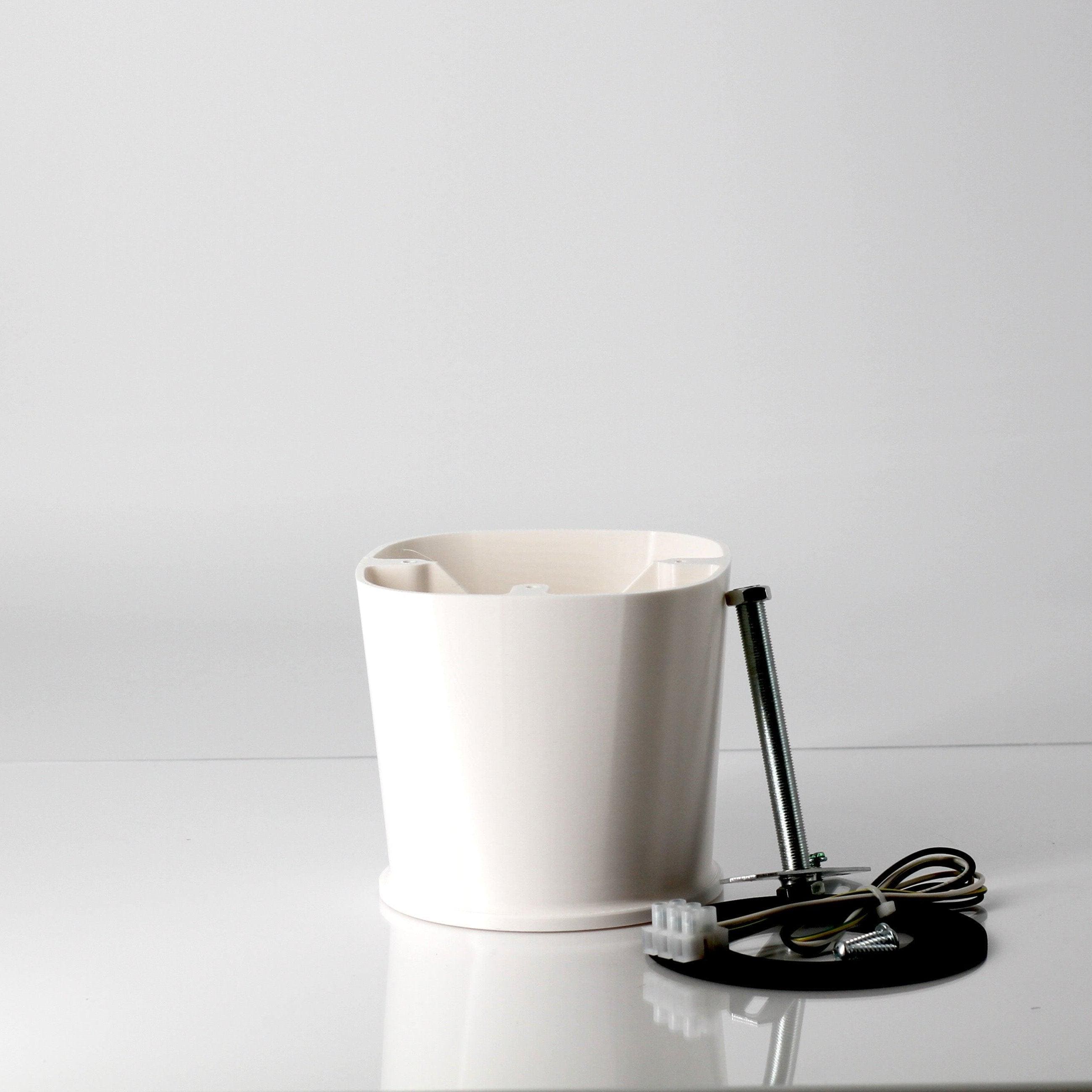

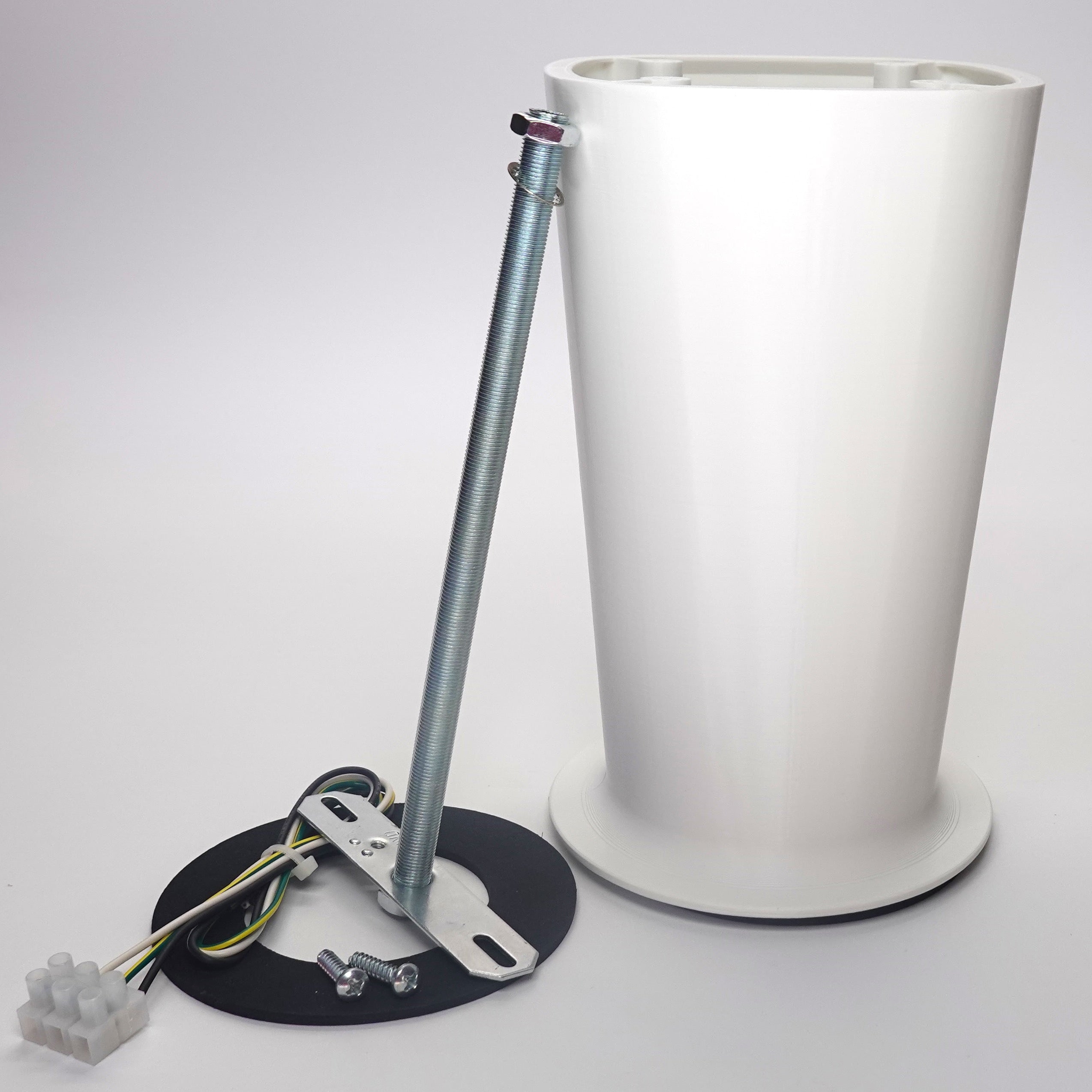

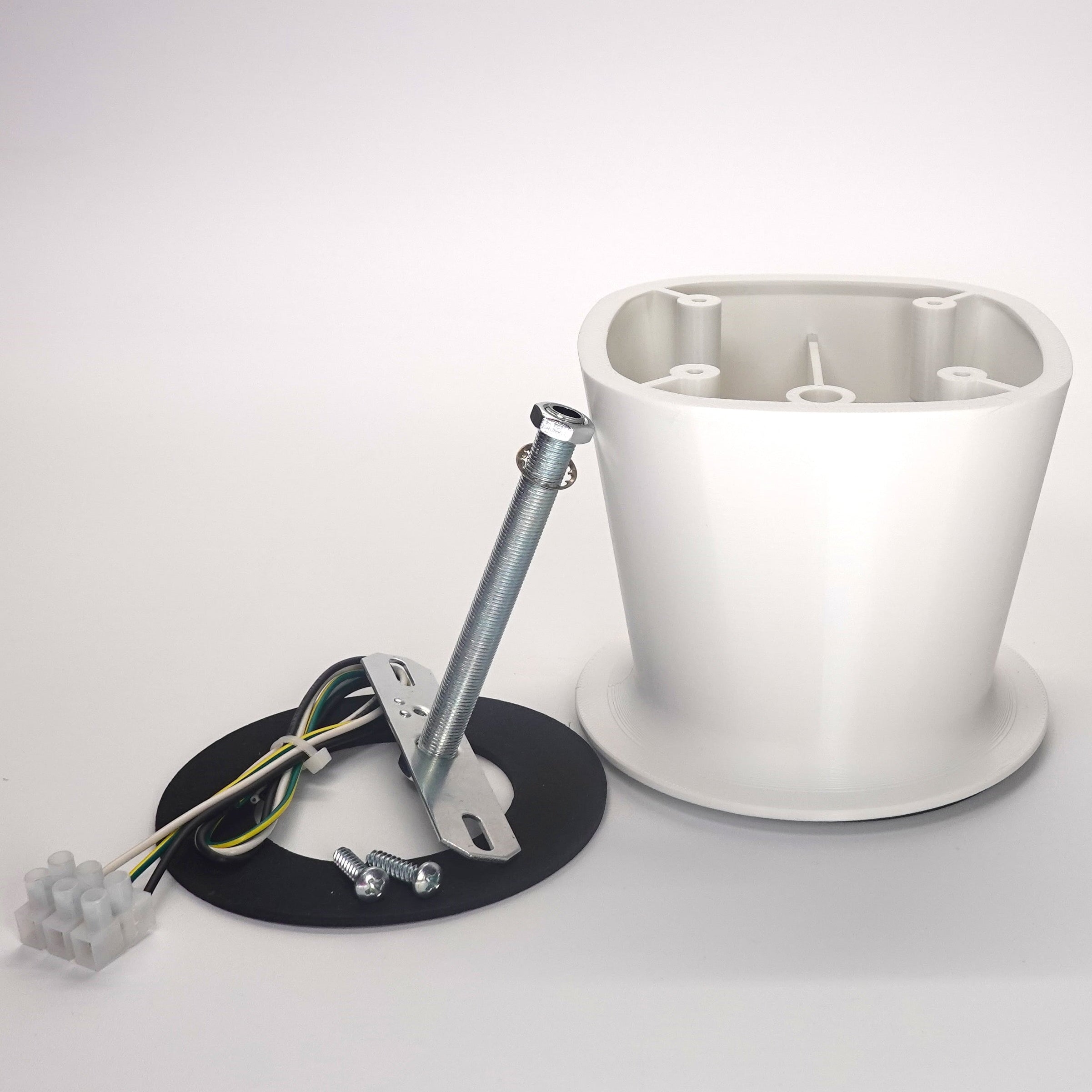

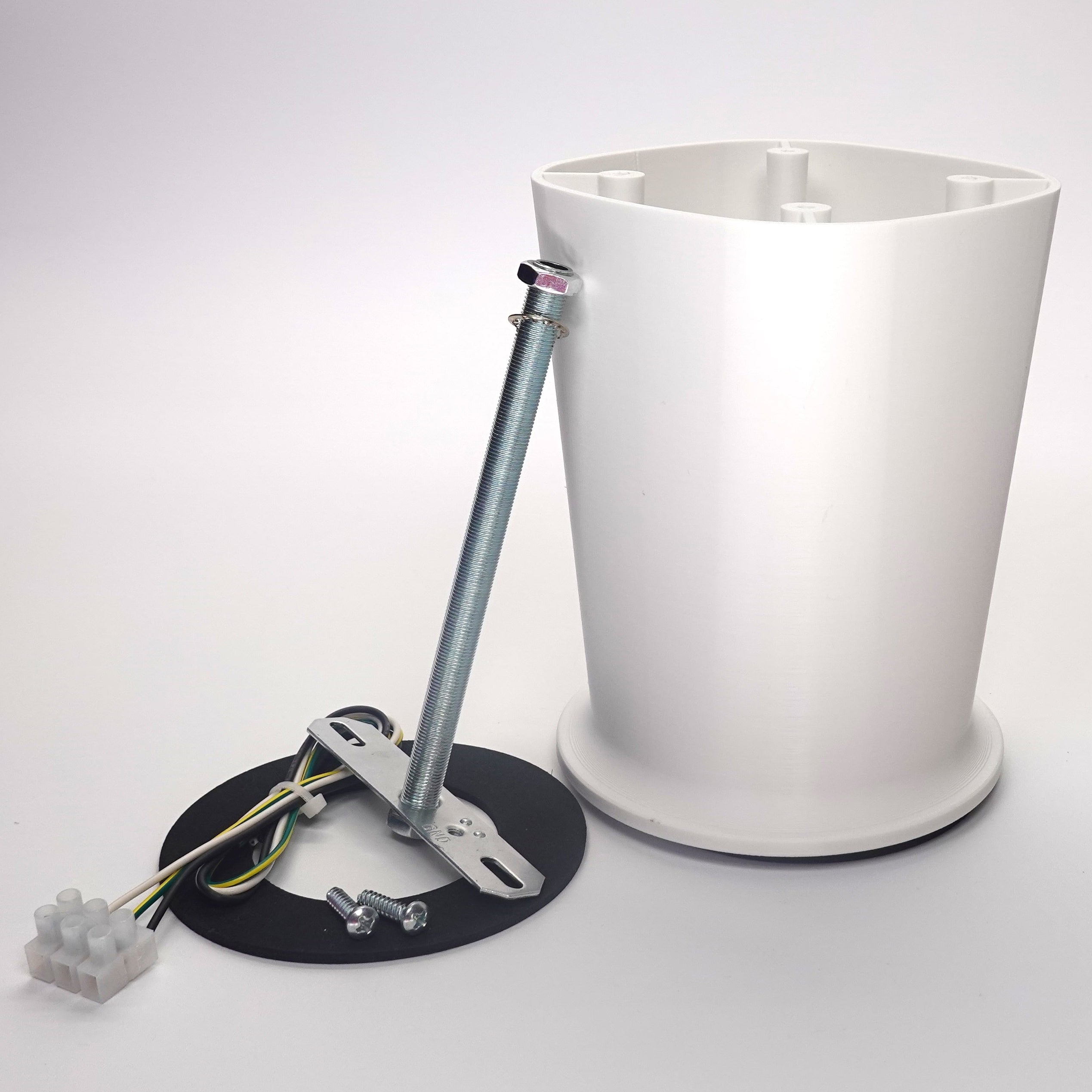

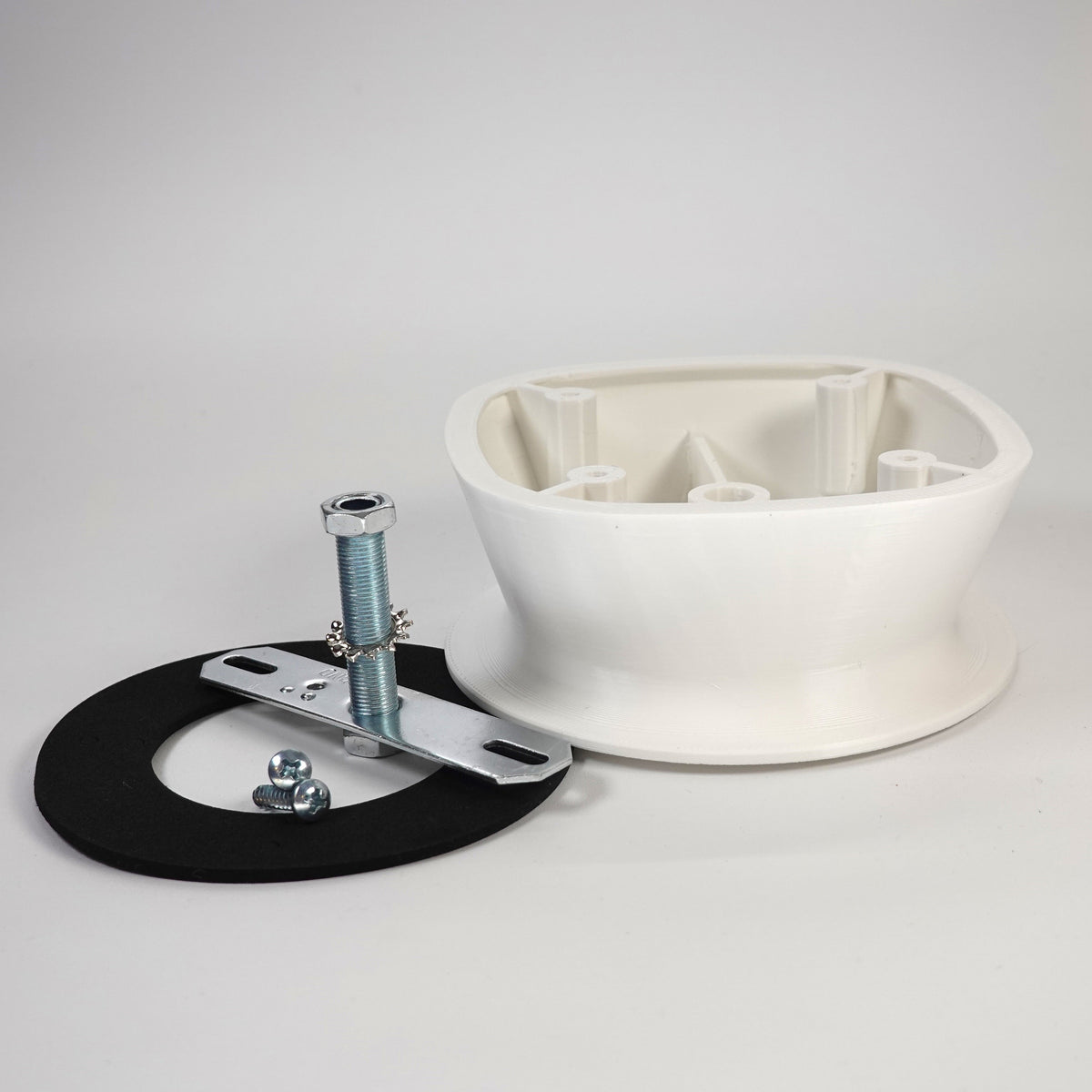

📦 In The Box
- 1 eufy soffit drop extension
- 1 steel lamp pipe with retaining nut and washer
- 1 crossbar installation hardware set
- 1 round weatherproof gasket
- Extension wires
- 1 terminal block
- 4 #8 × 3/4 in thread-forming screws
🛠️ Installation
Mount the crossbar to the junction box, install the gasket at the box side, and retain the lamp pipe at the top of the extension with the supplied nut and washer. Attach the camera's mounting hardware to the rounded-square receiver using the supplied thread-forming screws. Complete electrical connections and weather sealing according to the camera manufacturer's instructions and applicable electrical requirements.
⚠️ Made to Order — No Returns
This item is made to order in your selected configuration. Please allow additional production time before shipment. Because production is specific to your selection, returns are not accepted. Cancellations cannot be accepted once production has begun.
D
White / 100

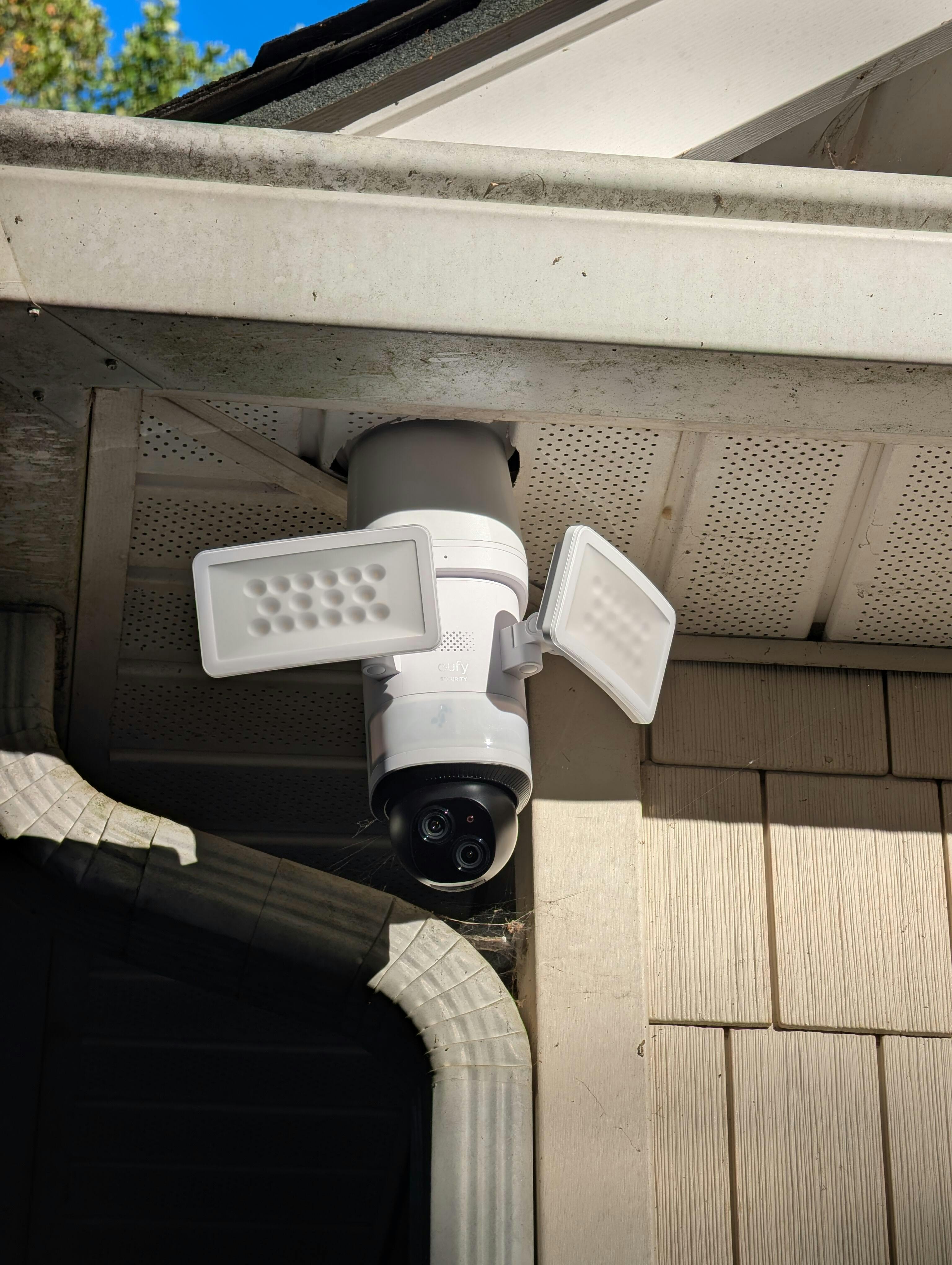

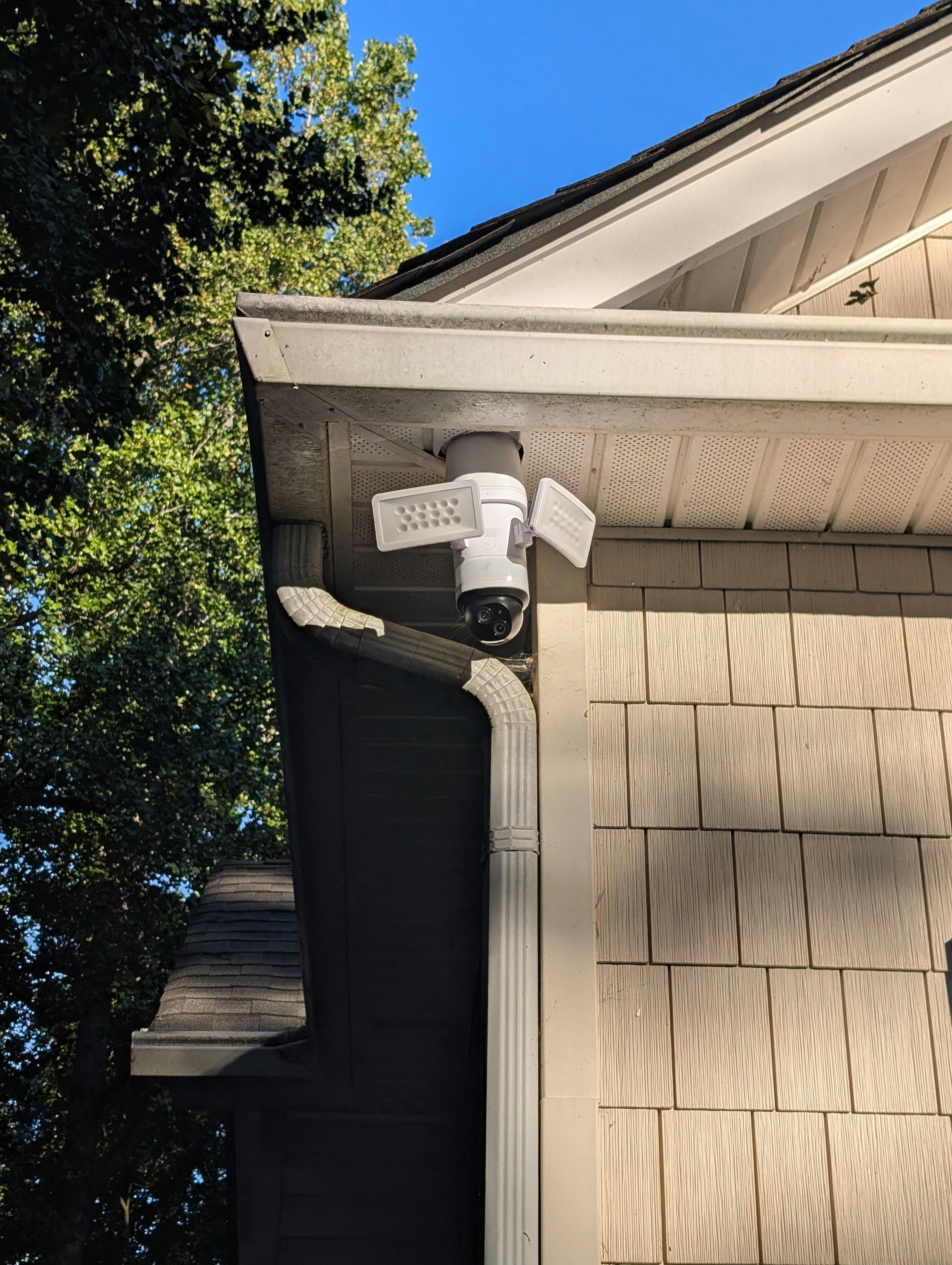

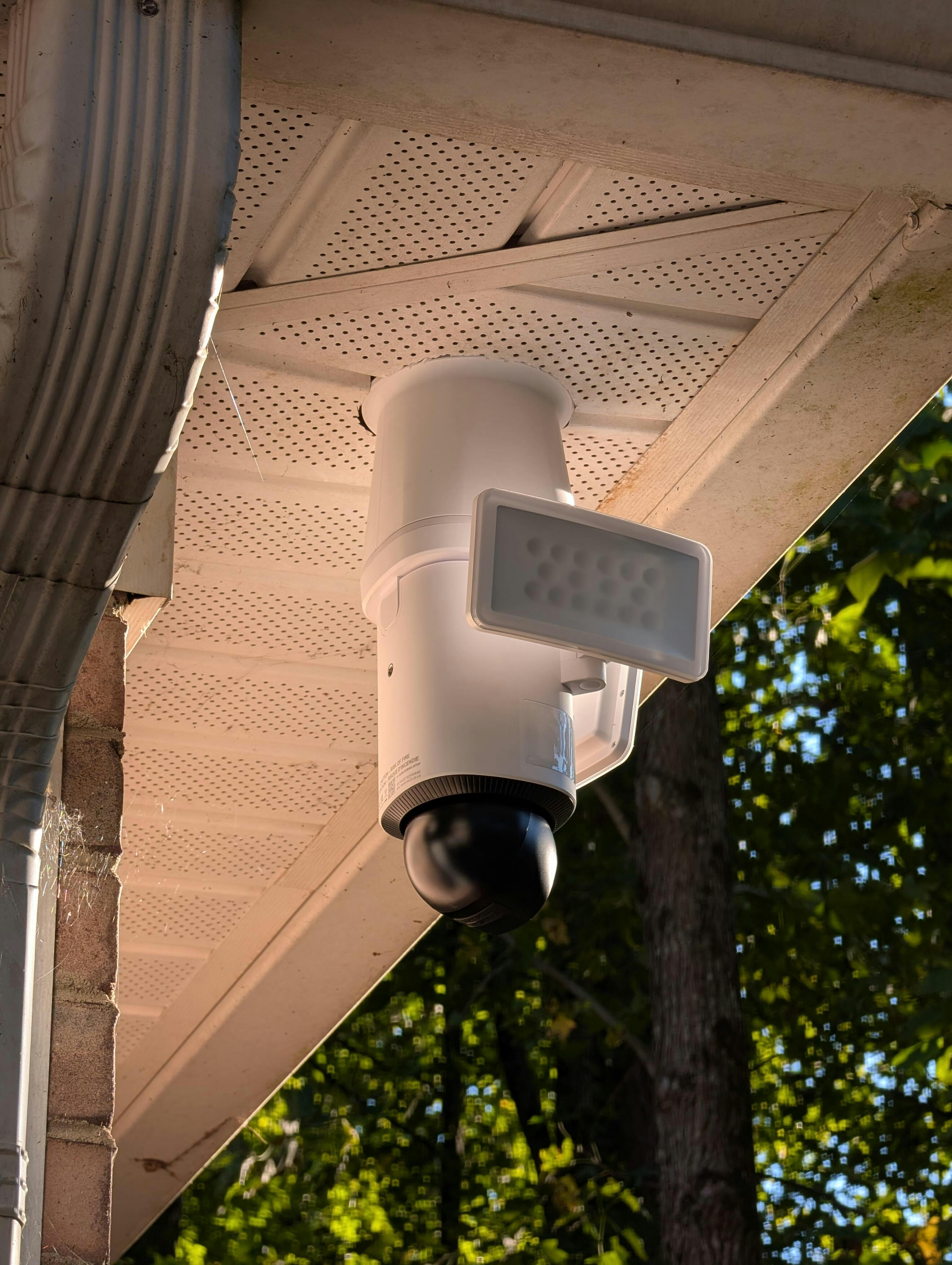

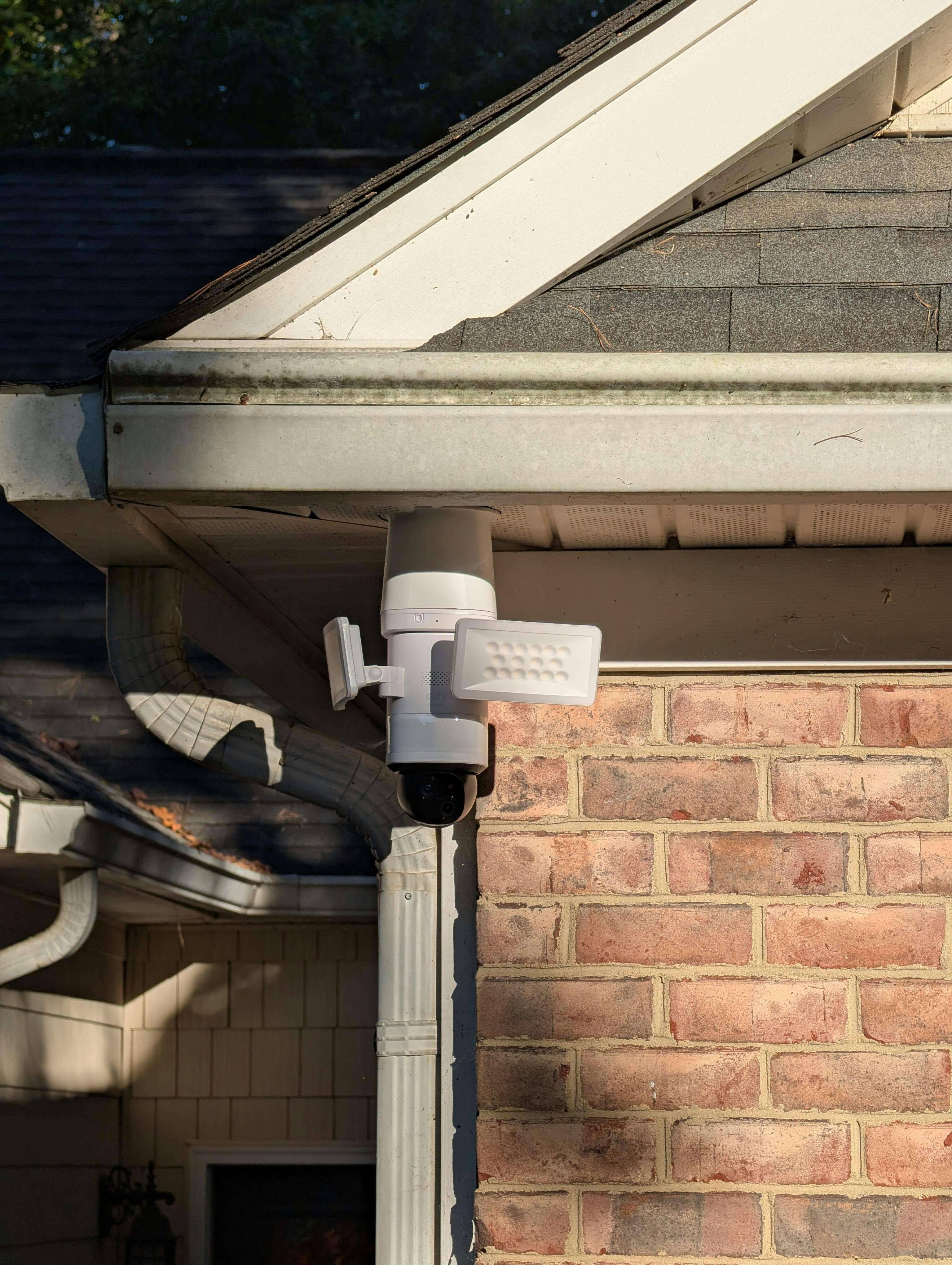

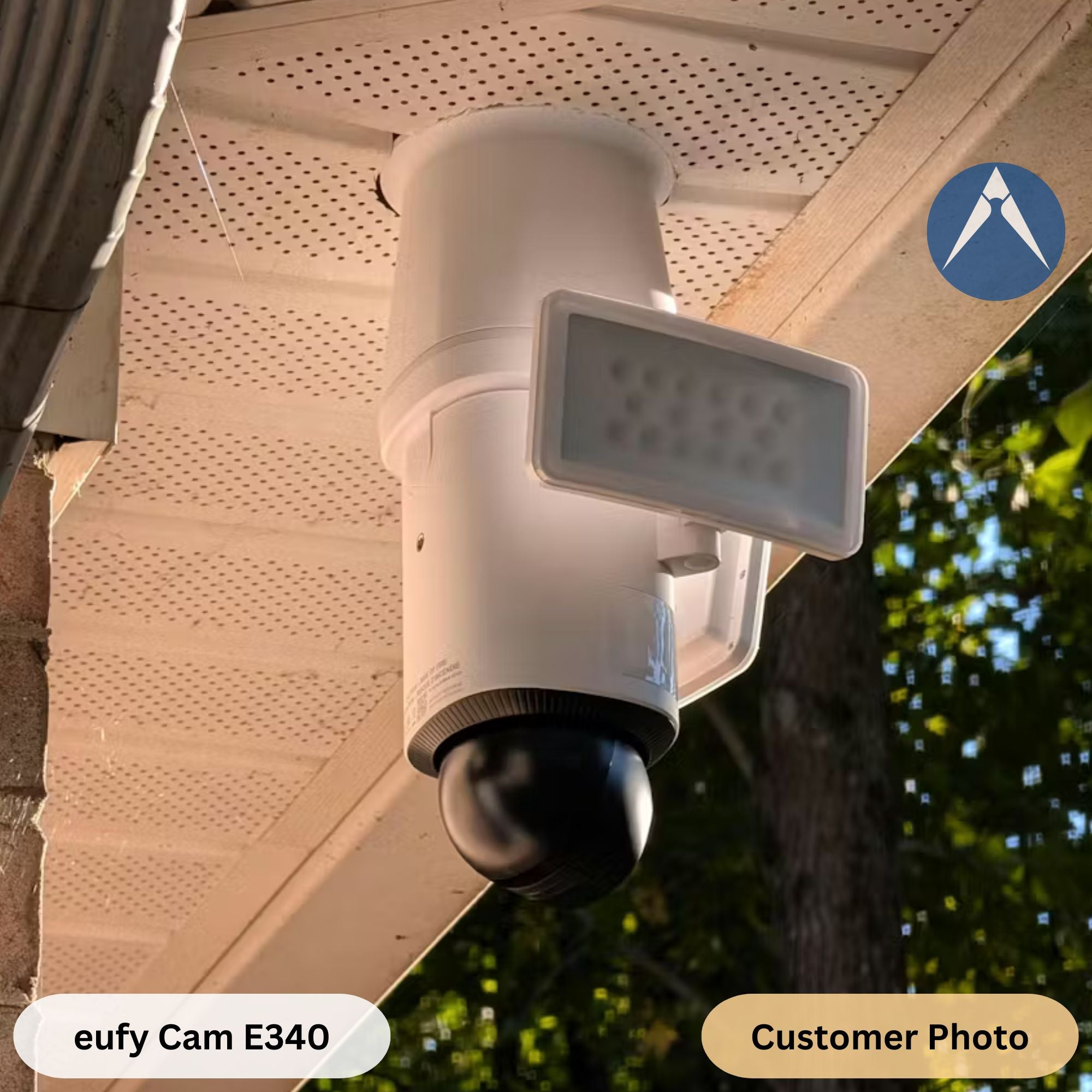

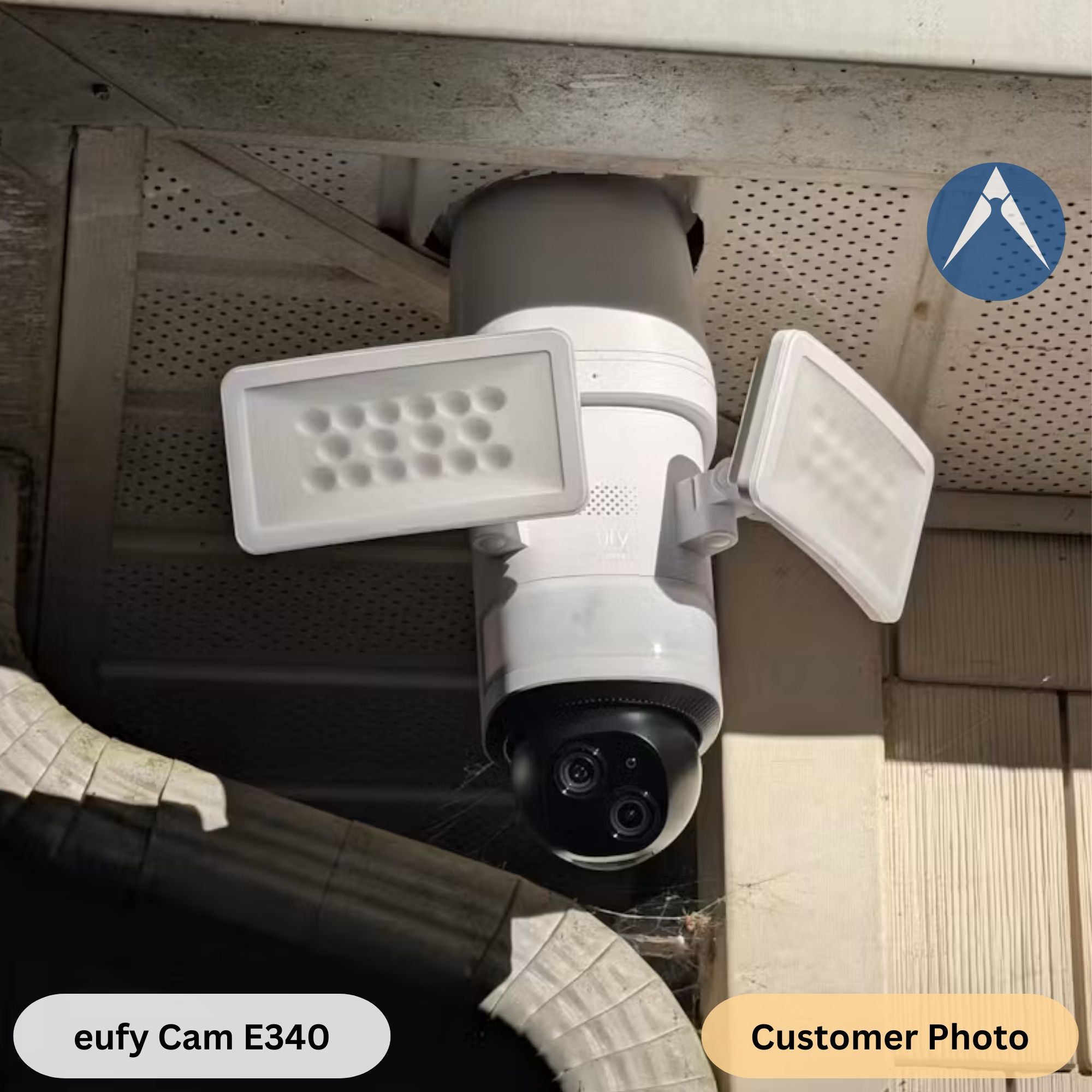

I bought this E340 Floodlight extension as I have smaller than normal junction boxes under vinyl soffits that are also somewhat recessed 1/2 to 1 inch. The cameras were too close to the soffit that prevented the lights from moving freely and glare at night reflected off the soffit making things hard to see. Also the floodlight cameras were either crooked or not supported correctly by my junction boxes, so I bought these extensions to hopefully fix the problem. They pretty much did in the end.
By purchasing this extension, you receive a solid piece of white 3D round pipe-like support that matches the color of the E340 cameras. It is well made and nicely supports the camera. For those who don't use the metric system (those of us in the US), 100 mm is about 4 inches, 150 mm is 6 inches, and 200 mm is 8 inches. I would have liked a 50 mm or 2 inch option since it would have been a better look and fit for my camera placement, but the 100 mm worked nicely.
The extension comes with a support bar that is similar to what you get with interior lights, which is why I bought it. It allows various spacing of support screws with a junction box and my smaller box was easy to connect. There is a round metal bar that goes up the middle of the extension and connects it to the bar with nuts on each end. You get a foam gasket to seal between the extension and the junction box. There is also some additional stranded wires (one black, white, and green) you can use to extend the wiring through the extension. I wish the wires had been about 1 to 2 inches longer so I could put them through the center bar and make it look nice and neat. Two wire connectors with 3 screws each were supplied to connect between the camera and the wire extensions. I ended up using WAGO connectors instead (they are much easier to work with connecting solid and stranded wiring).
There are only two small cons I have with this product. You are supposed to get 2 self-tapping screws with each extension in order to properly screw the camera to it. I received zero screws with the 2 extensions I ordered. Support was quick and responded that they had some new help that apparently forgot to include them. The screws needed are cheap and I already had them on hand. But for the price of these things, I expected all the parts to be included. Also, a green ground screw was not included. Support told me it was not needed due to the nature of the plastic 3D model, but I still connected one to be safe (and their pictures show the green ground screen with the bar). The support bar is made of metal, so I took no chances.
Overall, the extensions did improve the look of the floodlight camera and made the install much easier to do on my weird junction boxes with weak vinyl soffits. If I ever change the cameras to something else, these extensions look like they would work better for other lights/cameras since they create a standard 4 inch junction box on the bottom. I just hope they last a long time with weather fluctuations (and by not yellowing with sunlight). Only time will tell.
A
White / 100
Great product when needing soffit extension for your Eufy Floodlight Camera. Also, you are provided with good customer service. Thank you, this solved our problem.
E
As described and quick delivery
J
White / 200
The owner Alex Cua is truly a special person. Initially I purchased 90-degree soffit mounts for my two Eufy cameras. Once my package arrived, I noticed that it simply was not at the right angle to fully capture the front and rear of my yard. After emailing Alex, he immediately understood my issue and exactly what I was trying to accomplish regarding the angles of my camera. He actually called me and went over what I needed to do in order to help him produce the best product for my soffit angle and cameras. He refunded me for the unnecessary items I purchased and provided me exactly what I needed.
I highly recommend Alecactly in order to provide you with best product to properly install your security cameras. Mr. Cua, thank you for your patience and understanding of my needs and providing me with a reliable product.
Jerry B- Naples FL
