This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
eve Outdoor Cam Dual Soffit Mount
Regular price
$48.95
Regular price
-4%
$50.95
Sale price
$48.95
Couldn't load pickup availability
Mount Two eve Outdoor Cams Under One Soffit Location
This dual soffit mount converts a horizontal soffit into two vertical camera-mounting surfaces positioned 180 degrees apart. It installs directly over a standard 4-inch junction box with 3.5-inch crossbar screw spacing and supports two eve Outdoor Cams without separate Eve Adapter Plates.
🌟 Why Choose This Mount?
- Opposing camera positions: Two 102 mm (4 in) round interfaces place compatible cameras 180 degrees apart.
- Direct junction-box installation: The 127 mm (5 in) box side mounts through the included crossbar hardware.
- Full-length metal support: Steel lamp-pipe support carries the installed loads through the 203 mm (8 in) mount.
📹 Verified Camera Compatibility
- Two eve Outdoor Cams using the 102 mm (4 in) round mounting interface
No distinct second-generation mounting interface has been confirmed. Compare each camera's mounting interface with the listing images before ordering.
🔩 Junction-Box Compatibility
- Standard 4-inch junction box with 3.5-inch crossbar screw spacing
📐 Specifications
- Box-side diameter: 127 mm (5 in)
- Camera-side diameter: Two 102 mm (4 in) round interfaces
- Height: 203 mm (8 in)
- Camera orientation: 180 degrees apart
- Colors: Black or white

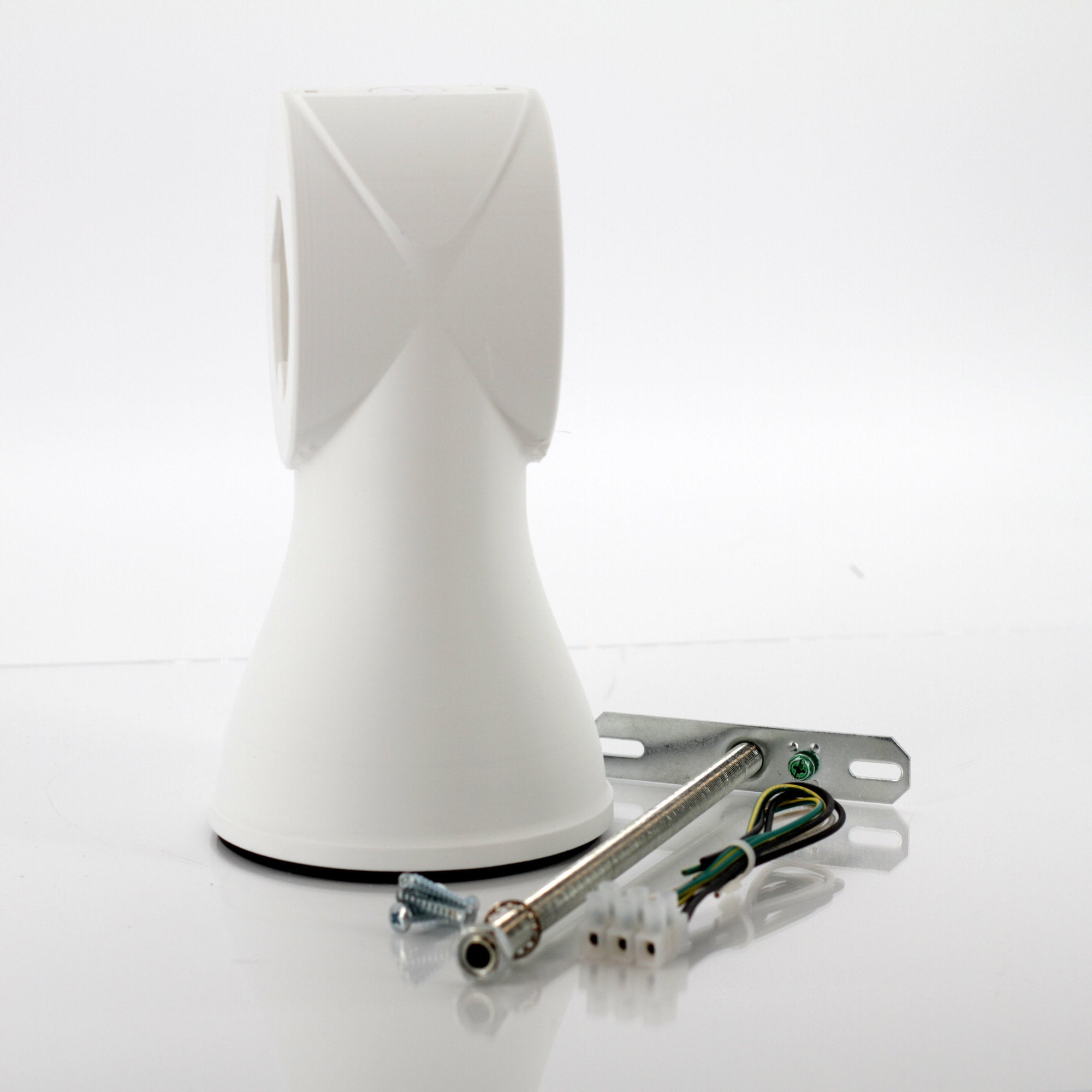

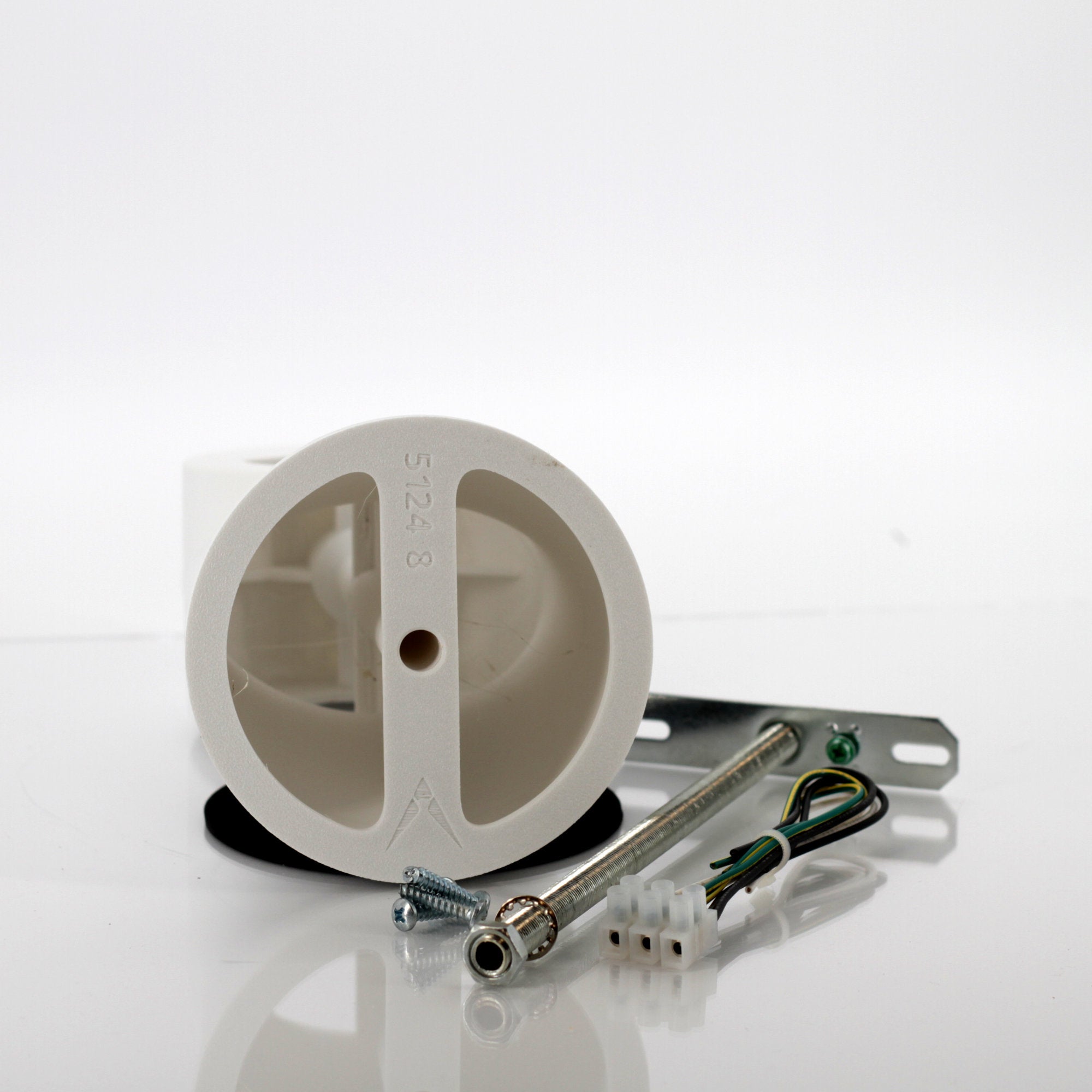

📦 In The Box
- 1 eve Outdoor Cam dual soffit mount
- Full-length steel lamp-pipe support and crossbar installation hardware
- 1 round weatherproof gasket
- 4 #8 × 3/4 in thread-forming screws
- Extension wires
- 1 terminal block
Cameras and electrical junction box are not included. Separate Eve Adapter Plates are not required.
🛠️ Installation
Mount the crossbar to the junction box, place the gasket at the box side, and secure the assembly through the metal support. Attach each camera to its 102 mm round interface using the supplied thread-forming screws. Complete electrical connections and weather sealing according to the camera manufacturer's instructions and applicable electrical requirements. Both eve Outdoor Cams must remain in the upright orientation specified by Eve.
🧩 Compatible Alexactly Accessories
- Reinforced soffit wedge for angled soffits
- 127 mm junction-box covers for exposed boxes
- Universal soffit drop extension when additional clearance is needed
A dedicated 14-inch eve version was designed but never produced; use the compatible universal soffit drop extension when additional drop is required.
⚠️ Made to Order — No Returns
This item is made to order in your selected configuration. Please allow additional production time before shipment. Because production is specific to your selection, returns are not accepted. Cancellations cannot be accepted once production has begun.
