eve Outdoor Cam Single Soffit Mount with Soffit Drop Extension

Only 1 left
SKU: EVE90x14W
(0)
$85.95
Color

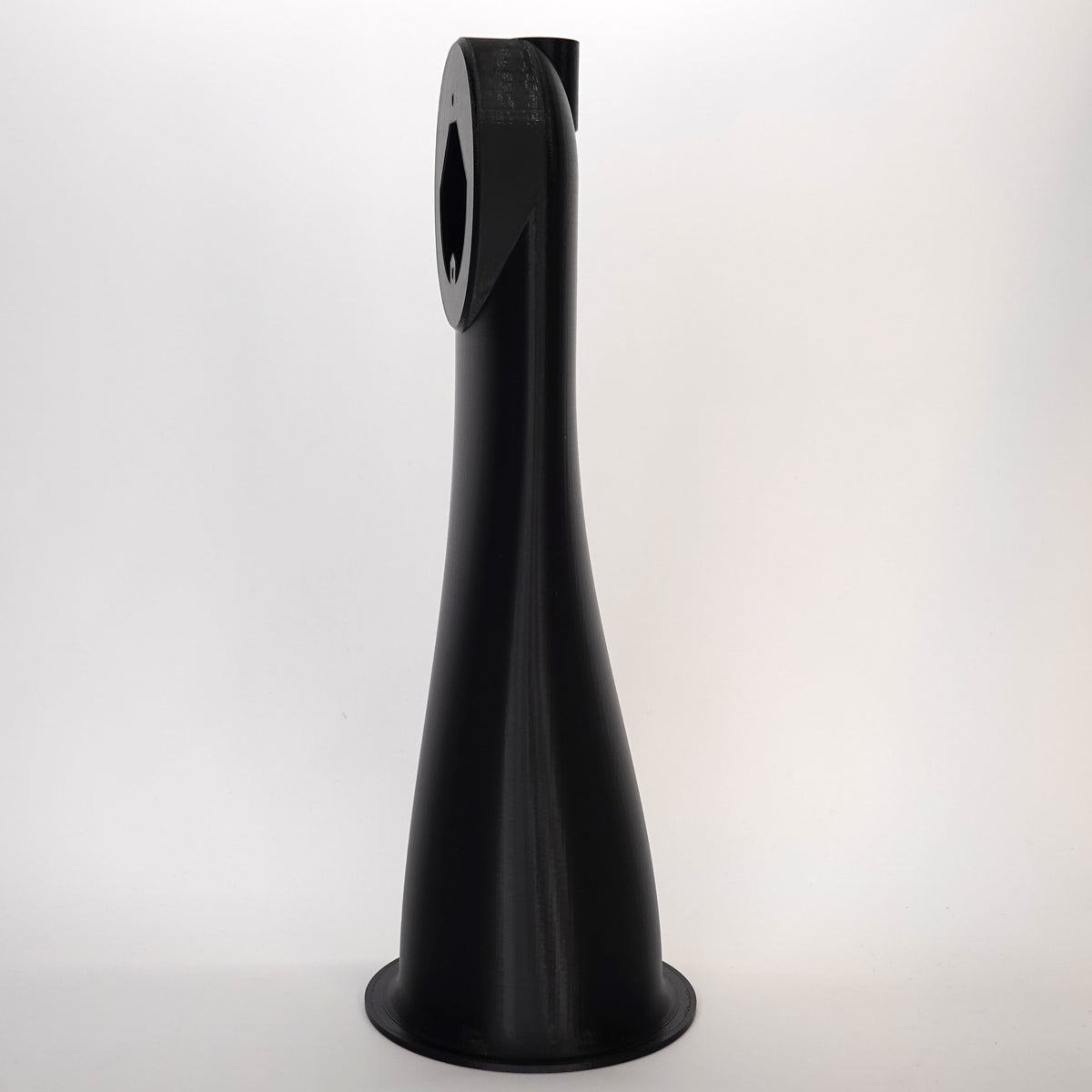

Mount an eve Outdoor Cam Under a Soffit

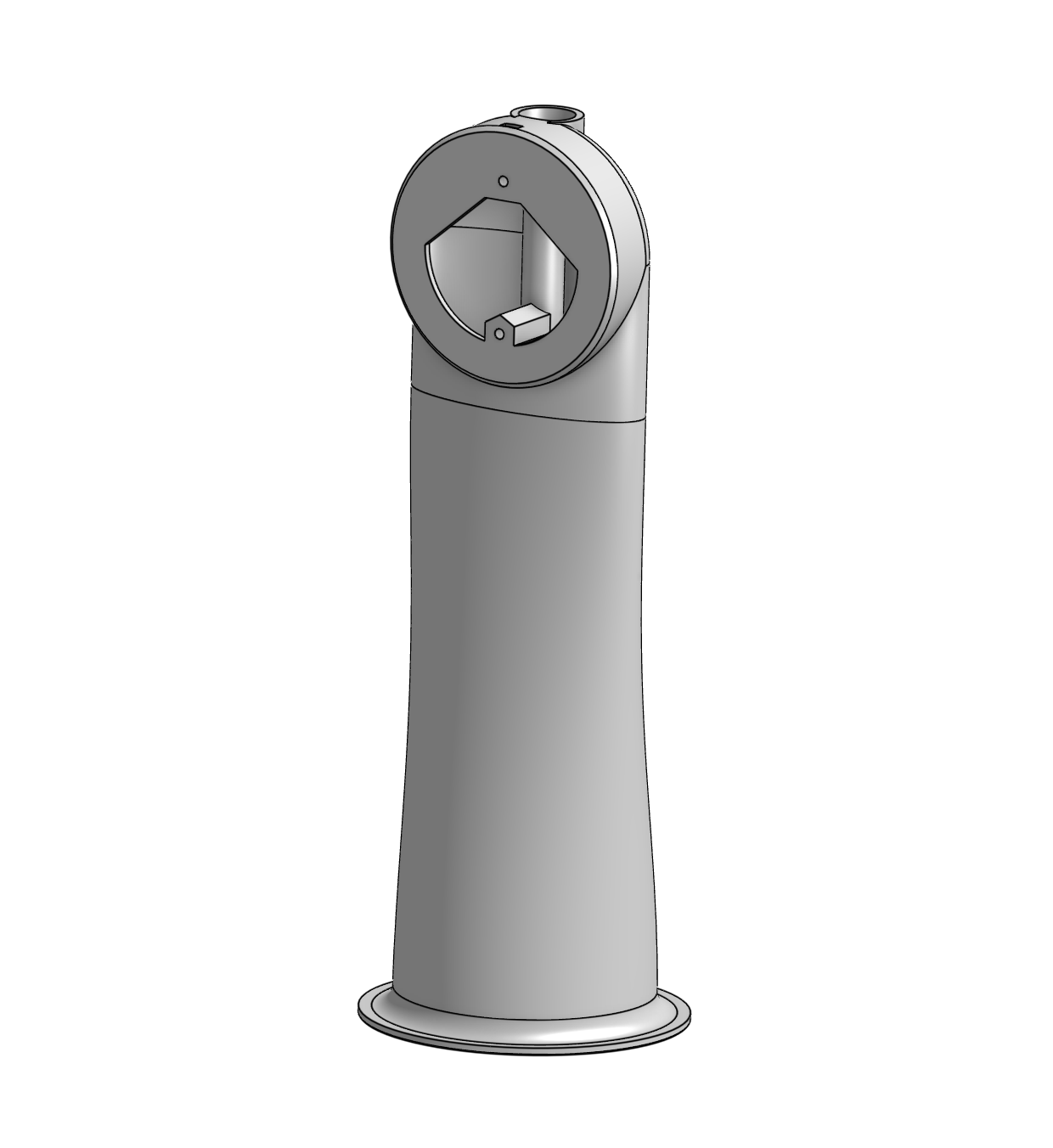

This camera-specific soffit mount converts a horizontal soffit into a vertical mounting surface for the eve Outdoor Cam. It installs directly over a standard 4-inch junction box with 3.5-inch crossbar screw spacing and replaces the separate Eve Adapter Plate.

🌟 Why Choose This Mount?

  • Direct junction-box installation: The 127 mm (5 in) box side mounts through the included crossbar hardware.
  • Camera-specific interface: The 102 mm (4 in) round camera side accepts the eve Outdoor Cam without the separate Eve Adapter Plate.
  • Full-length metal support: A steel lamp pipe carries the installed load through the 355 mm (14 in) mount.

📹 Verified Camera Compatibility

  • eve Outdoor Cam using the 102 mm (4 in) round mounting interface

No distinct second-generation mounting interface has been confirmed. Compare your camera's mounting interface with the listing images before ordering.

🔩 Junction-Box Compatibility

  • Standard 4-inch junction box with 3.5-inch crossbar screw spacing

📐 Specifications

  • Box-side diameter: 127 mm (5 in)
  • Camera-side diameter: 102 mm (4 in)
  • Height: 355mm (14 in)
  • Wall thickness: 3 mm
  • Colors: Black or white

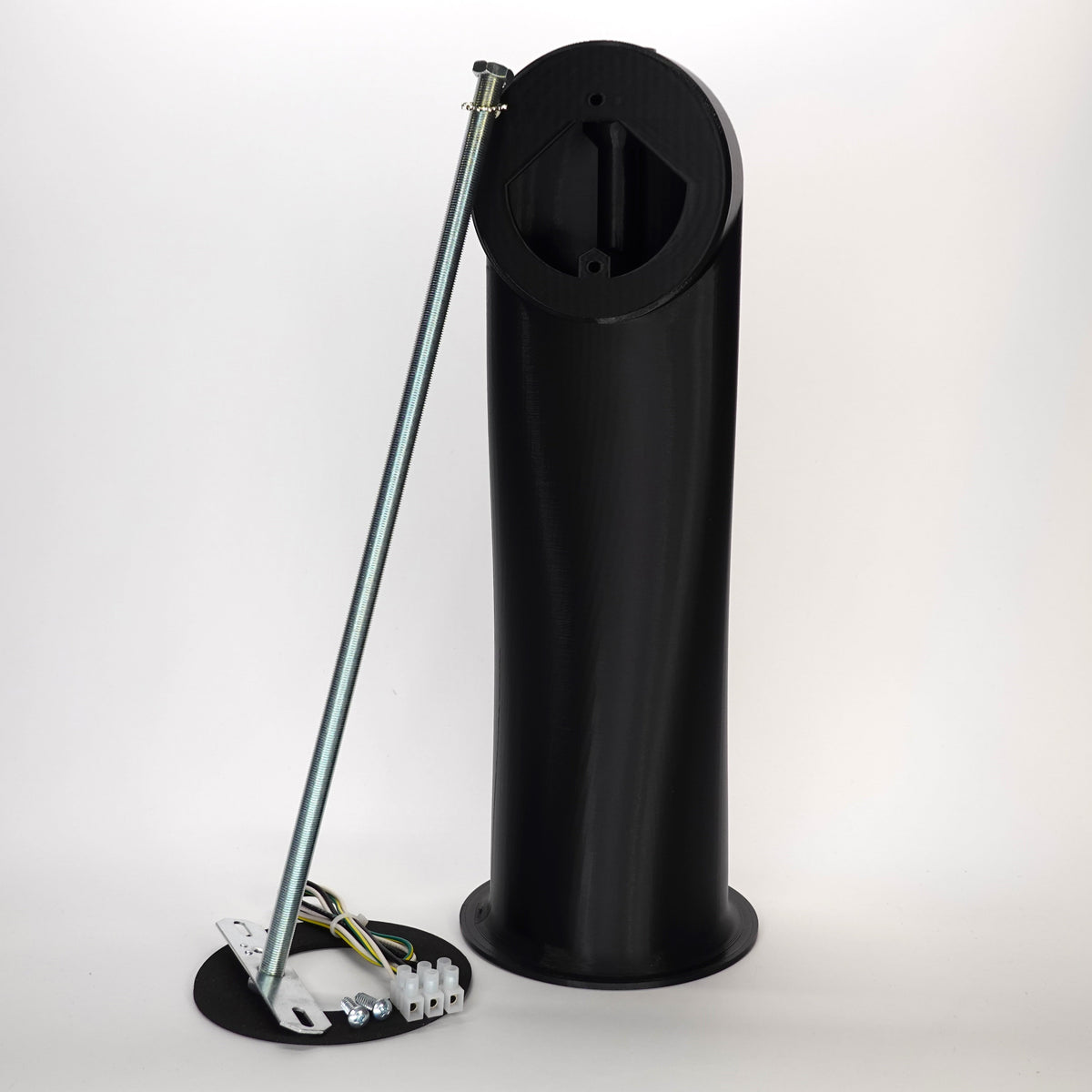

📦 In The Box

  • 1 eve Outdoor Cam single soffit mount
  • 1 full-length steel lamp pipe and crossbar installation hardware set
  • 1 round weatherproof gasket
  • 2 #8 × 3/4 in thread-forming screws
  • 3 electrical extension wires
  • 1 terminal block

Camera and electrical junction box are not included. A separate Eve Adapter Plate is not required.

🛠️ Installation

Mount the crossbar to the junction box, place the gasket at the box side, and secure the assembly through the lamp pipe. Attach the camera to the 102 mm round interface using the supplied thread-forming screws. Complete electrical connections and weather sealing according to the camera manufacturer's instructions and applicable electrical requirements. The eve Outdoor Cam must remain in the upright orientation specified by Eve.

🧩 Compatible Alexactly Accessories

  • Reinforced soffit wedge for angled soffits
  • 127 mm junction-box covers for exposed boxes
  • Universal soffit drop extension when additional clearance is needed

This item is 3D-printed in durable PCTG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.

It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
