This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
Soffit Mount for Reolink Duo Floodlight PoE and WiFi Cameras
Regular price
$47.95
Couldn't load pickup availability

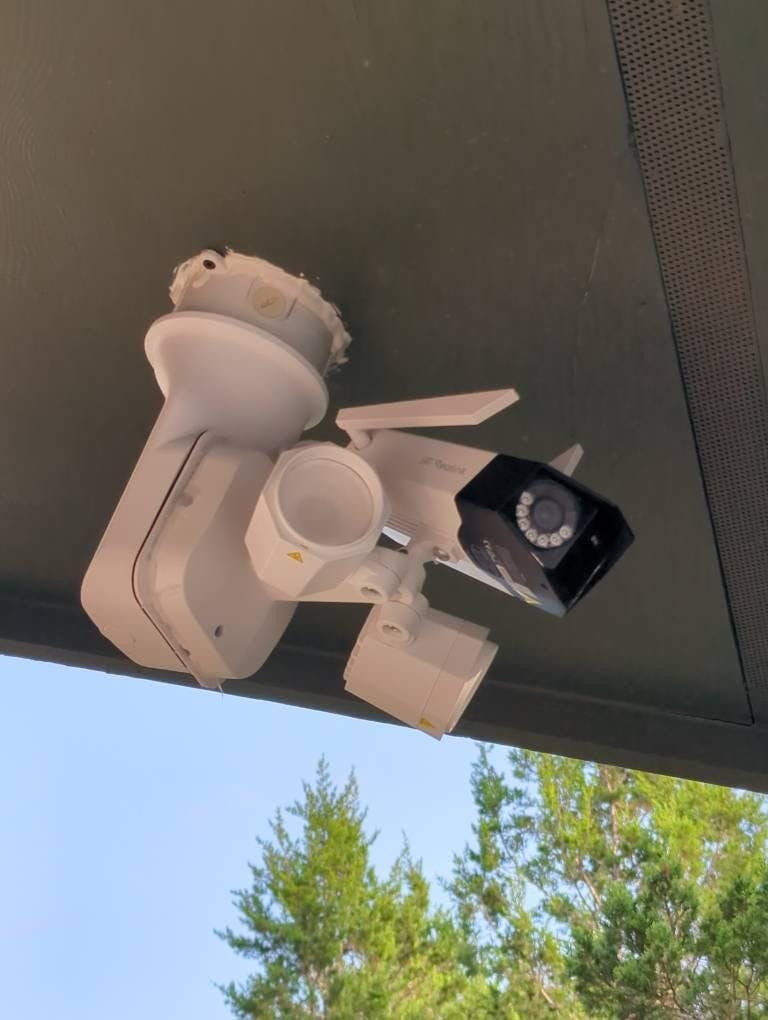

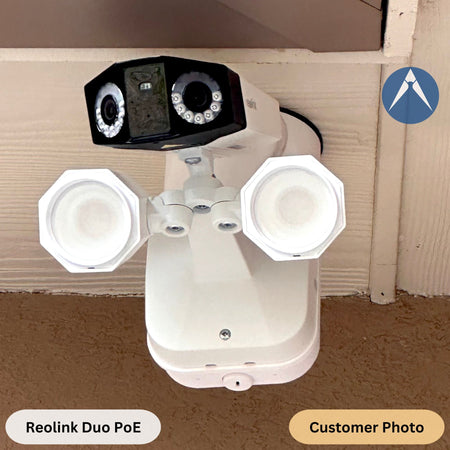

Mount a Reolink Duo Floodlight Camera Under a Soffit

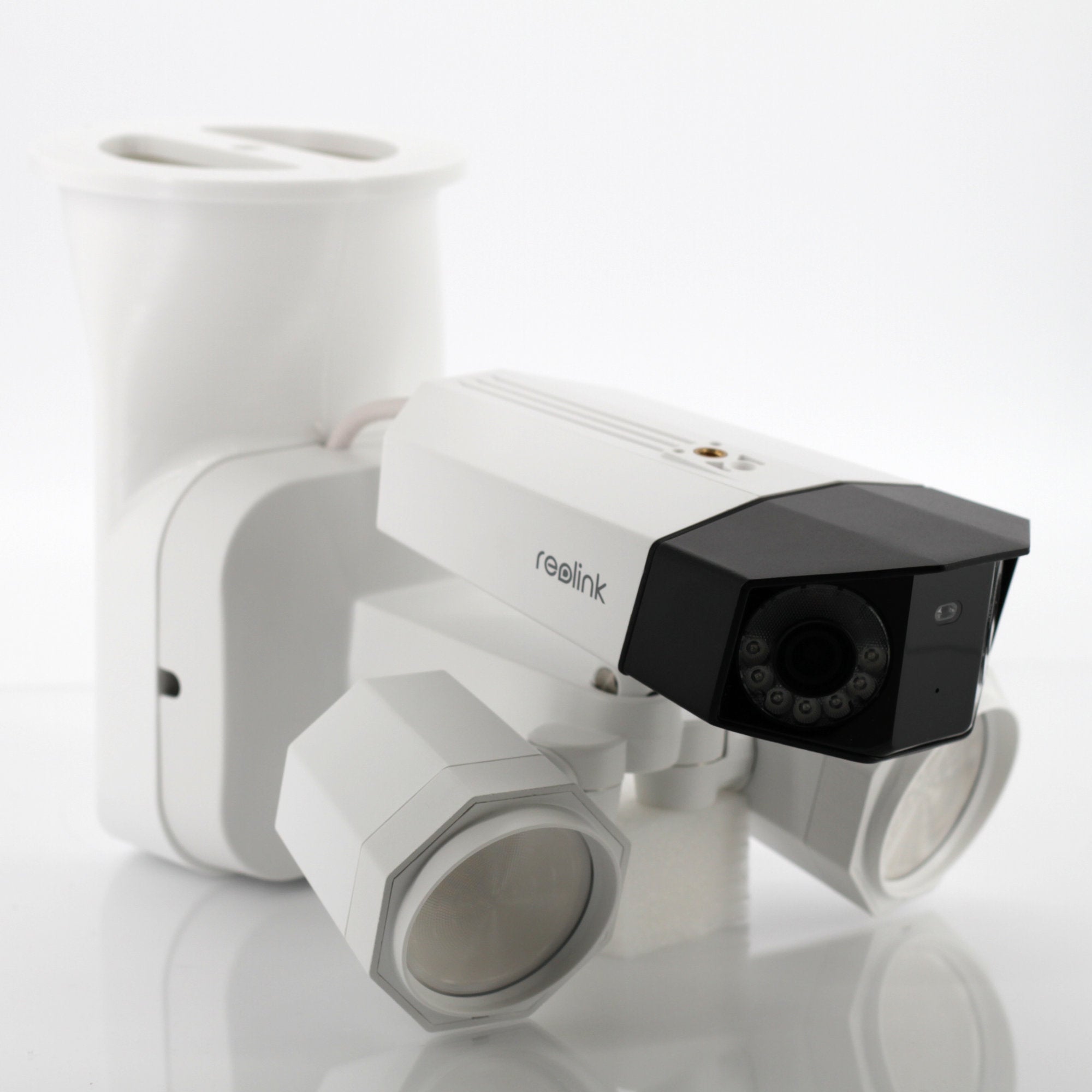

This camera-specific soffit mount converts a horizontal soffit into a vertical mounting surface for discontinued Reolink Duo Floodlight PoE and WiFi cameras with the 120 mm square mounting bracket. It installs over a standard 4-inch junction box and uses full-length metal support through the mount.
🌟 Why Choose This Mount?
- Camera-specific interface: The camera side matches the confirmed 120 mm square Reolink bracket.
- Full-length metal support: A steel lamp pipe carries the installed load through the 203 mm (8 in) mount.
- Low-profile curve: The camera sits partly beneath the soffit rather than hanging from a separate straight extension.
📹 Verified Camera Compatibility

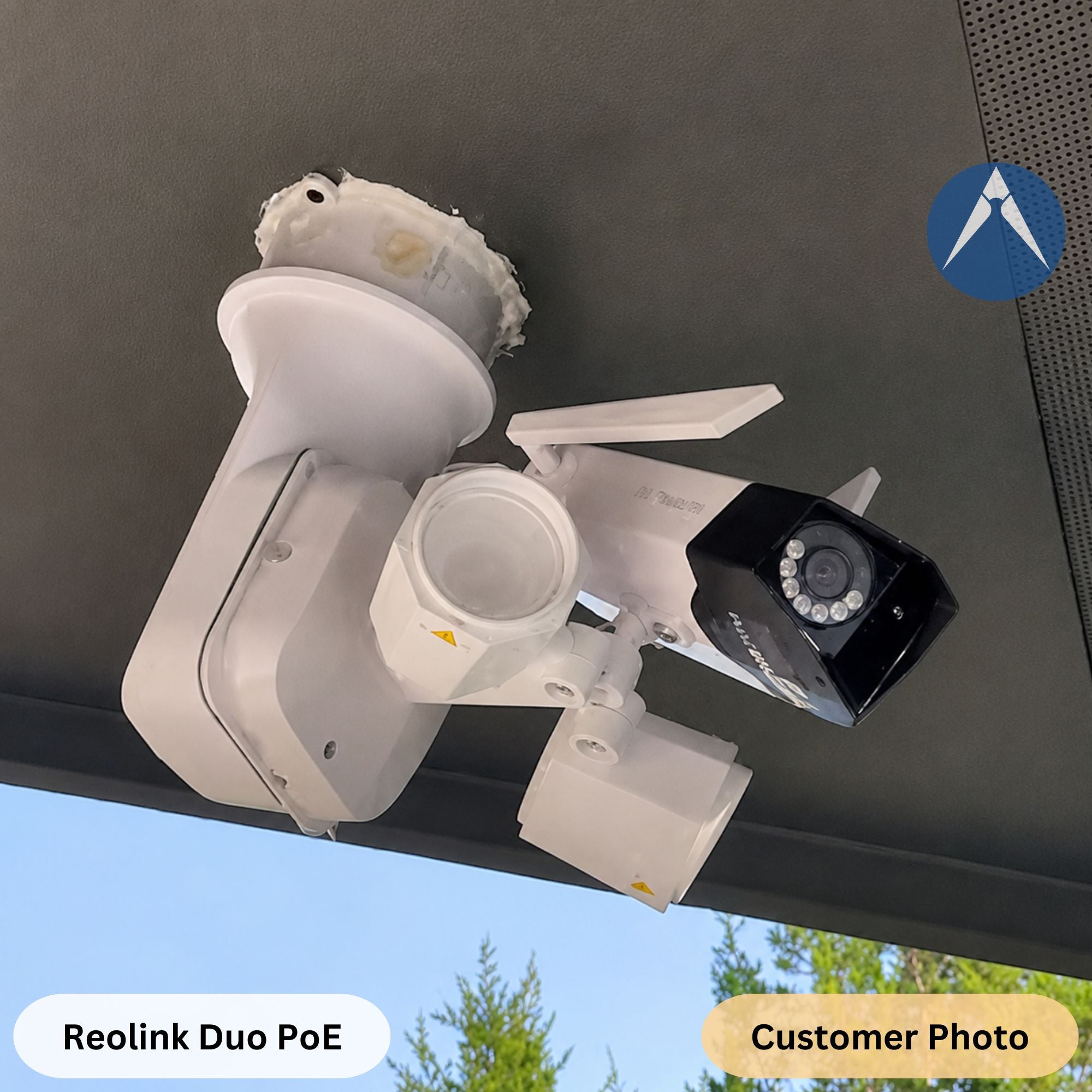

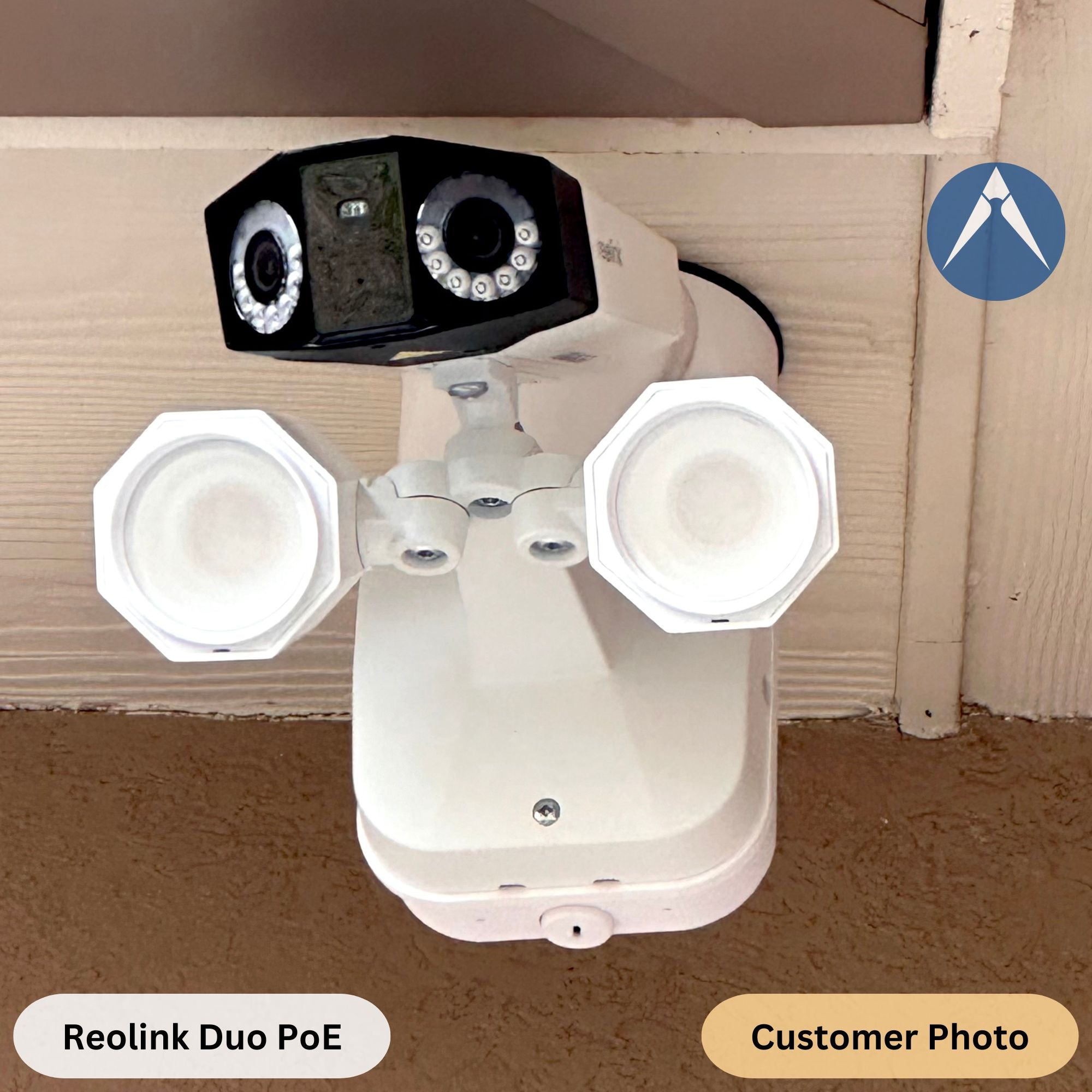

- Reolink Duo Floodlight PoE with the 120 mm square mounting bracket
- Reolink Duo Floodlight WiFi with the 120 mm square mounting bracket
These camera models are no longer sold by Reolink. Compare your original mounting bracket before ordering.
📐 Specifications

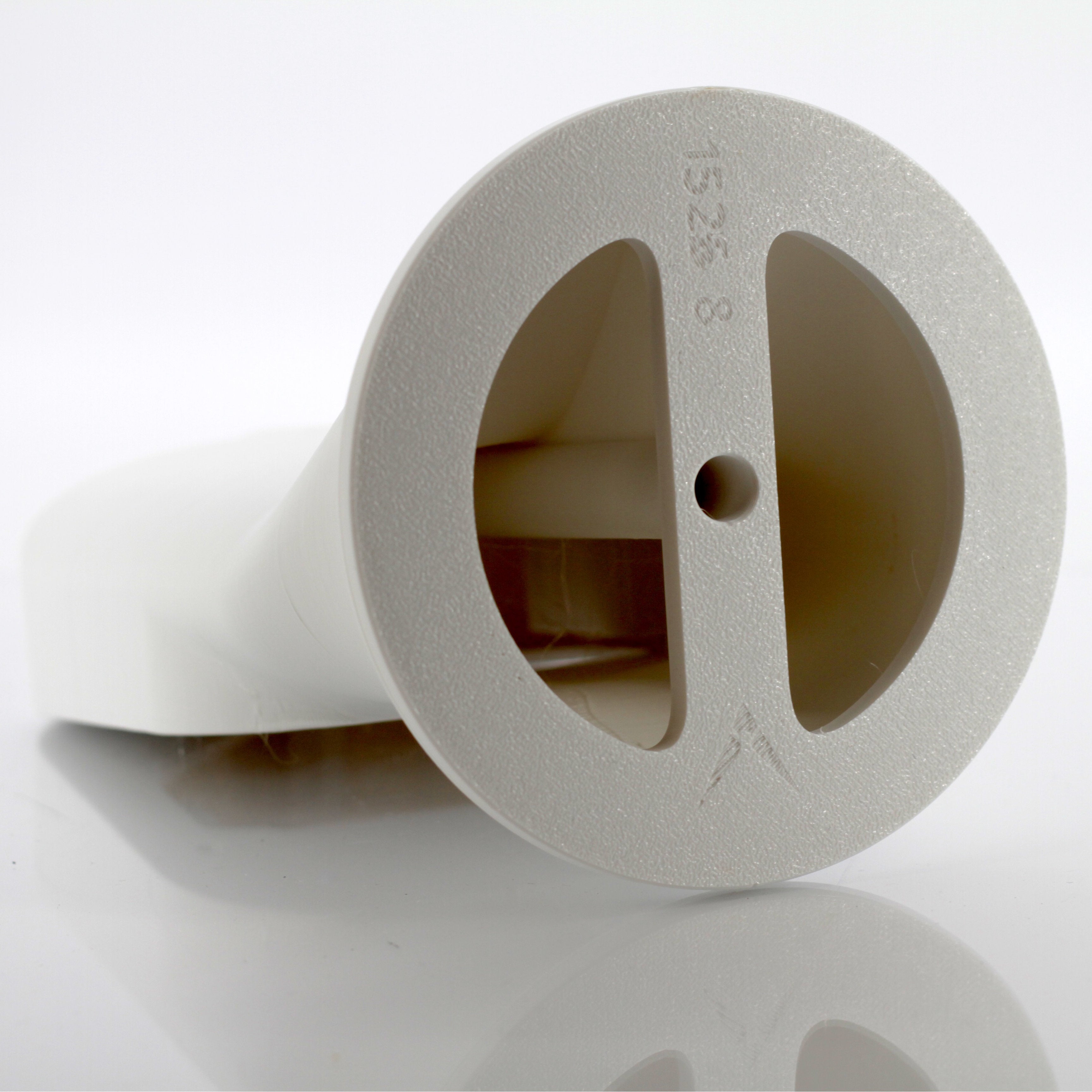

- Junction-box-side diameter: 127 mm (5 in)
- Height: 203 mm (8 in)

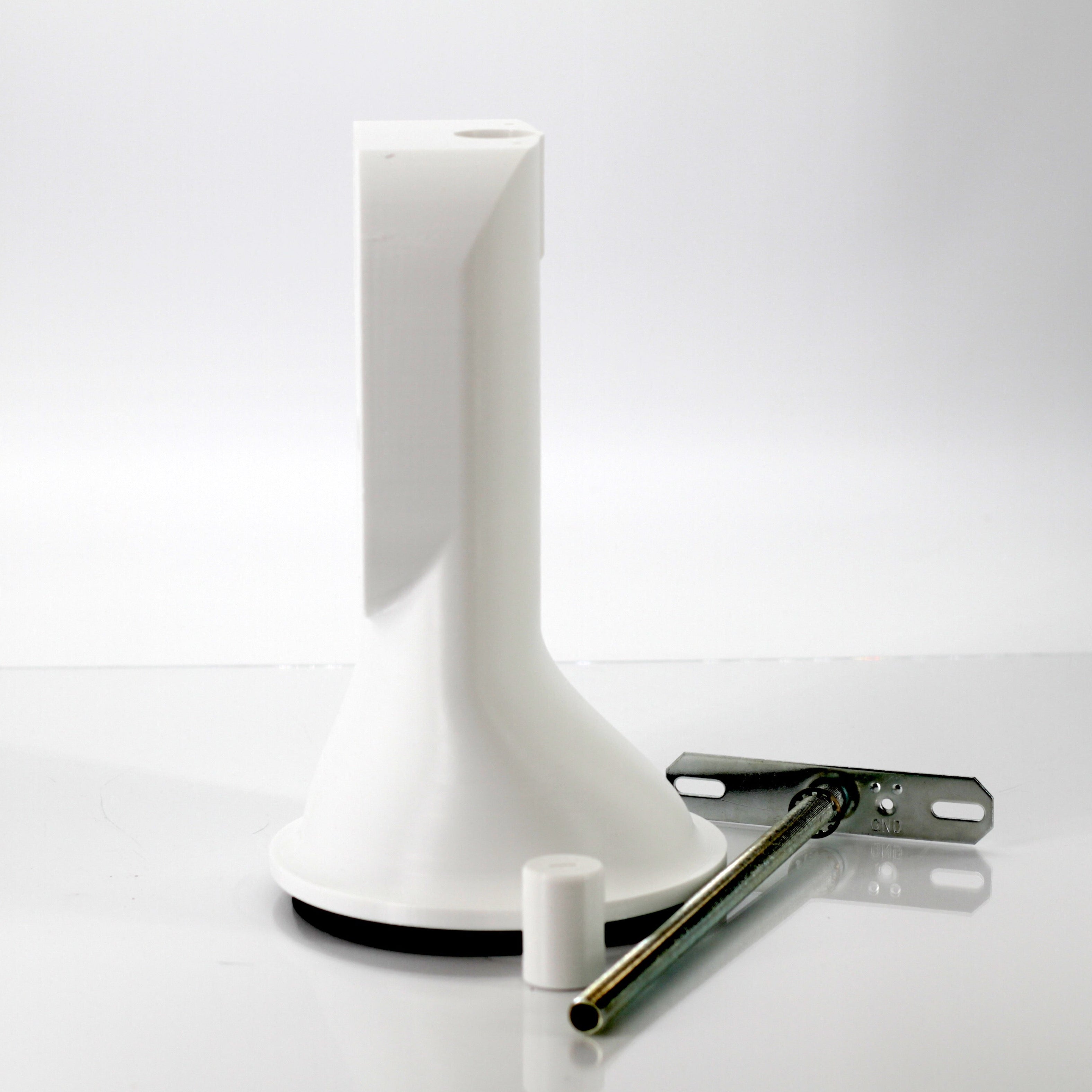

- Support: Full-length steel lamp pipe and metal mounting hardware
📦 In The Box
- 1 Reolink Duo Floodlight soffit mount
- 1 full-length steel lamp pipe and crossbar installation hardware set
- 1 round weatherproof gasket
Camera, original Reolink mounting bracket, and electrical junction box are not included.
🔌 Legacy IRM Provision
The existing printed design retains a slot for a user-supplied Mean Well IRM-30-12ST power module. This legacy option is not actively marketed because later Duo connections make the converter unnecessary. The converter and wiring kit are not included.
🛠️ Installation

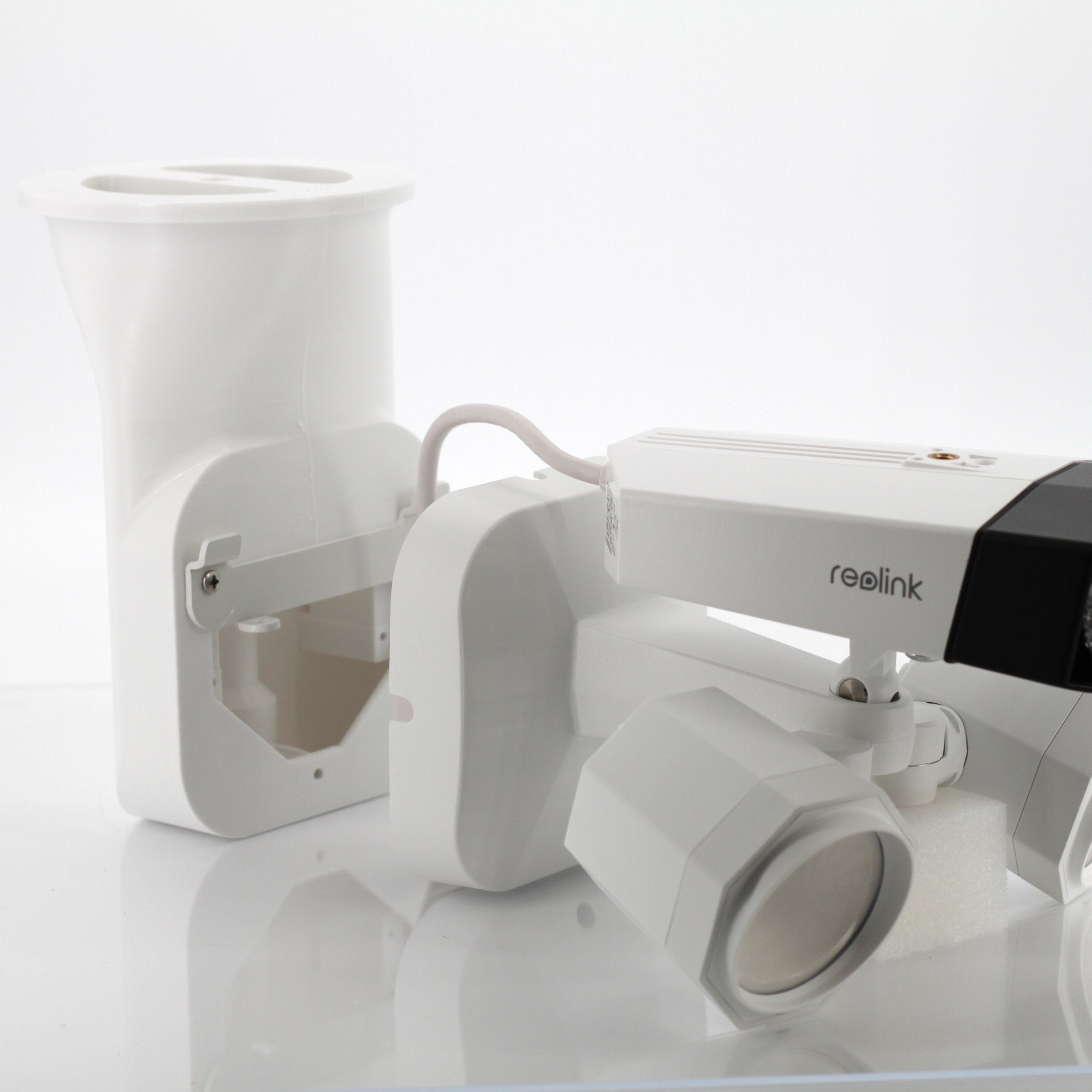

Mount the crossbar to the junction box, place the gasket at the box side, and secure the assembly through the lamp pipe. Attach the camera using its original Reolink bracket and hardware. Complete electrical connections and weather sealing according to the camera manufacturer's instructions and applicable electrical requirements.
⚠️ Made to Order — No Returns
This item is made to order in your selected configuration. Please allow additional production time before shipment. Because production is specific to your selection, returns are not accepted. Cancellations cannot be accepted once production has begun.
