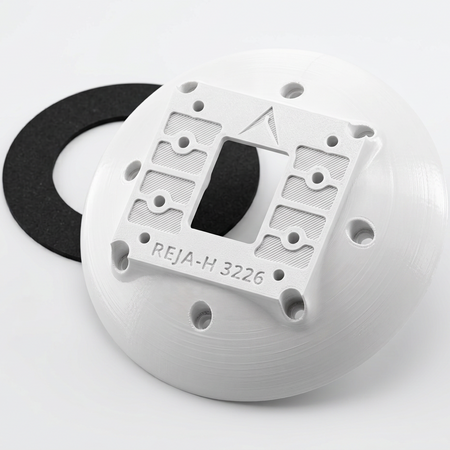

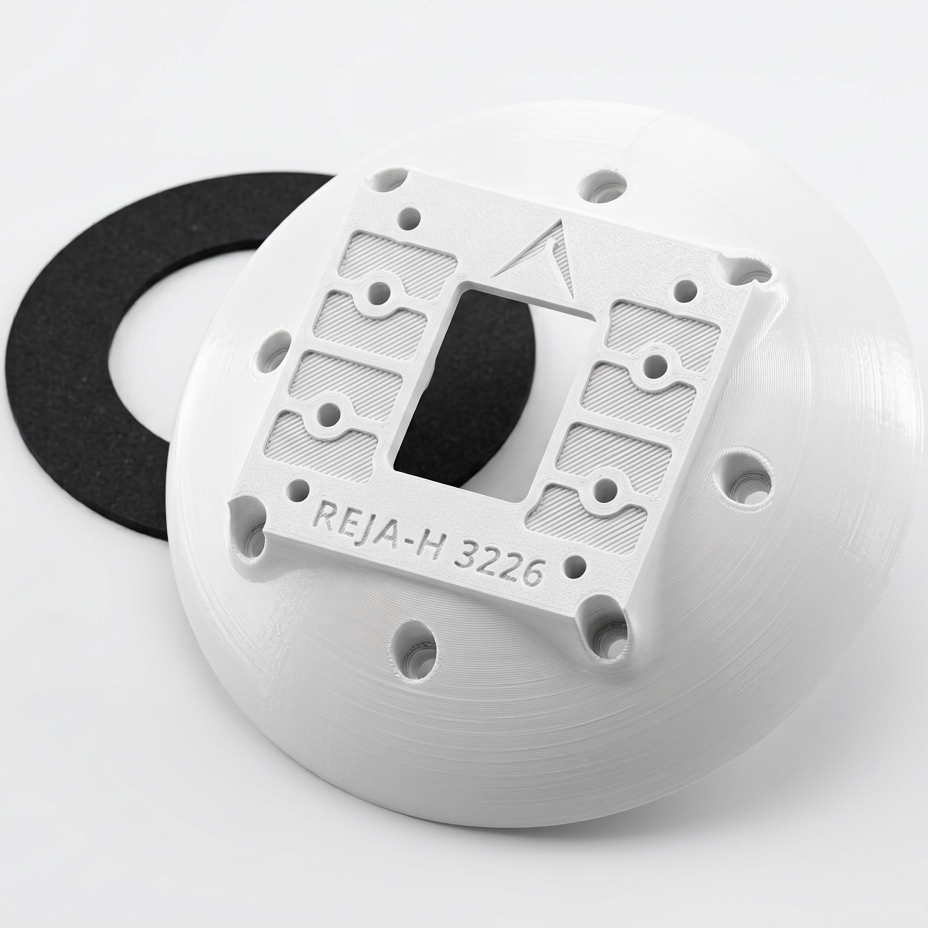

White REJA-HW junction box adapter for Reolink OMVI with black weatherproof gasket.

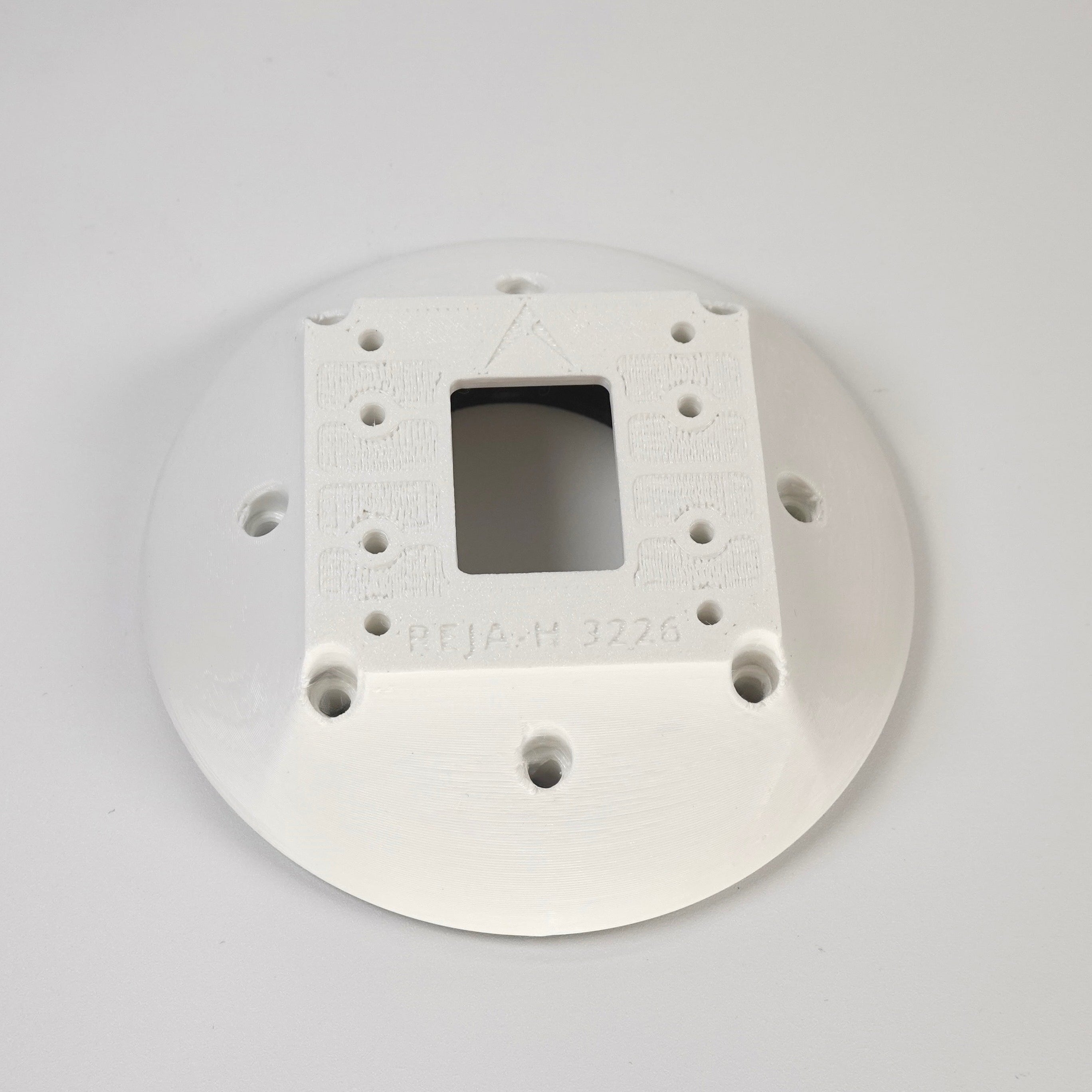

White REJA-HW junction box adapter for Reolink OMVI.
White REJA-HW junction box adapter for Reolink OMVI with black weatherproof gasket.
White REJA-HW junction box adapter for Reolink OMVI.

Reolink OMVI 3i PoE Junction Box Adapter - Type H

In stock
SKU: REJ-HW
(6)
$27.95

Mount Your Reolink OMVI 3i PoE to an Electrical Box

Reolink Adapter Type H lets you install the Reolink OMVI 3i PoE on common junction boxes, outlet boxes, and low-voltage mounting frames. It provides the correct interface between the camera’s mounting pattern and the electrical box.

🌟 Why Choose This Adapter?

  • Camera-specific fit: Designed for the Reolink OMVI 3i PoE.
  • Two box patterns: Supports 3.5-inch junction-box and 3.28-inch outlet-box mounting patterns.
  • Technical reference: Matches Reolink mounting template 60.01.106.0046.

📹 Verified Camera Compatibility

  • Reolink OMVI 3i PoE
  • Other Reolink hardware using mounting template 60.01.106.0046

🔩 Electrical-Box Compatibility

  • 4-inch junction box: 3.5-inch diagonal spacing
  • Outlet box or low-voltage frame: 3.28-inch vertical or horizontal spacing

📐 Specifications

  • Dimensions: 5 × 5 × 1 in
  • Product weight: 0.63 lb
  • Color: White
  • Material: PETG
  • Camera side: Shaped for Reolink template 60.01.106.0046

📦 In The Box

  • 1 white Adapter Type H
  • 1 black weatherproof gasket

Camera, original Reolink mounting hardware, and electrical-box screws are not included.

🛠️ Installation

Fasten the adapter to a compatible electrical box, place the gasket at the box side, then attach the camera’s original hardware to the camera side. Complete weather sealing according to the camera manufacturer’s instructions and applicable electrical requirements.

This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.

It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
