This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.

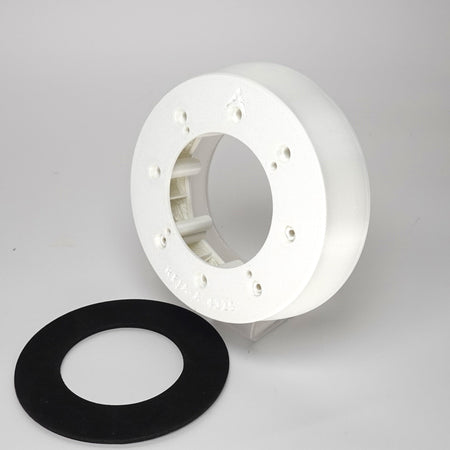

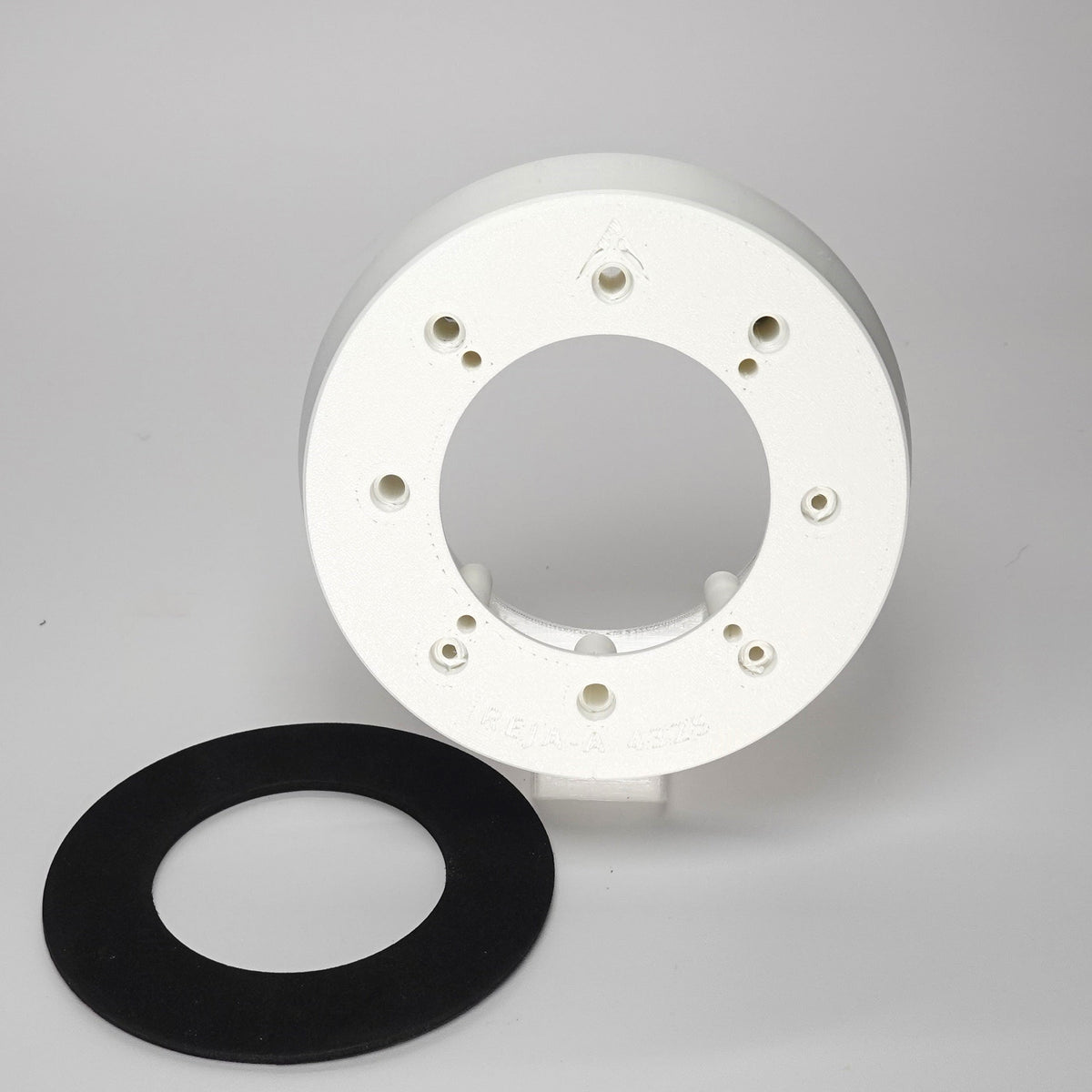

Reolink Dome Camera Junction Box Adapter - Type A
Regular price
$15.95
Regular price
-45%
$28.95
Sale price
$15.95
Couldn't load pickup availability
Mount Compatible Reolink Dome Cameras to an Electrical Box

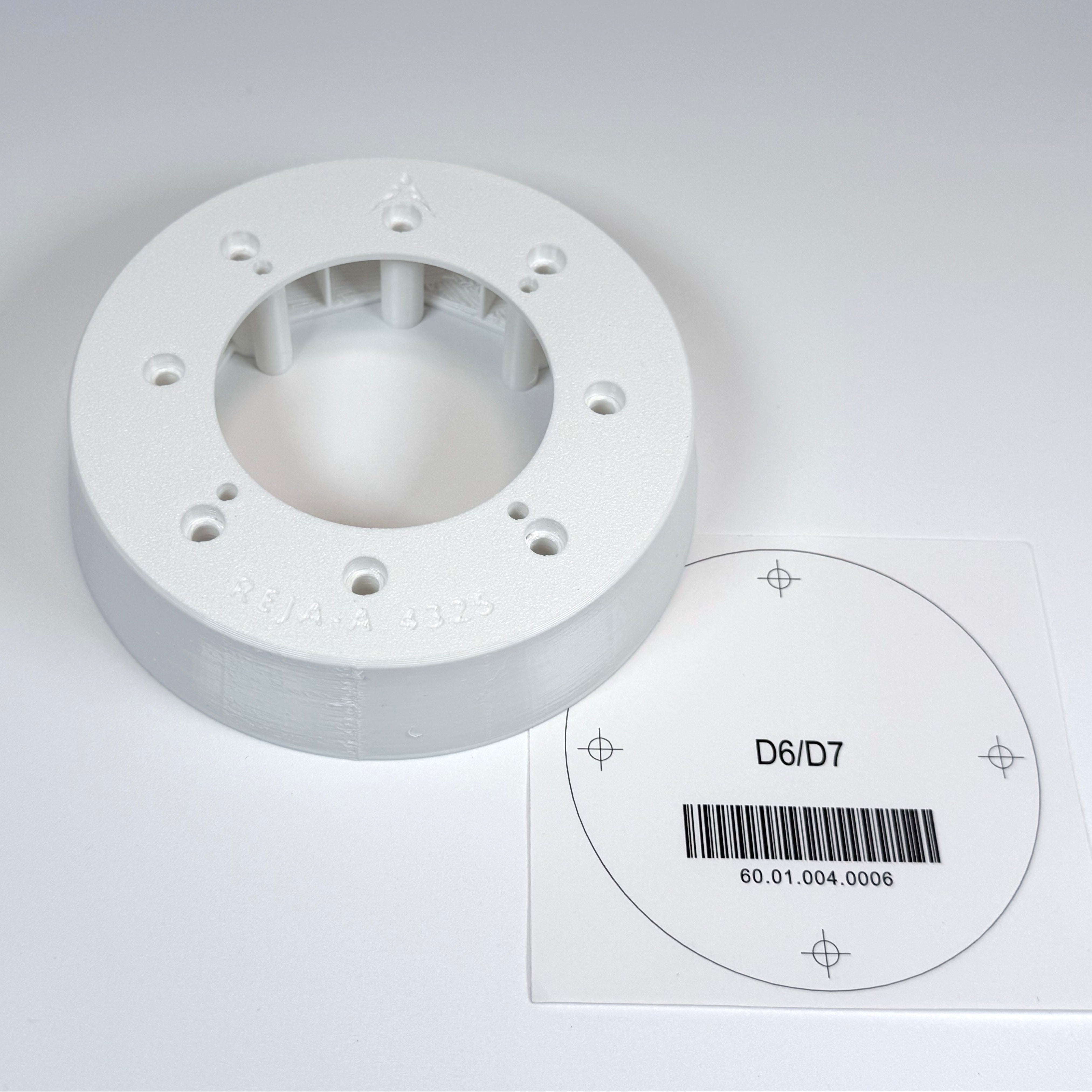

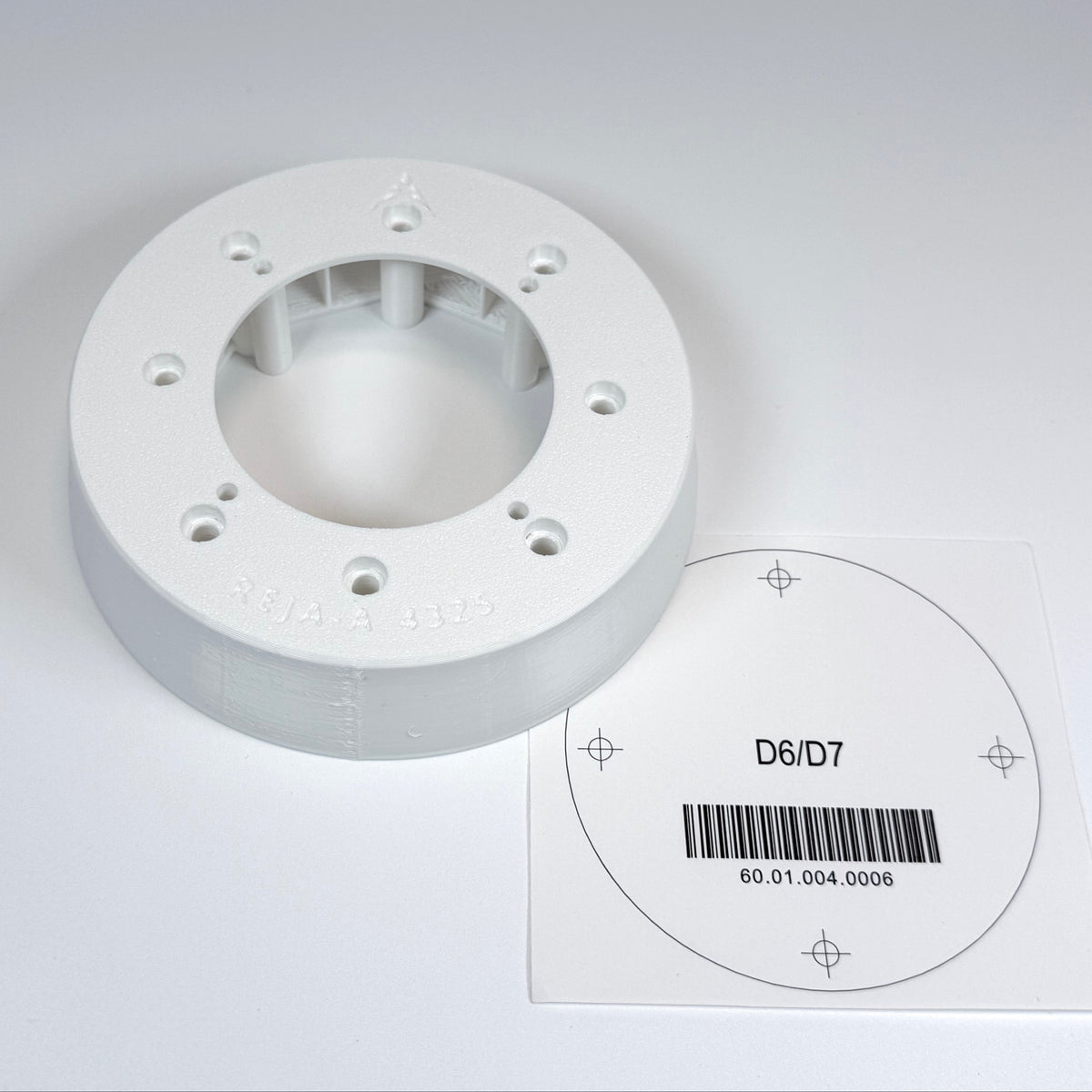

Reolink Adapter Type A connects camera hardware using mounting template 60.01.004.0006 to compatible junction-box and outlet-box hole patterns.
🌟 Why Choose This Adapter?
- Mounting interface: Connects compatible electrical-box and Reolink mounting patterns using the camera’s original hardware.
- Two box patterns: Supports 3.5-inch junction-box and 3.28-inch outlet-box mounting patterns.
- Template-based fit: Any Reolink model using template 60.01.004.0006 shares the designed mounting interface.
📹 Verified Camera Compatibility
- D400, D500, D800, and D1200
- RLC-420, RLC-520, RLC-520A, and RLC-522
- RLC-820A, RLC-822A, RLC-824A, and RLC-833A
- RLC-1224A and CX-820
- RP-PCT8M and RP-PCT12M
- P324, P324C, P325, and P325C
- P334, P335, and P335X
- P344, P345, and P345C
- P433, P434, and P355C
- Other Reolink cameras using template 60.01.004.0006
🔩 Electrical-Box Compatibility
- 4-inch junction box: 3.5-inch diagonal spacing
- Outlet or low-voltage box: 3.28-inch vertical or horizontal spacing
📐 Specifications
- Round box-side diameter: 127 mm (5 in)
- Camera-side mounting diameter: 118 mm (4.65 in)
- Overall height: 30 mm (1.18 in)
📦 In The Box
- 1 Adapter Type A
- 1 weatherproof gasket
Camera, original Reolink mounting hardware, and electrical-box screws are not included.
🛠️ Installation
Fasten the adapter to a compatible electrical box, place the gasket at the box side, then attach the camera’s original hardware to the template-specific side. Complete weather sealing according to the camera manufacturer’s instructions and applicable electrical requirements.
