This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
Reolink Duo 2V/3V Junction Box Adapter - Type F
Regular price
$15.95
Regular price
-45%
$28.95
Sale price
$15.95
Couldn't load pickup availability

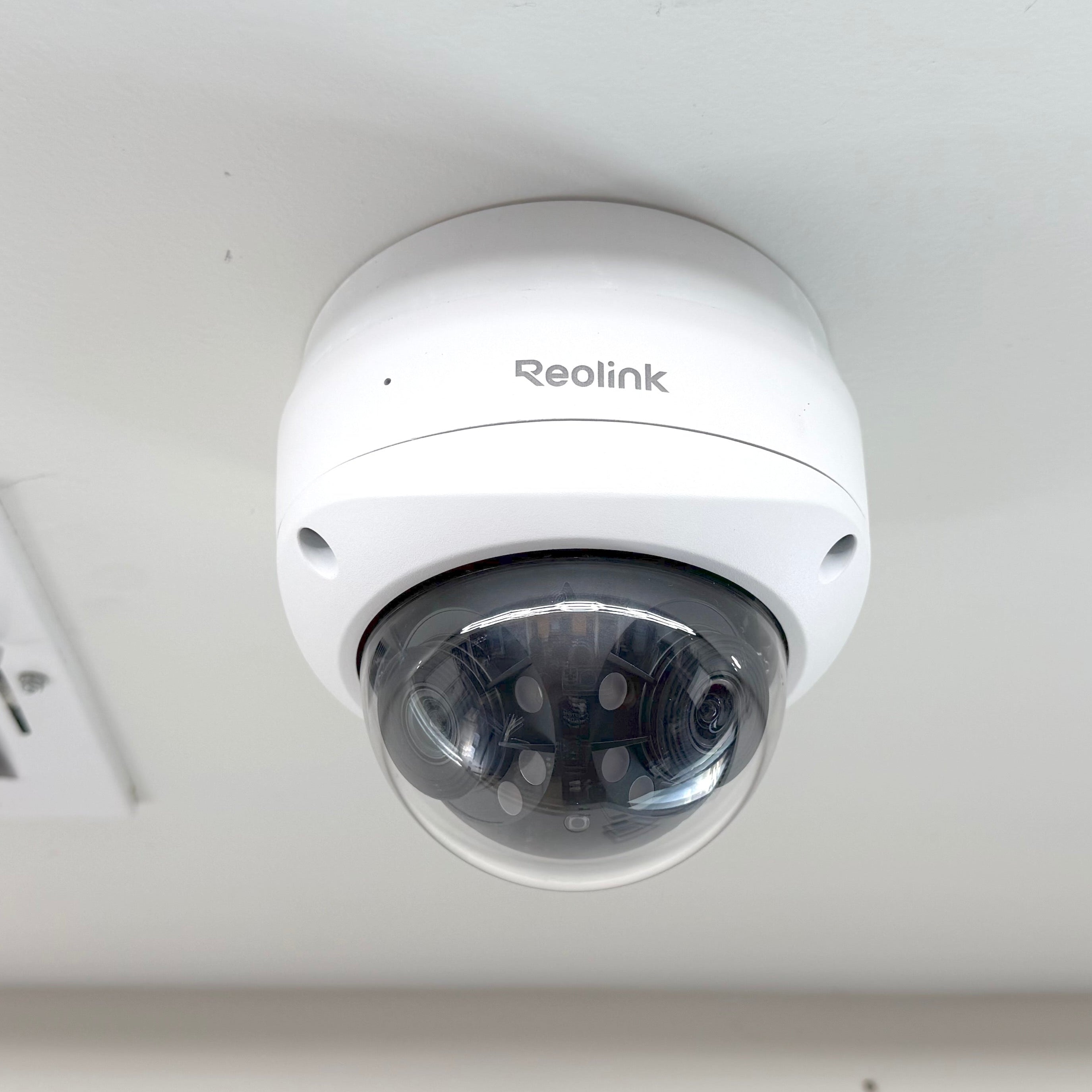

Mount Compatible Reolink Cameras to an Electrical Box

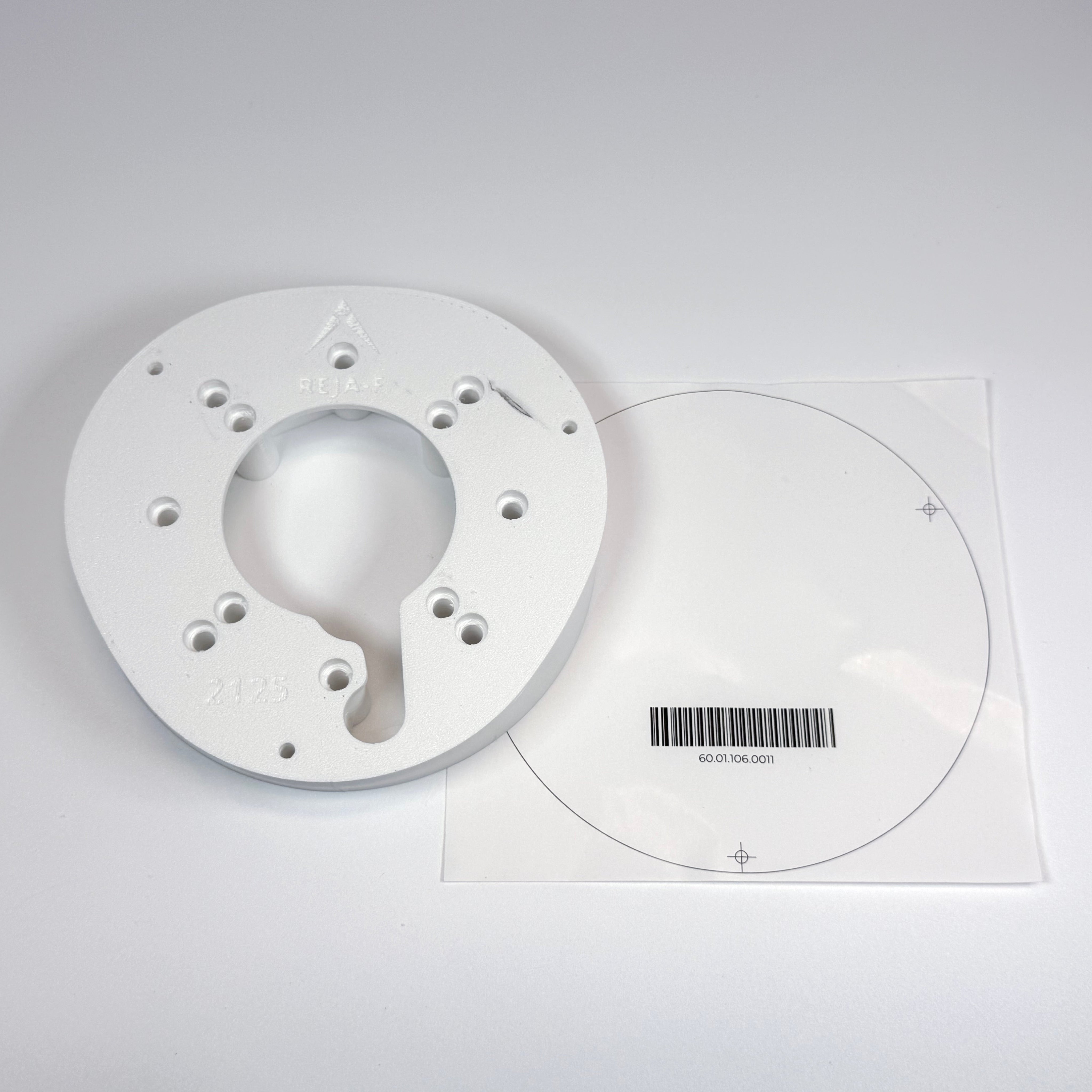

Reolink Adapter Type F connects camera hardware using mounting template 60.01.106.0011, also identified as D-20 Pattern F, to common junction-box and outlet-box hole patterns.
🌟 Why Choose This Adapter?
- Mounting interface: Connects compatible electrical-box and Reolink mounting patterns using the camera’s original hardware.
- Three box patterns: Supports 2.75-inch, 3.5-inch, and 3.28-inch mounting-hole patterns.
- Template-based fit: Compatible models share Reolink template 60.01.106.0011, also identified as D-20 Pattern F.
📹 Verified Camera Compatibility
- Reolink Duo 2V PoE and Duo 3V PoE
- RLC-843A and RLC-843WA
- RP-PCV8MZ
- Other Reolink cameras using D-20 Pattern F or template 60.01.106.0011
🔩 Electrical-Box Compatibility
- 3-inch junction box: 2.75-inch diagonal spacing
- 4-inch junction box: 3.5-inch diagonal spacing
- Outlet or low-voltage box: 3.28-inch vertical or horizontal spacing
📐 Specifications

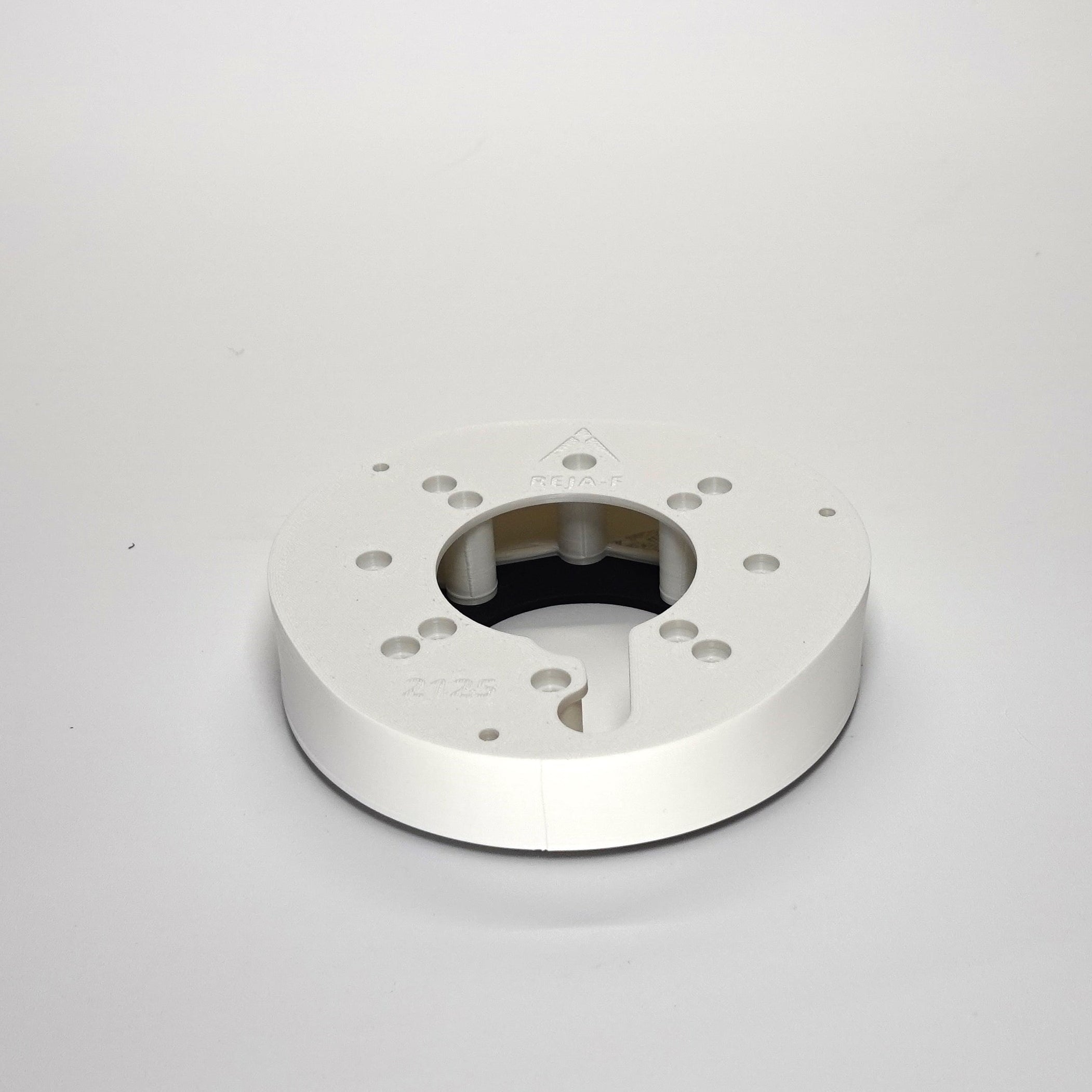

- Round box-side diameter: 127 mm (5 in)
- Camera side: Shaped for Reolink template 60.01.106.0011

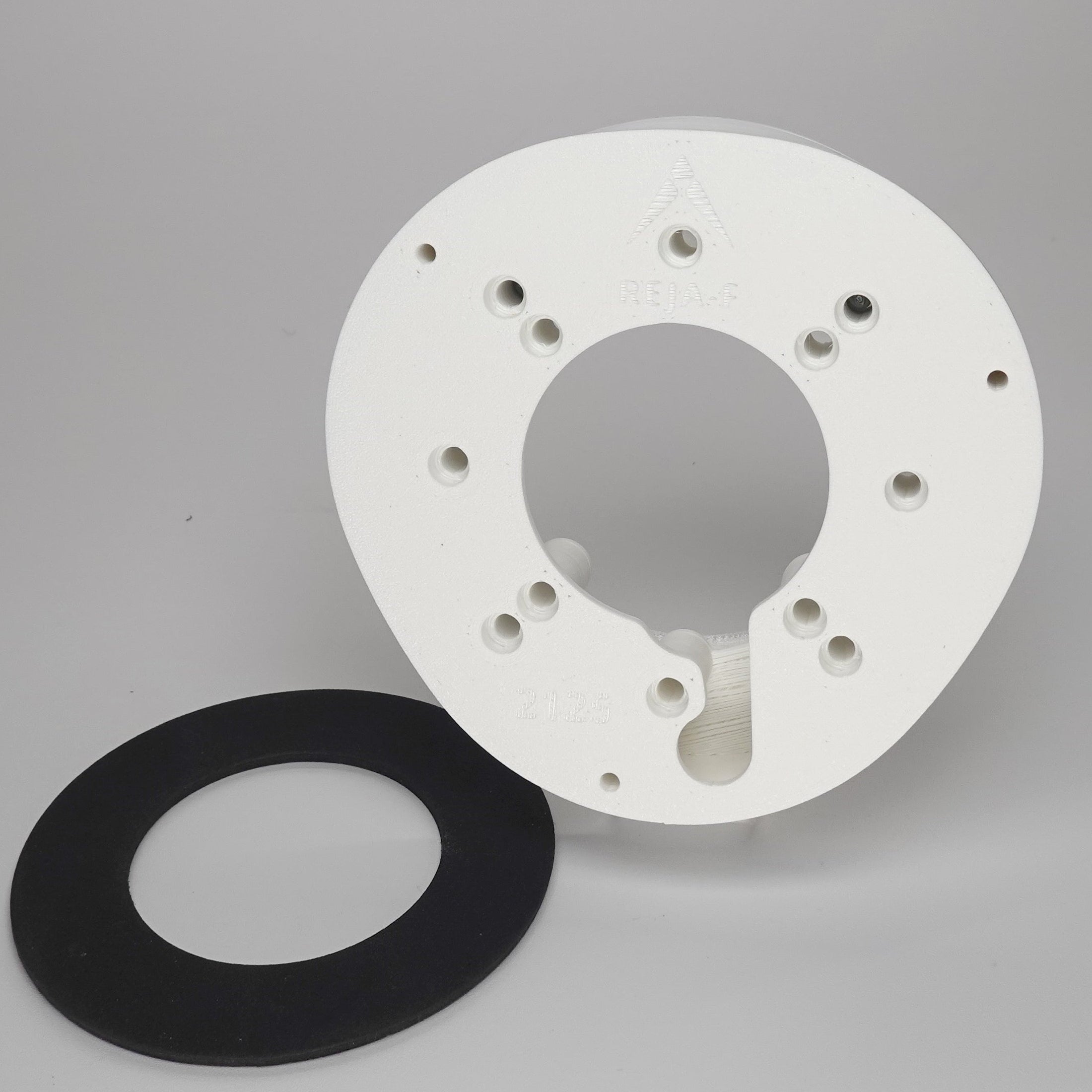

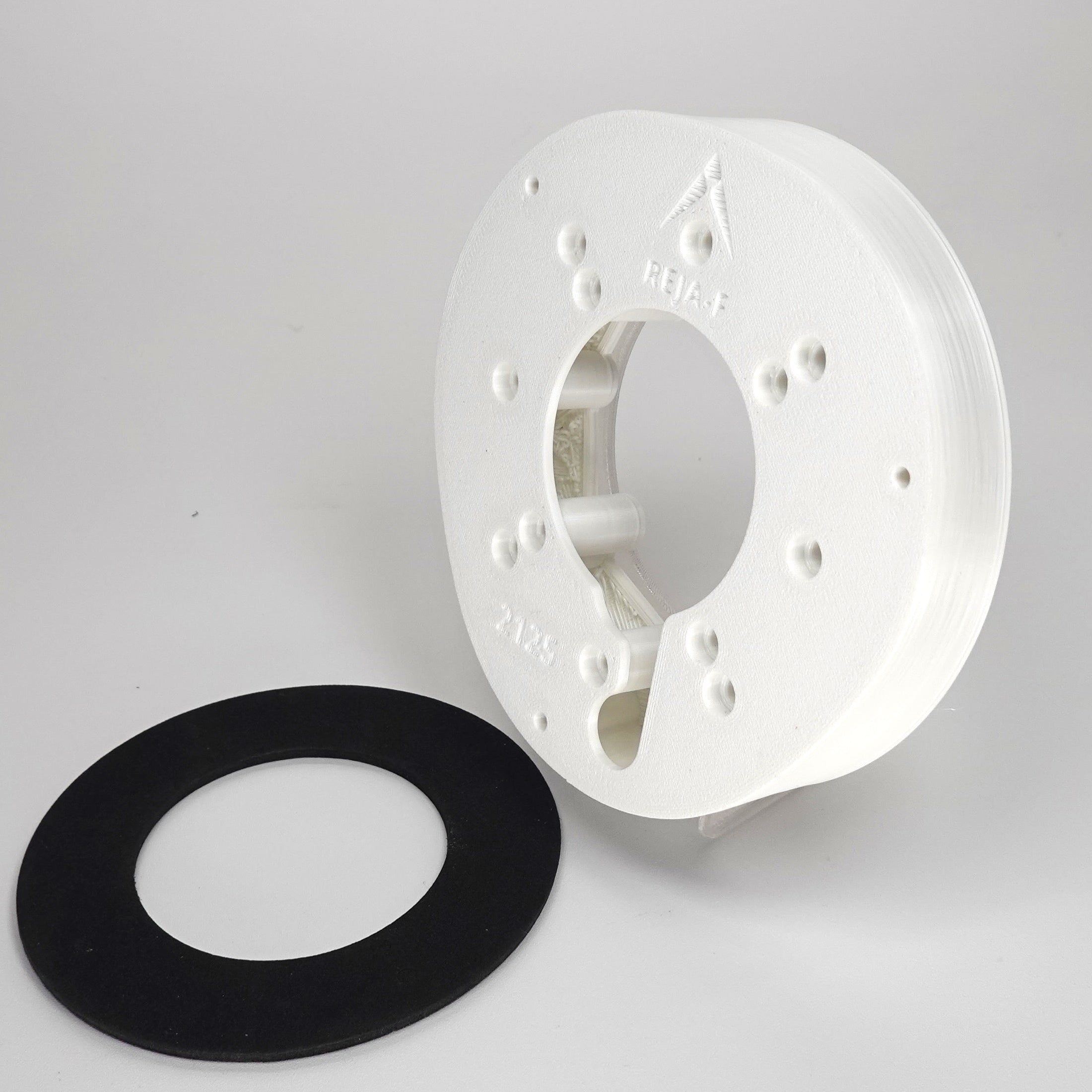

📦 In The Box
- 1 Adapter Type F
- 1 weatherproof gasket
Camera, original Reolink mounting hardware, and electrical-box screws are not included.
🛠️ Installation
Fasten the adapter to a compatible electrical box, place the gasket at the box side, then attach the camera’s original hardware to the template-specific side. Complete weather sealing according to the camera manufacturer’s instructions and applicable electrical requirements.
