This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
Reolink Duo Floodlight Junction Box Adapter - Type G
Regular price
$17.95
Regular price
-25%
$23.95
Sale price
$17.95
Couldn't load pickup availability

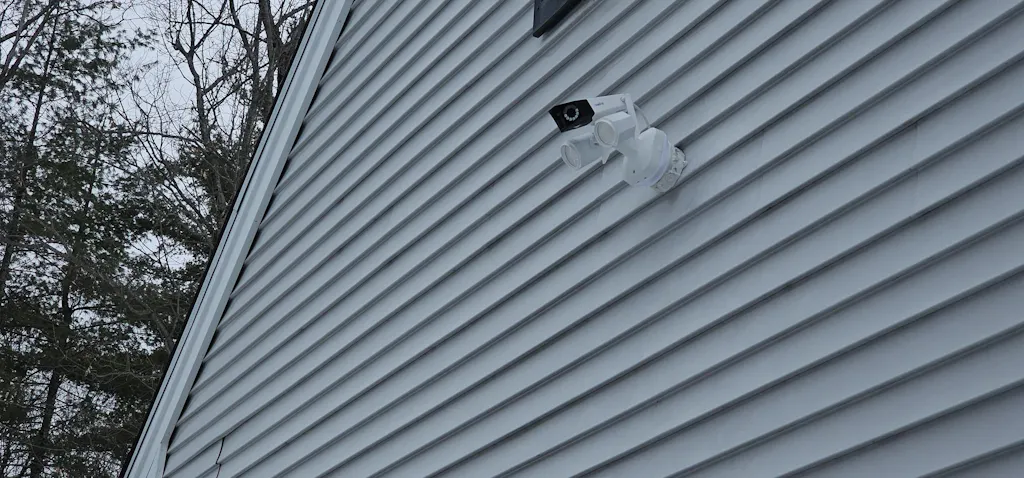

Mount a Reolink Duo Floodlight Camera to an Electrical Box

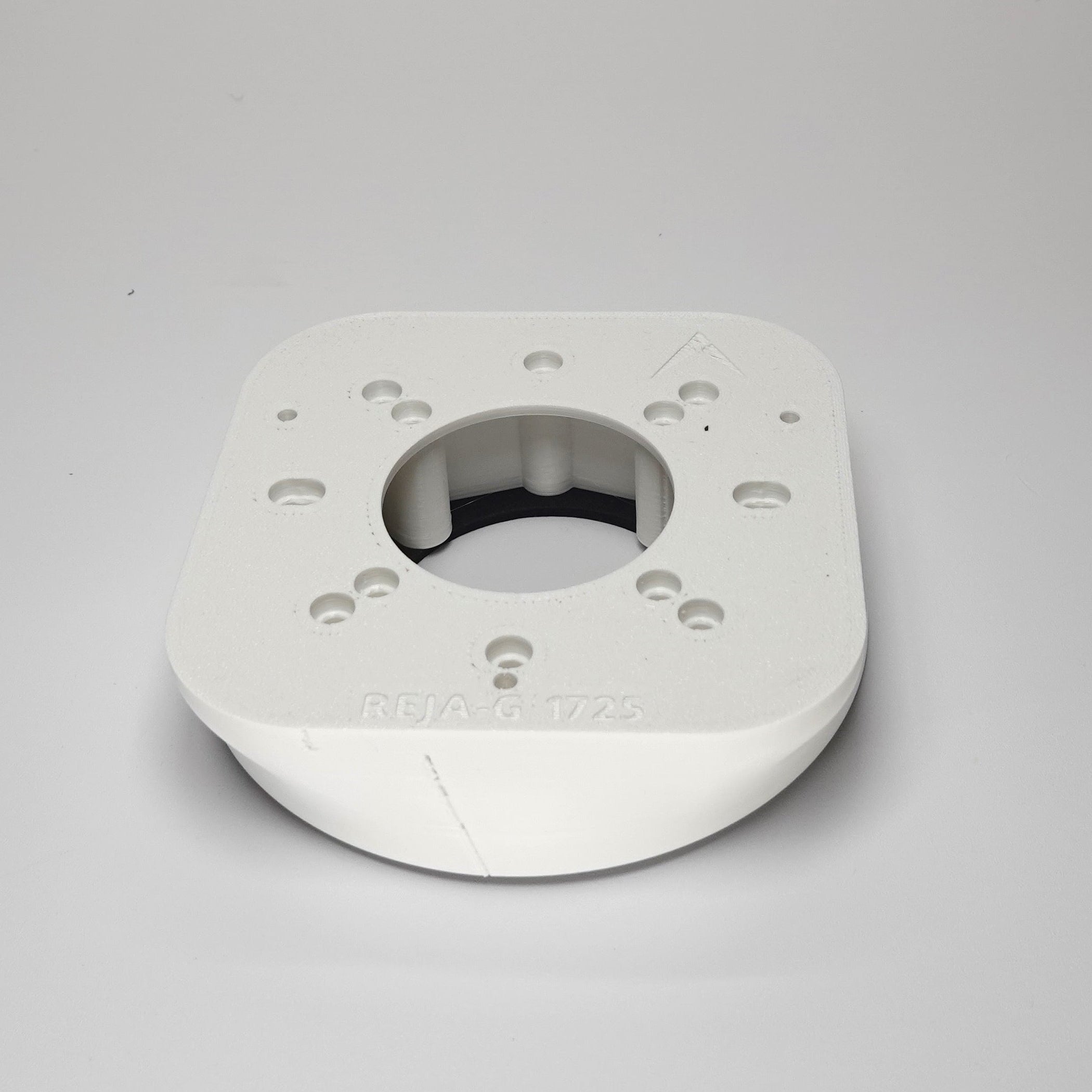

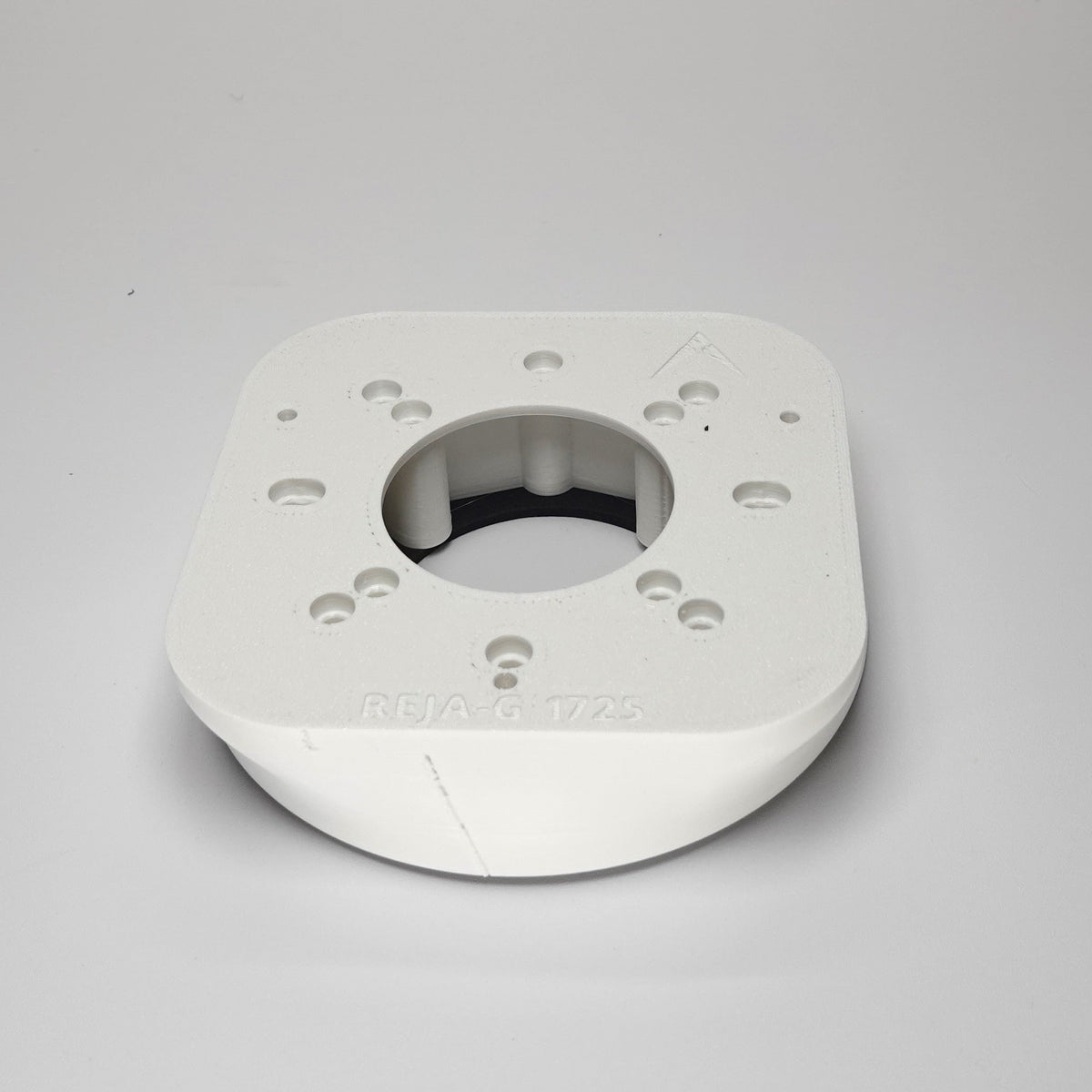

Reolink Adapter Type G lets you wall-mount a Reolink Duo Floodlight camera with the 120 × 120 mm square mounting bracket on compatible junction boxes, outlet boxes, and low-voltage mounting frames. It provides the correct interface between the camera bracket and the electrical box.
🌟 Why Choose This Adapter?
- Camera-specific fit: Designed for the 120 × 120 mm square Reolink Duo Floodlight mounting bracket.
- Three box patterns: Supports 2.75-inch, 3.5-inch, and 3.28-inch mounting patterns.
- Wall-mounting interface: Adapts the camera bracket to common electrical-box mounting patterns.
📹 Verified Camera Compatibility
- Reolink Duo Floodlight PoE with the 120 × 120 mm square mounting bracket
- Reolink Duo Floodlight WiFi with the 120 × 120 mm square mounting bracket
🔩 Electrical-Box Compatibility
- 3-inch junction box: 2.75-inch diagonal spacing
- 4-inch junction box: 3.5-inch horizontal or diagonal spacing
- Outlet box or low-voltage frame: 3.28-inch vertical or horizontal spacing
📐 Specifications
- Electrical-box-side diameter: 127 mm (5 in)
- Camera-side interface: 120 × 120 mm square bracket
- Overall height: 38 mm (1.50 in)
📦 In The Box
- 1 Reolink Adapter Type G

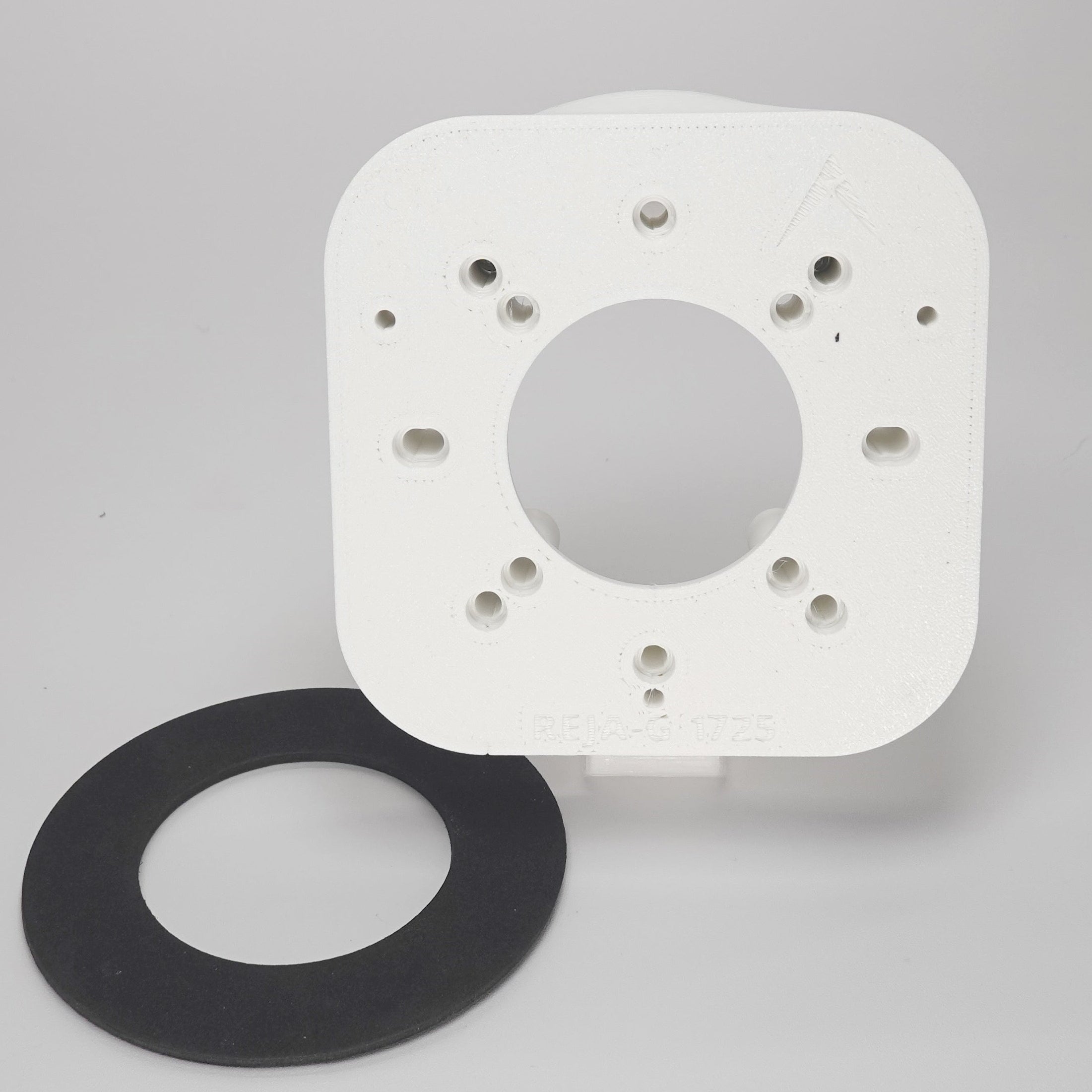

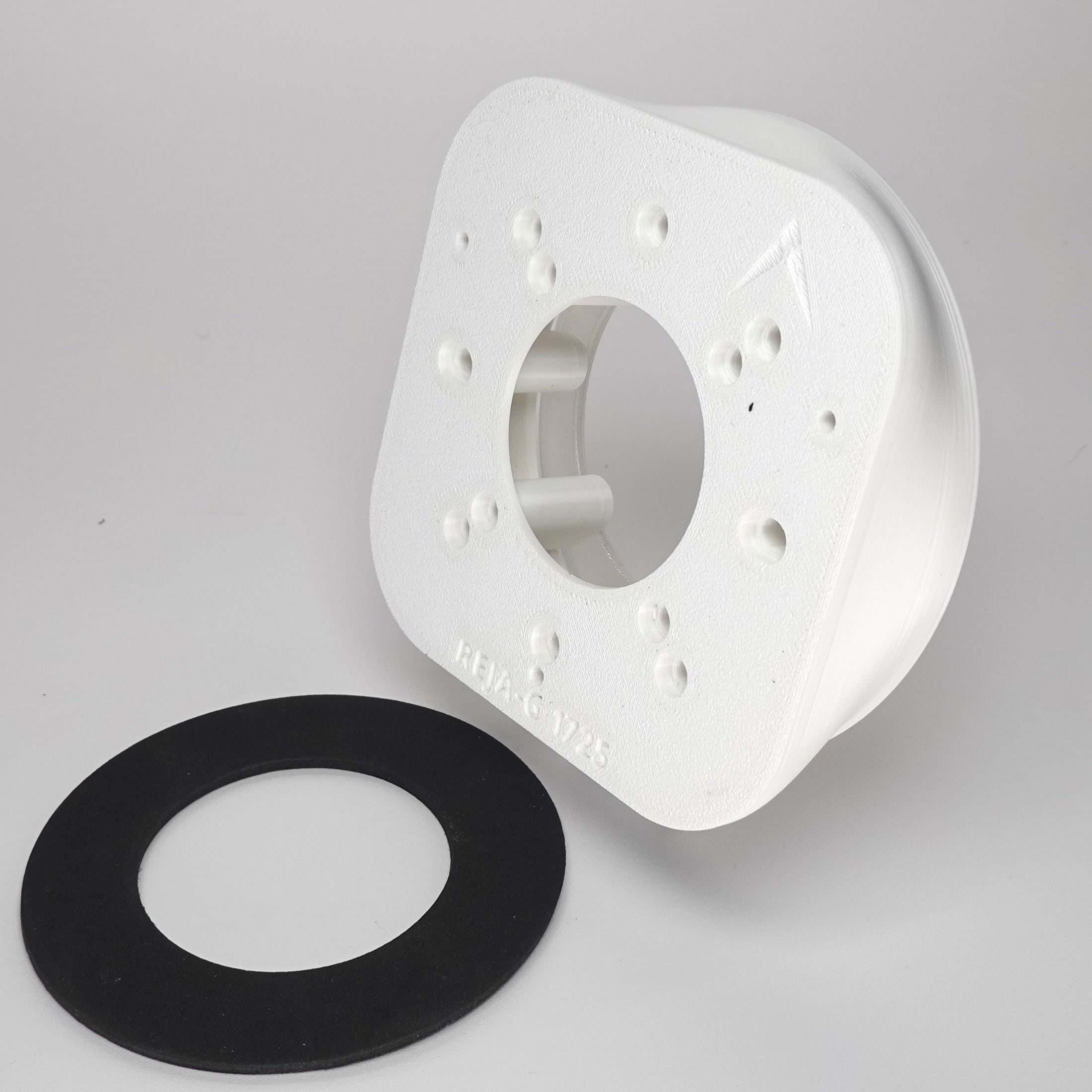

- 1 weatherproof gasket
Camera, original Reolink mounting hardware, and electrical-box screws are not included.
🛠️ Installation
Fasten the adapter to a compatible electrical box, place the gasket at the box side, then attach the camera’s original bracket and hardware to the camera side. Complete weather sealing according to the camera manufacturer’s instructions and applicable electrical requirements.
