This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
Universal 60° Single Soffit Mount for Floodlight Cameras
Regular price
$19.95
Regular price
-23%
$25.95
Sale price
$19.95
Couldn't load pickup availability
Convert Your Soffit into a Vertical Mounting Surface

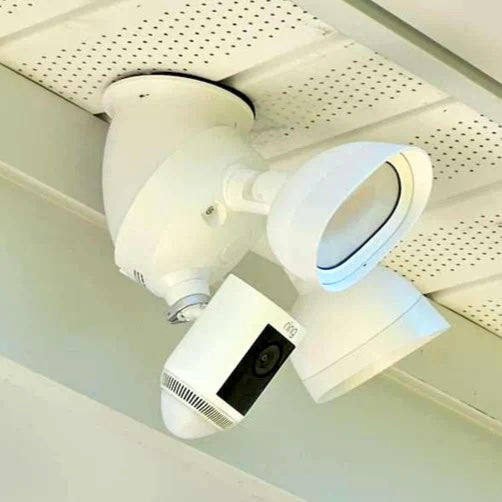

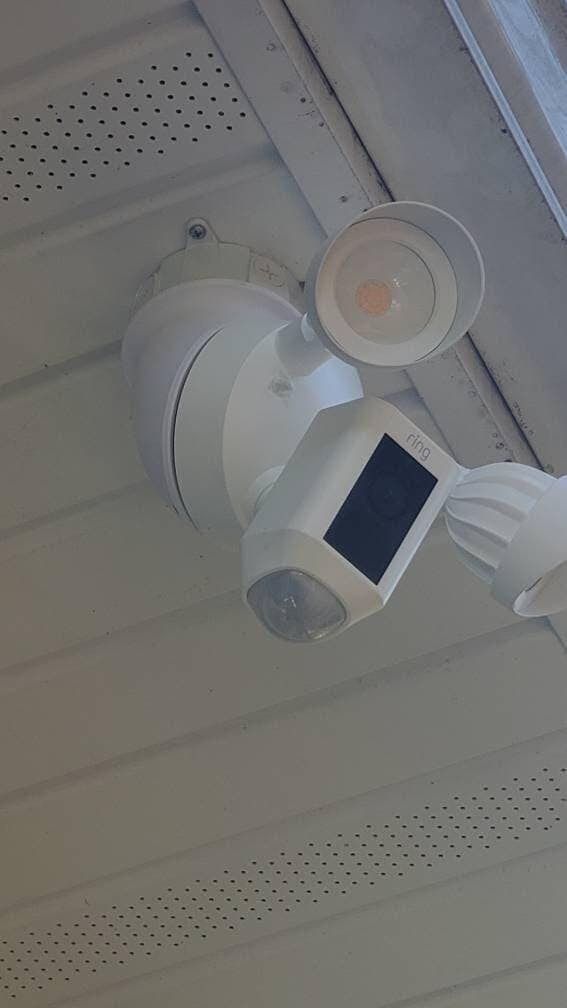

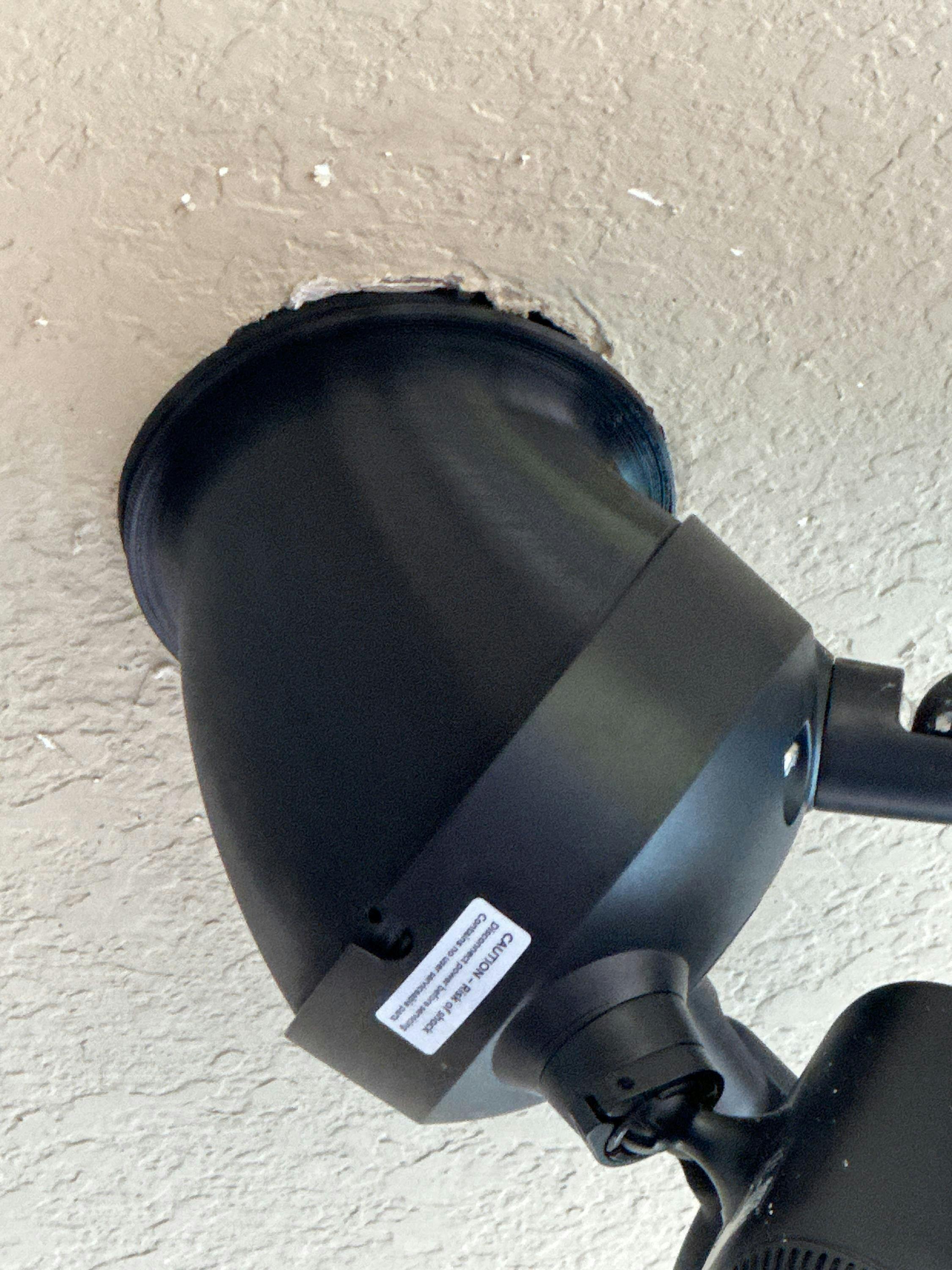

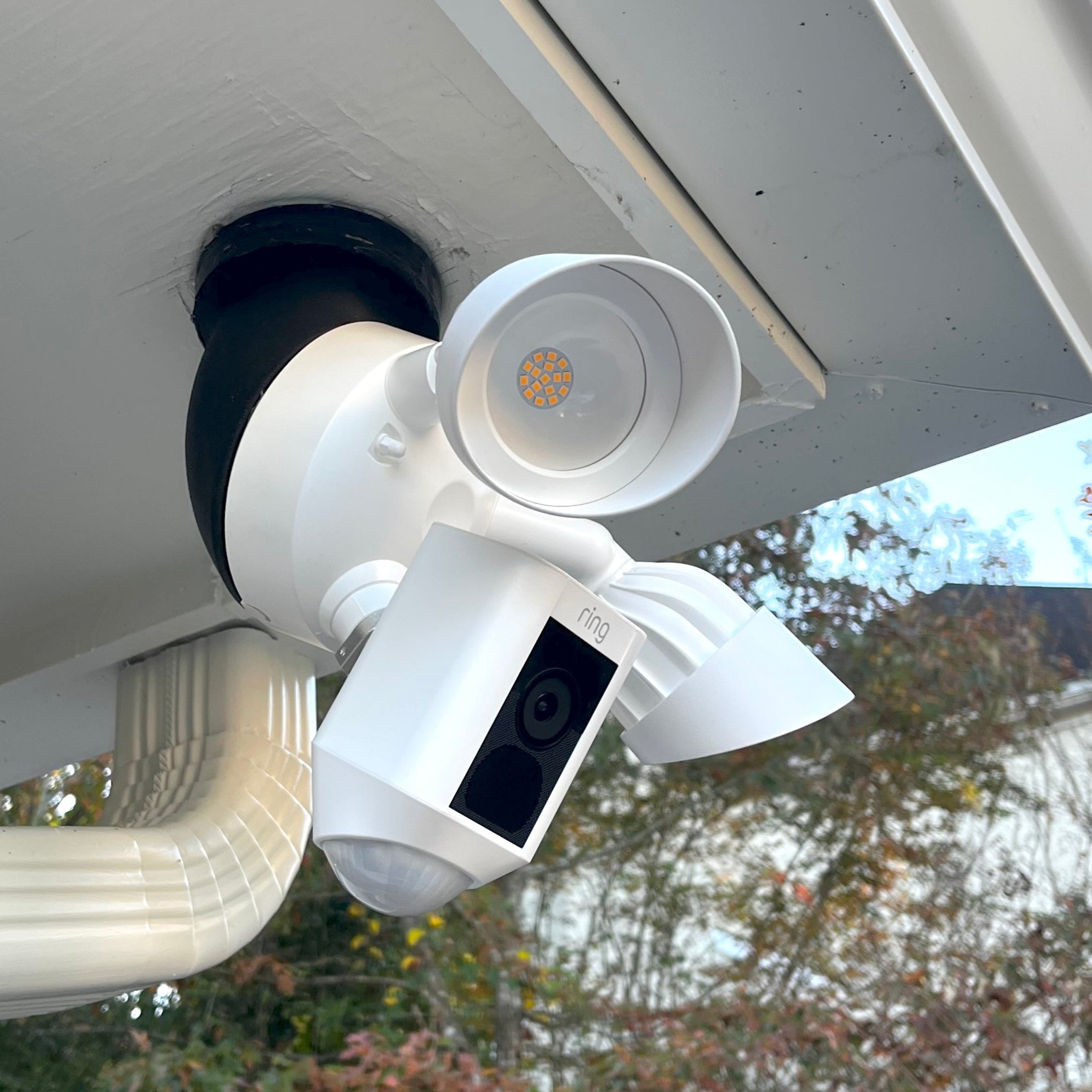

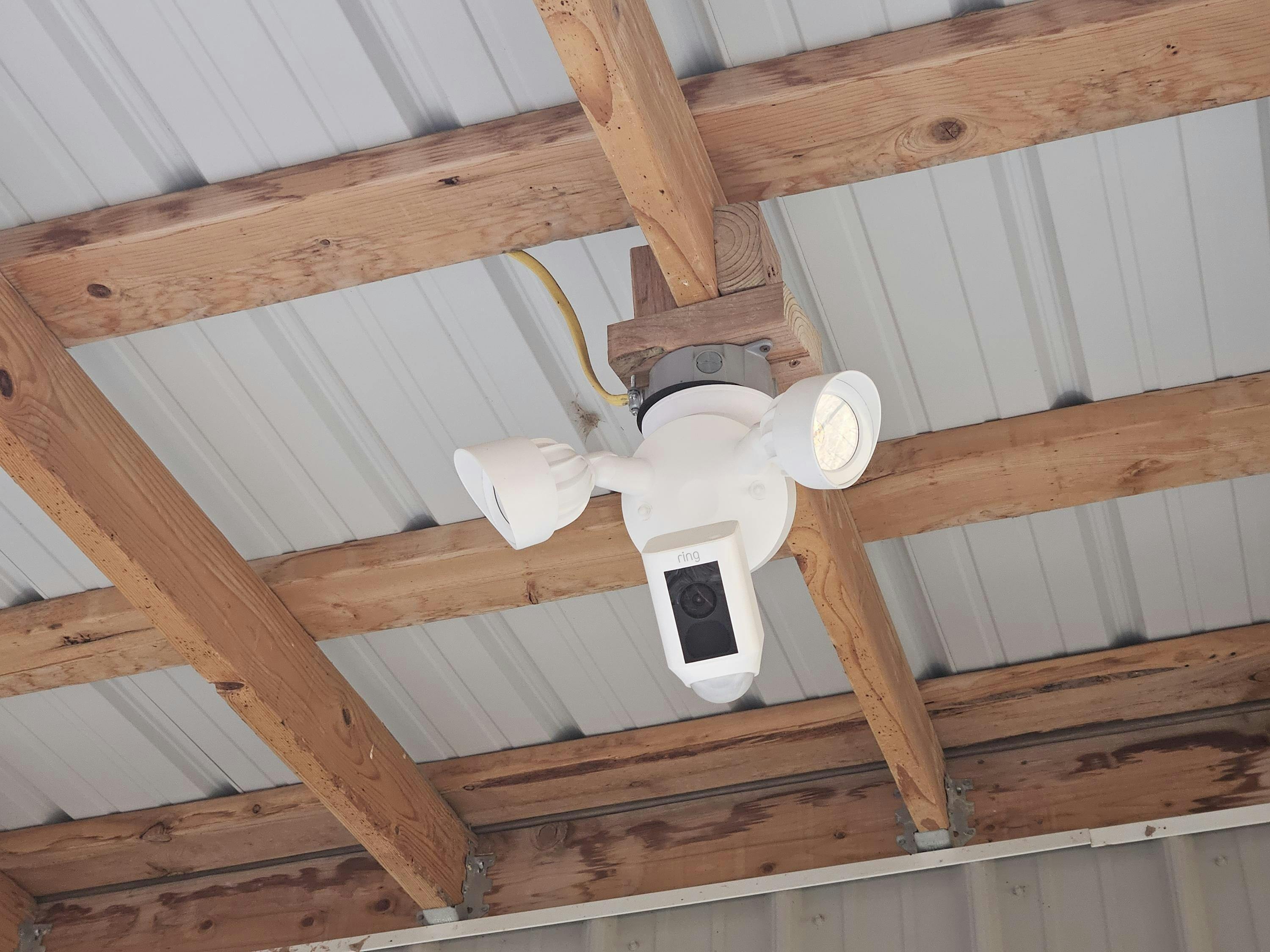

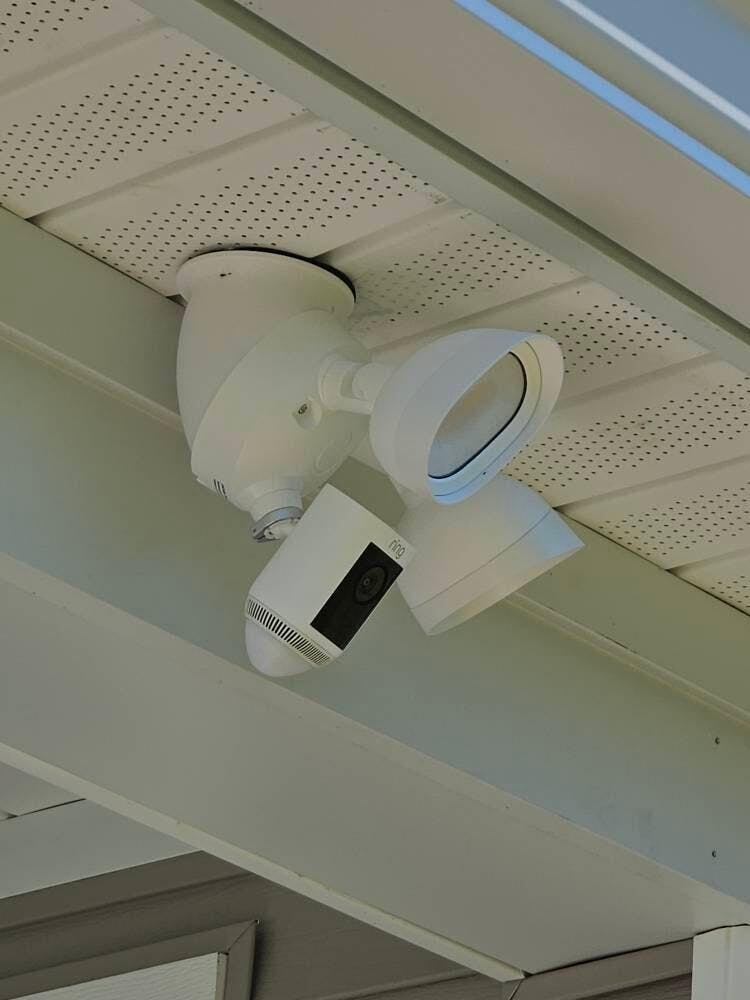

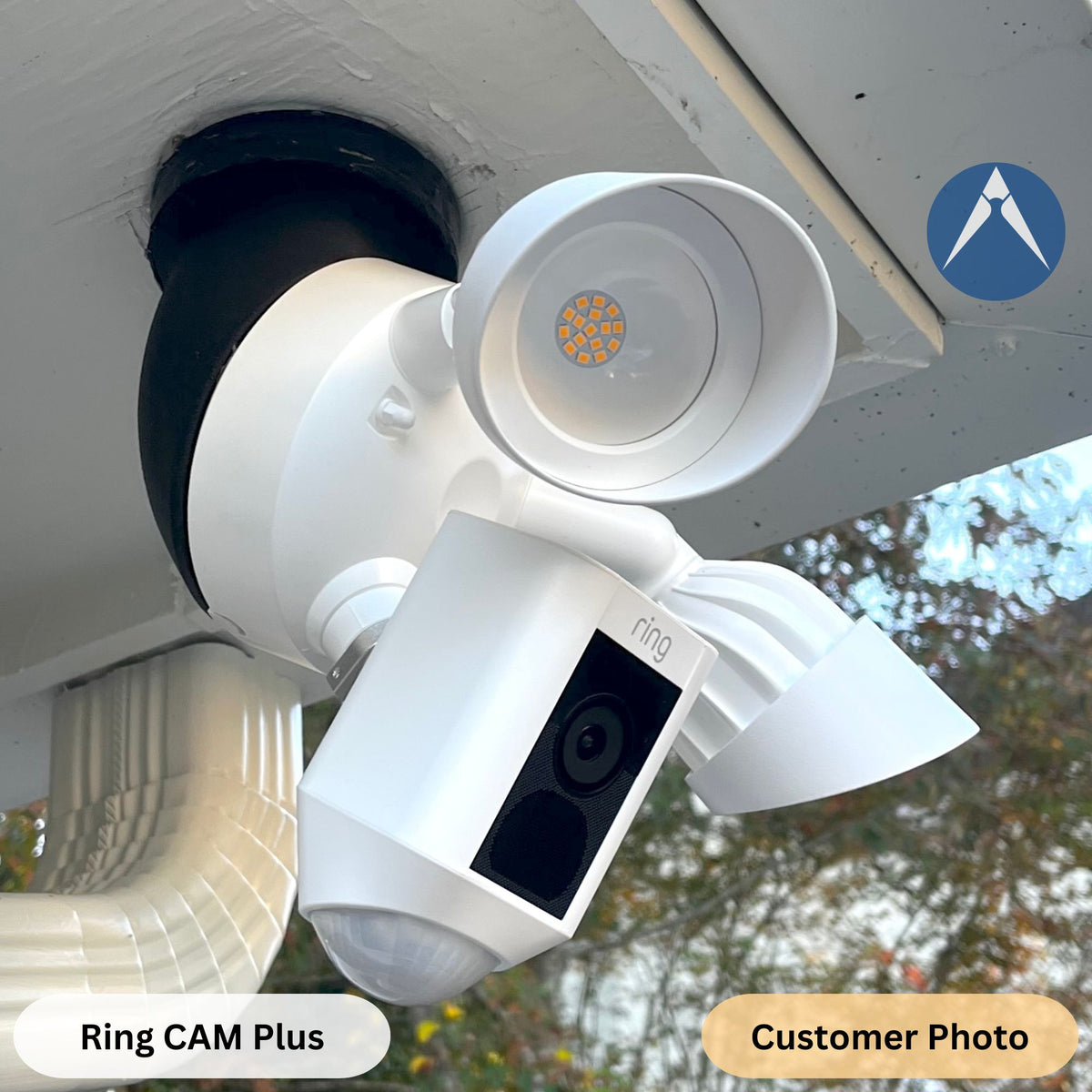

Most floodlight cameras—including the Ring Wired Pro and Blink Floodlight—are designed for vertical wall mounting. The Universal 60° Soffit Mount provides the angle needed for an under-eave installation, positioning the camera to look outward instead of down at the ground.
🌟 Why Choose This Mount?
- Standard Junction Box Interface: Fits a standard 4-inch round junction box with 88.9 mm (3.5 in) mounting-screw spacing.
- Clean, Professional Aesthetic: The smooth, one-piece curved profile effortlessly complements your home's exterior trim, keeping water out and completely avoiding the awkward "sewer pipe look" of other alternatives.
- Heavy-Duty Construction: Built to survive the elements, featuring 3 mm wall thickness and all-metal internal mounting hardware.
📹 Camera Compatibility
Compatible with floodlight cameras designed to install on a standard 4-inch junction box with 88.9 mm (3.5 in) mounting-screw spacing, including:
- Ring Floodlight Cam (Pro/Plus/1)
- Ring Outdoor Cam Pro / Spotlight Cam Pro (only with Hardwired Kit)
- Ring Spotlight Cam Plus / Spotlight Cam Pro (only with Hardwired Kit)
- Arlo Wired Floodlight Camera
- Blink Wired Floodlight
- Blink Outdoor 4 Floodlight Camera
- Lorex 2k Floodlight Camera
- Reolink Elite Floodlight
- Tapo 2k+ Outdoor Wired Floodlight
- Wyze Floodlight Camera (v2/Pro)
📐 Specifications
- Base diameter: 127 mm (5 in)
- Round device opening diameter: 127 mm (5 in)
- Overall height: 128.30 mm (5 in)

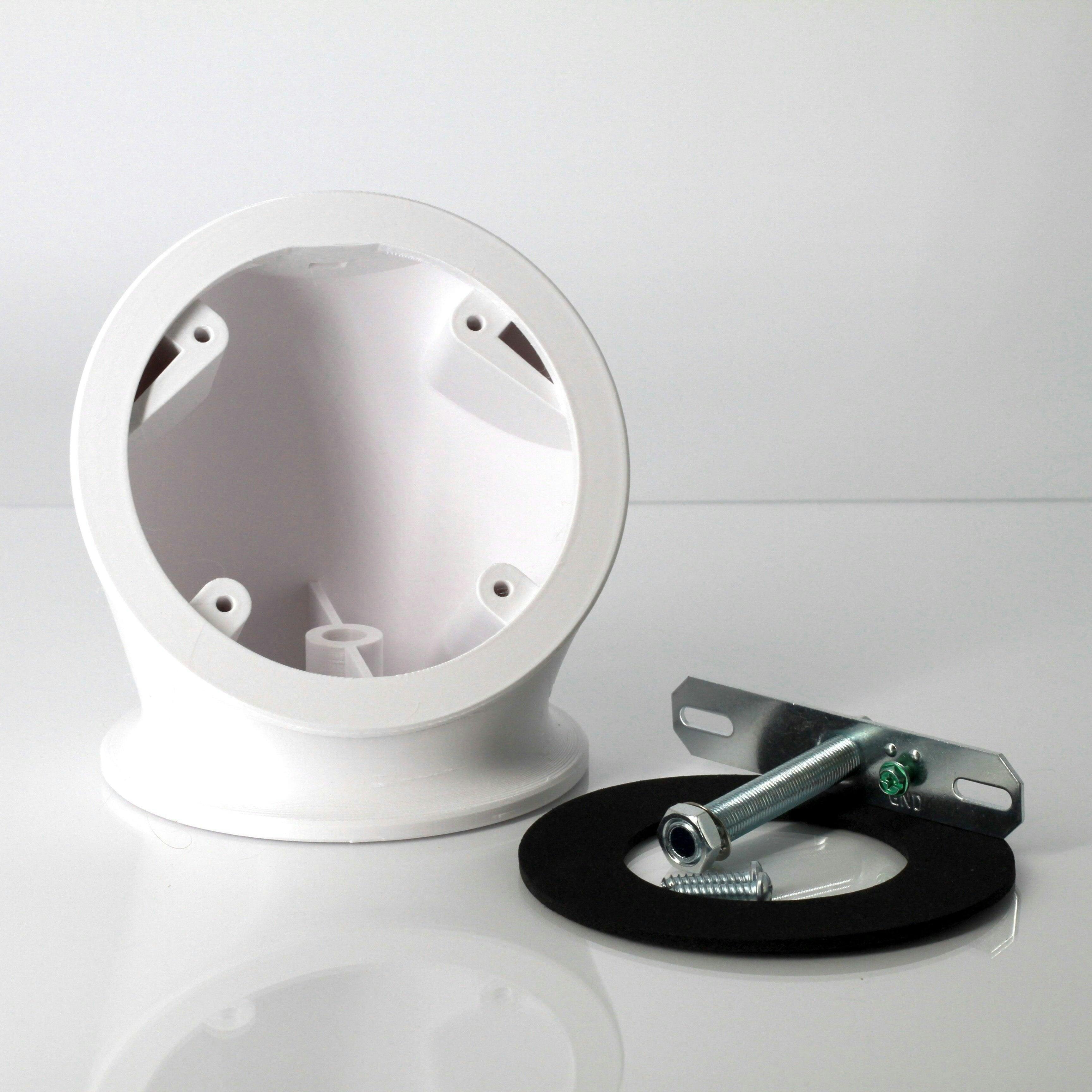

📦 In The Box
- 1x crossbar installation hardware set
- 1x piece round weatherproof gasket
- 2x #8 x 3/4" thread forming screws
🛠️ Fix Common Mounting Issues
Need to tweak your setup further? Expand your system with our matching accessories:
- Sloped or Angled Eaves? If your soffit isn't perfectly flat, pair this with our soffit wedge to eliminate the slope and level your horizon line.
- Exposed Junction Box? Grab one of our custom matching junction box covers for a completely flush, seamless look.
- Blocked by Gutters or Downspouts? Use our soffit drop extensions to drop the camera lower and clear your home's sightline limitations.
