This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.

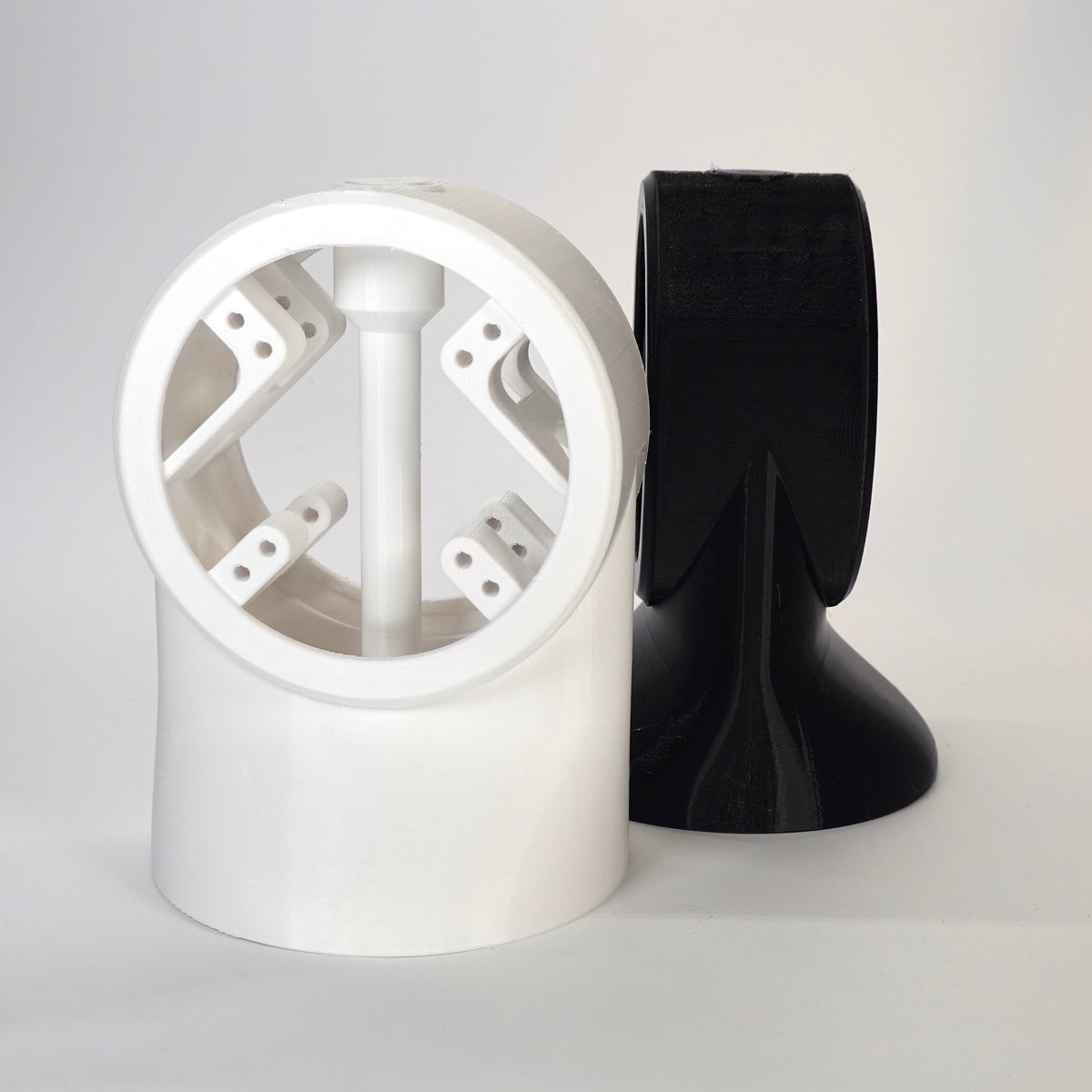

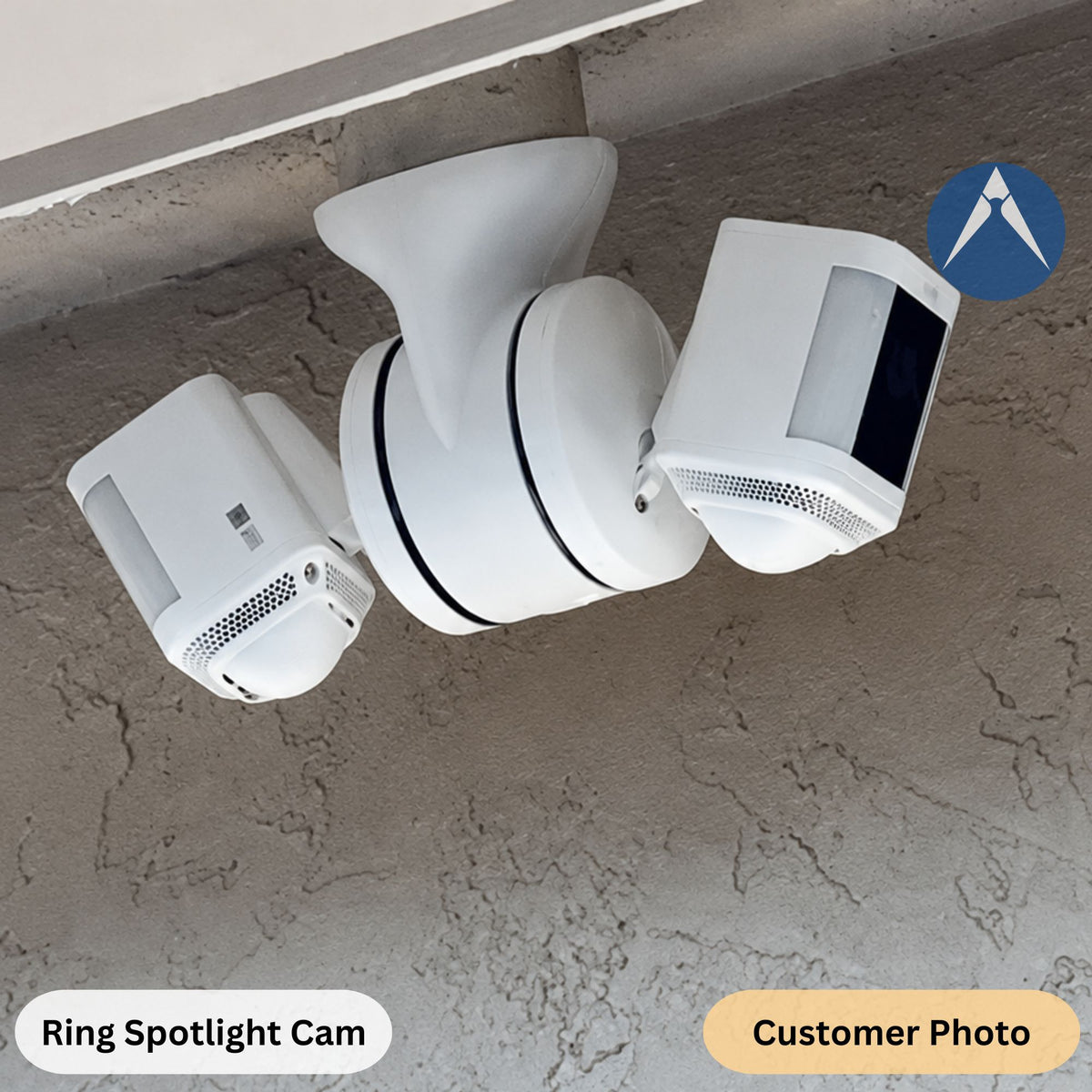

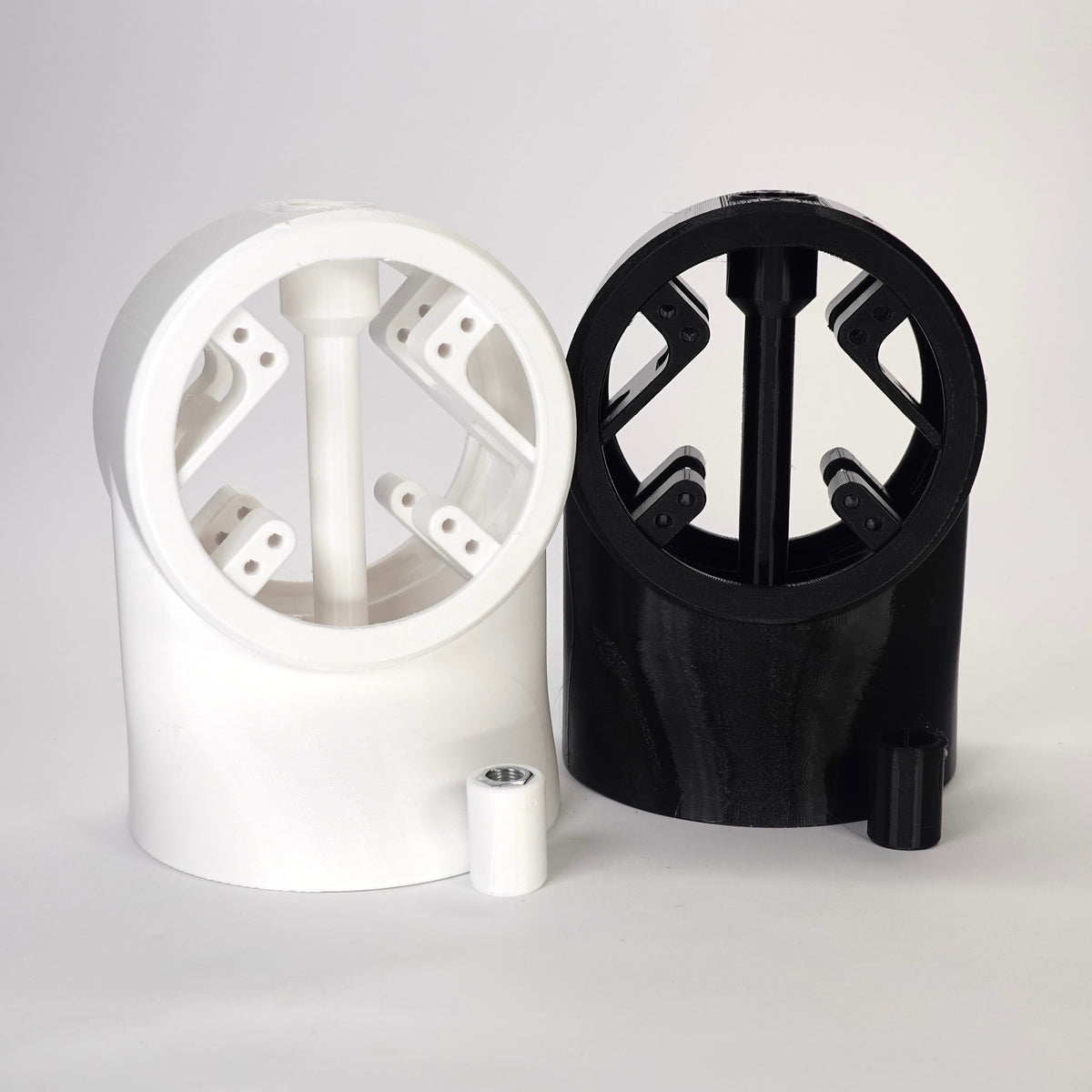

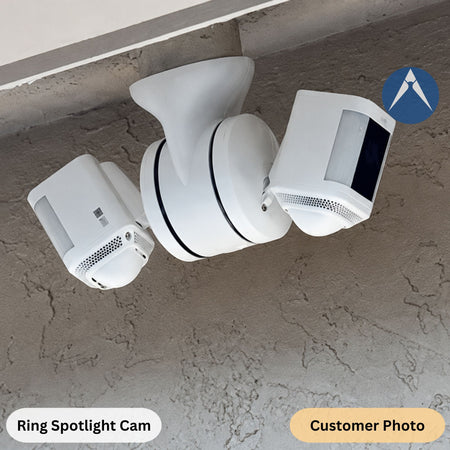

Slim 90° Dual Soffit Mount for Floodlight Cameras
Regular price
$40.95
Regular price
-23%
$52.95
Sale price
$40.95
Couldn't load pickup availability
Double Your Coverage: Opposing-Zone Corner Security
Most floodlight cameras are designed for flat, vertical wall mounting, making it difficult to monitor two directions from a single corner. The Slim 90° Dual Soffit Mount combines two device openings with a low-profile, under-eave design.
The two device openings are positioned 180° apart so compatible cameras can monitor opposing zones from one mounting point. Actual coverage depends on each camera's field of view and final aim.
🌟 Why Choose This Mount?
- Back-to-Back Dual Mount: Supports two cameras with openings positioned 180° apart for opposing-zone coverage.
- Heavy-Duty Construction: Built for outdoor exposure with a rugged 3 mm wall thickness and one-piece curved design. Internal metal hardware spans the full length of the mount for structural rigidity and reduced camera shake.
- Clean, Architectural Look: The low-profile design keeps the top tucked neatly under the soffit while avoiding a bulky DIY appearance.
- Standard Junction Box Interface: Attaches to a standard 4-inch round weatherproof junction box with 88.9 mm (3.5 in) mounting-screw spacing.
📹 Camera Compatibility
Compatible with cameras designed to mount to a standard 4-inch junction box with 88.9 mm (3.5 in) mounting-screw spacing, including:
- Ring Floodlight Cam (Pro/Plus/1)
- Ring Outdoor Cam Pro / Spotlight Cam Pro (only with Hardwired Kit)
- Ring Spotlight Cam Plus / Spotlight Cam Pro (only with Hardwired Kit)
- Arlo Wired Floodlight Camera
- Blink Wired Floodlight
- Blink Outdoor 4 Floodlight Camera
- Lorex 2K Floodlight Camera
- Reolink Elite Floodlight
- Tapo 2K+ Outdoor Wired Floodlight
- Wyze Floodlight Camera (v2/Pro)
📐 Specifications
- Mounting Base Diameter: 127 mm (5 in)
- Round Device Opening Diameter: 127 mm (5 in), each
- Device Opening Orientation: 180° apart
- Overall Height: 177.8 mm (7 in)
- Overall Width: 127 mm (5 in)
- Wall Thickness: 3 mm

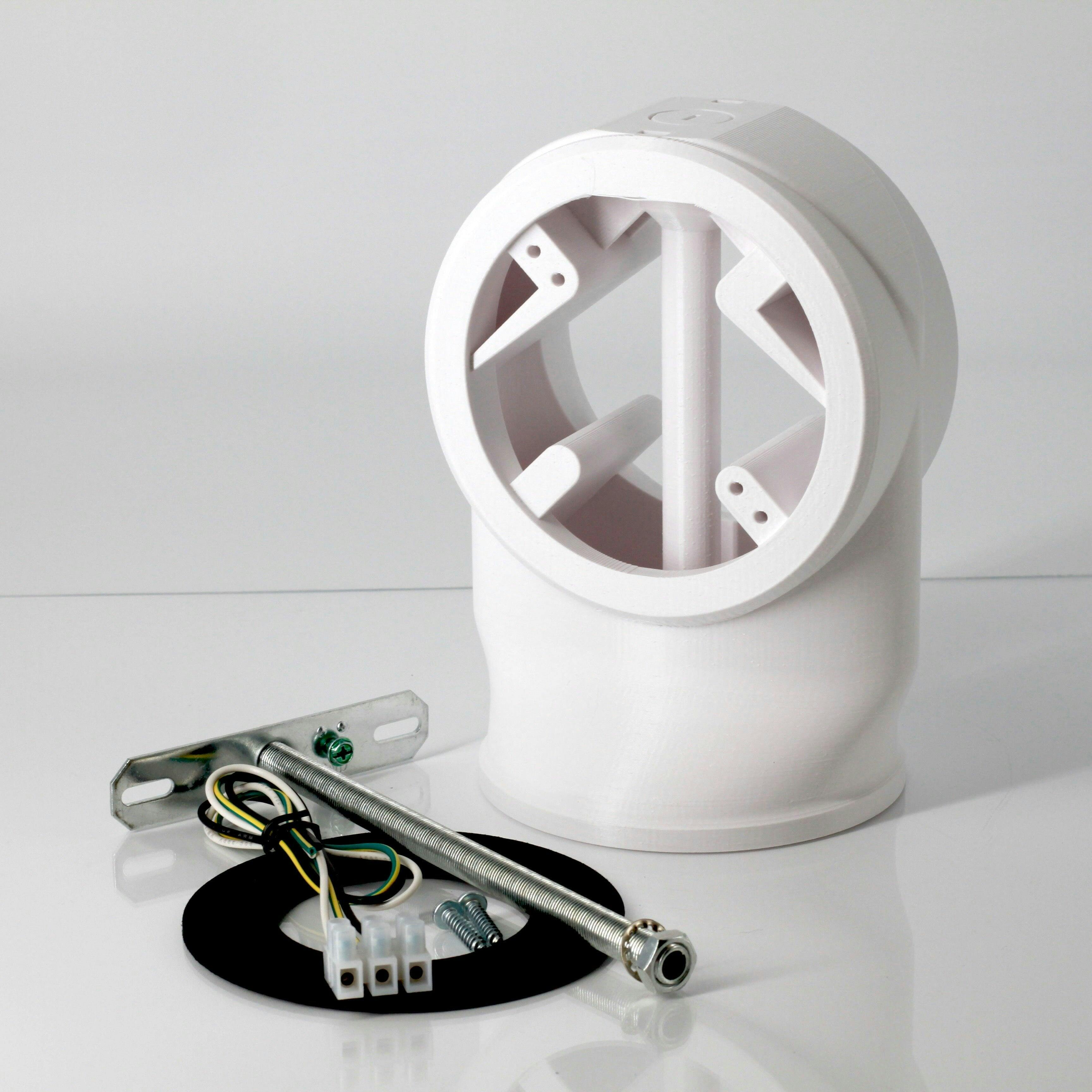

📦 In The Box
- 1x crossbar installation hardware
- 1x round weatherproof gasket
- 4x #8 x 19.05 mm (0.75 in) thread-forming screws
- 1 terminal block
- Extension wires
🛠️ Fix Common Mounting Issues
Need to adjust your setup further? Expand your system with matching accessories:
- Sloped or Angled Eaves? Pair this mount with our soffit wedge to eliminate the slope and level the horizon line.
- Exposed Junction Box? Add one of our matching junction box covers for a flush, finished look.
- Blocked by Gutters or Downspouts? Use a soffit drop extension to lower the cameras and clear sightline obstructions.
MADE ON DEMAND: Minimum 3 days processing time. No returns.
