Tapo MagCam Soffit and Ceiling Mount

In stock
SKU: TP-A-6070W
(0)
$12.95

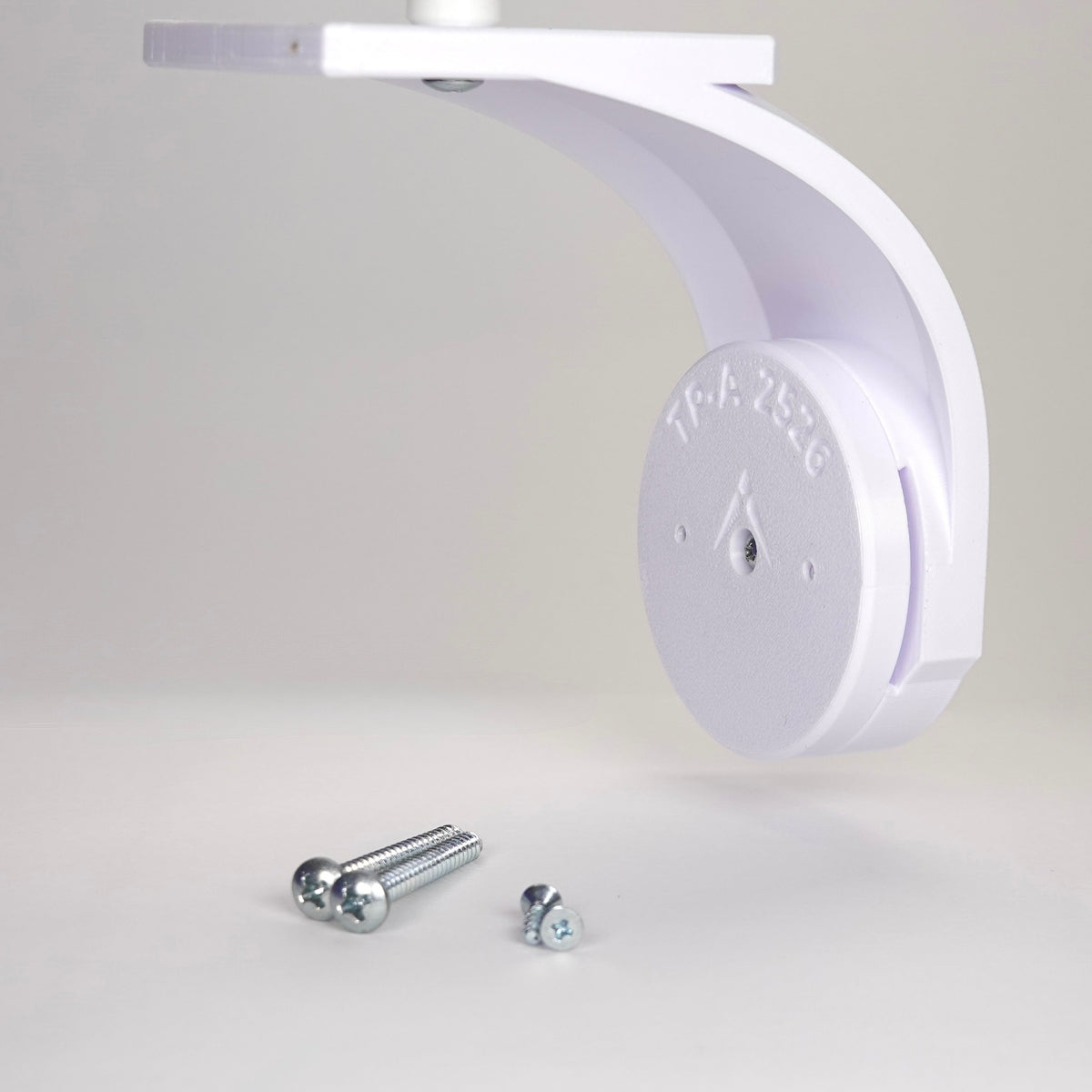

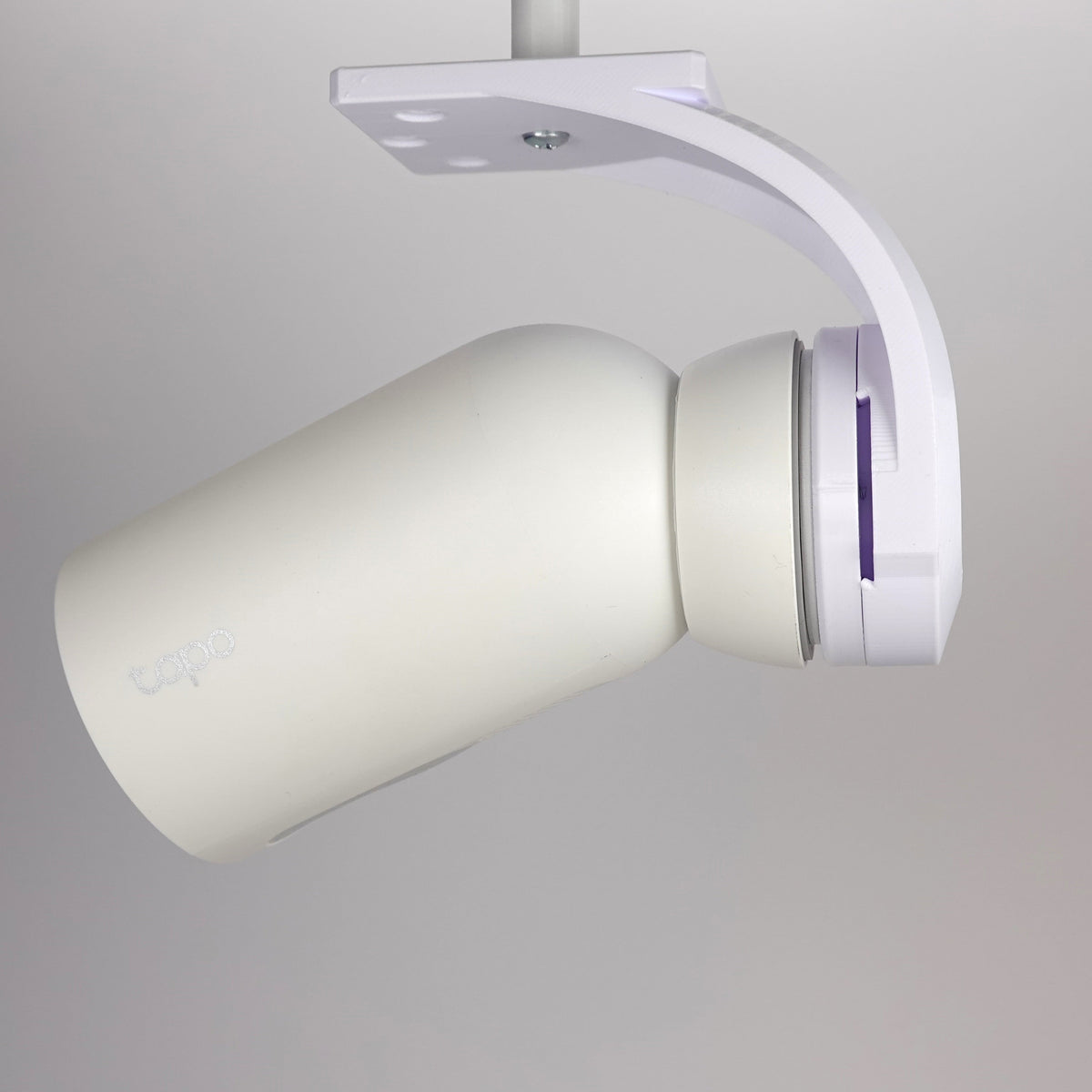

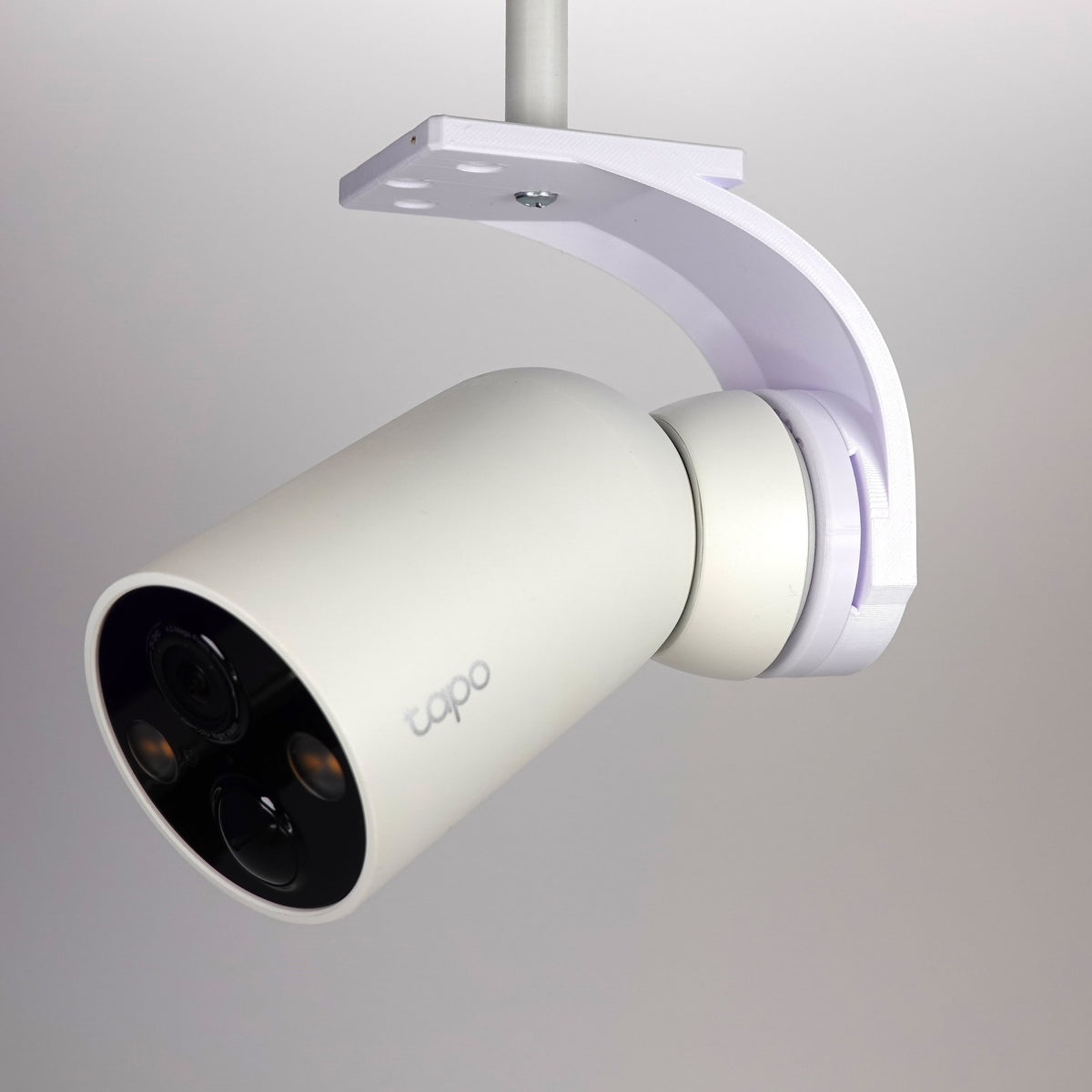

Mount a Tapo MagCam Beneath a Soffit or Ceiling

This compact curved bracket provides an overhead mounting position for compatible Tapo battery-powered cameras with a magnetic base. Install it beneath a soffit, eave, ceiling, or sturdy shelf, then attach and aim the camera magnetically.

🌟 Why Choose This Mount?

  • Designed for compatible Tapo magnetic camera bases
  • Low-profile curved shape for overhead mounting
  • Camera remains easy to remove, recharge, and reposition
  • Screw-mounted installation
  • White finish

📹 Confirmed Camera Compatibility

  • Tapo C425, C425 KIT, and C425K
  • Tapo TC85 and TC85 KIT
  • Tapo C460 and C460 KIT
  • Tapo C465

Multipacks use the same camera models. Compare your camera and magnetic mounting base with the listing images before ordering.

📦 In The Box

  • 1 Tapo MagCam soffit and ceiling mount
  • 2 M3 × 10 mm thread-forming screws
  • 2 #8 × 1-1/2 in self-tapping screws

Camera and magnetic camera base are not included.

🛠️ Installation

  1. Choose a suitable location on the soffit, eave, ceiling, or shelf.
  2. Secure the bracket to the mounting surface with the supplied #8 screws.
  3. Secure the original Tapo magnetic mounting base to the bracket with the supplied M3 screws.
  4. Attach the camera magnetically, aim it, and follow Tapo's setup instructions.

⚠️ Before Installation

  • Confirm that the camera and original magnetic mounting base match one of the compatible models listed above.
  • Confirm that the mounting surface and supplied fasteners are appropriate for the installation. Use suitable anchors or alternate fasteners when required.
  • Verify magnetic attachment and camera fit before final installation.
  • No weight rating is provided.

This item is 3D-printed in durable PCTG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.

It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
