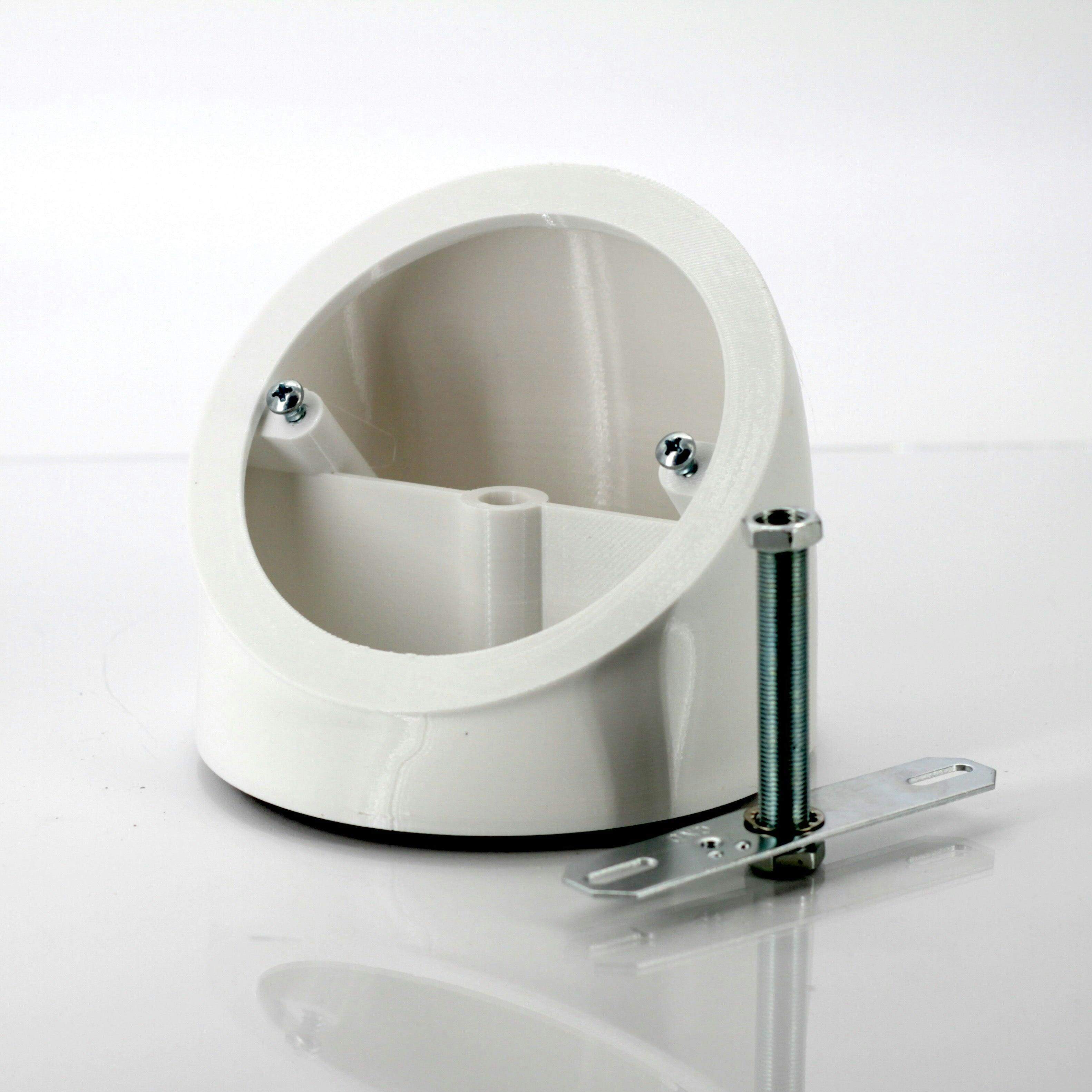

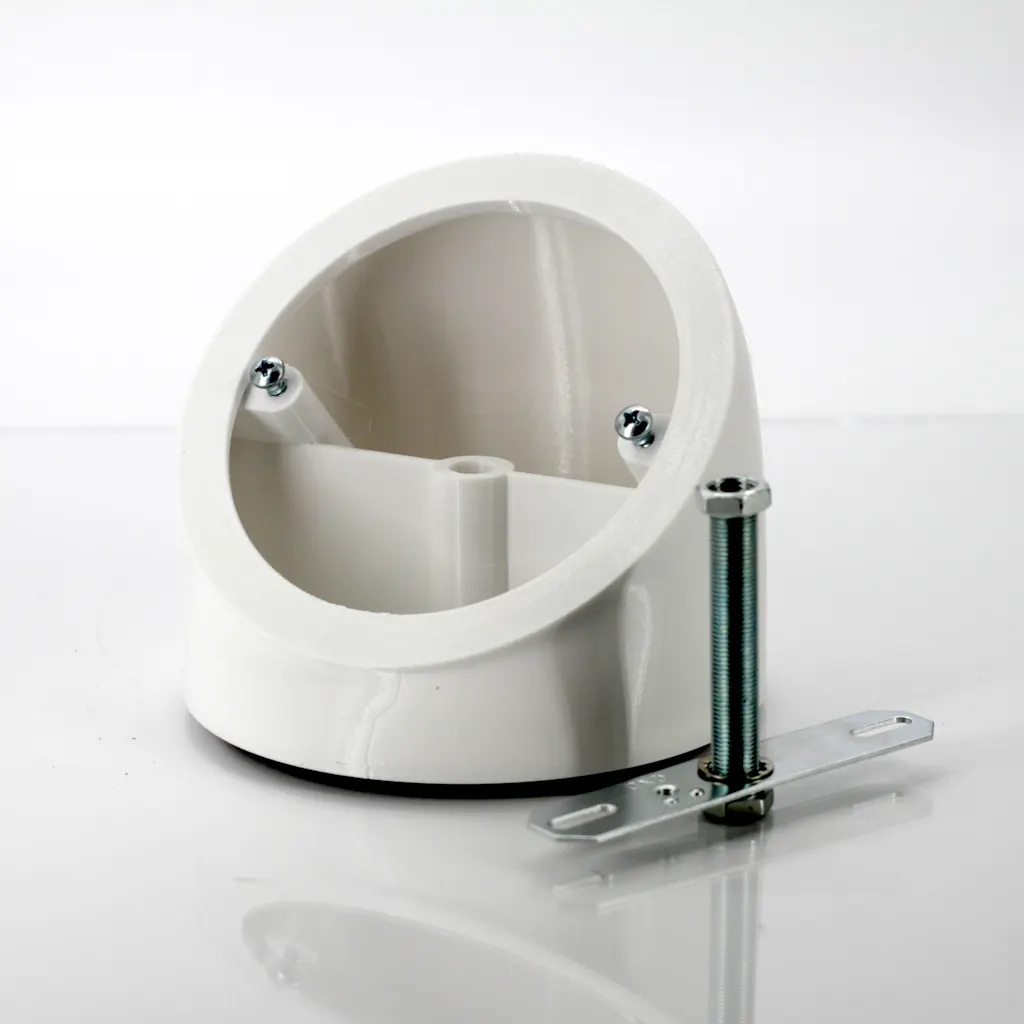

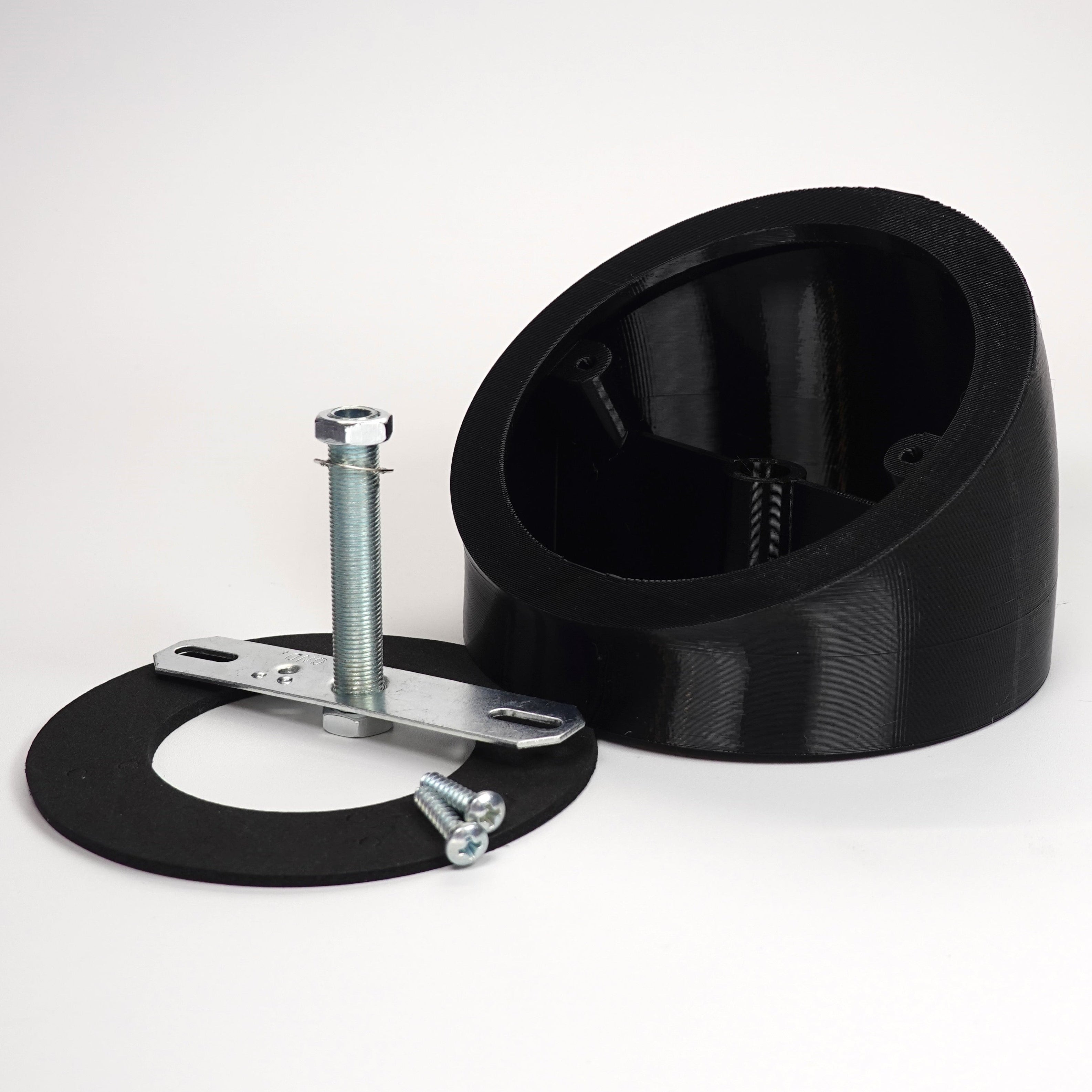

Universal Soffit Wedge for Angled Soffits (8°–45°)

Level a Floodlight Fixture on an Angled Soffit

This custom-angle wedge creates a level mounting surface between an angled soffit and a standard 4-inch junction-box installation. Order the whole-degree angle that matches your soffit so the fixture can sit level instead of following the roof slope.

🌟 Why Choose the Universal Wedge?

• Custom angles from 8° to 45° in whole-degree increments
• Fits standard 4-inch junction boxes with 3.5-inch mounting-screw spacing
• Includes the crossbar hardware, gasket, and screws needed for the wedge interface
• White and black options coordinate with common fixture finishes

📐 Compatibility and Specifications

• Junction box: standard 4-inch box with 3.5-inch screw spacing
• Angle range: 8°–45°, whole degrees only
• Soffit-facing base: 127 mm (5 in) diameter
• Height: varies with the ordered angle

Use this universal version for fixtures designed around standard 4-inch junction-box mounting hardware. For an Alexactly mount, choose the Reinforced Soffit Wedge with continuous metal support.

📦 In The Box

• One custom-angle soffit wedge
• One gasket
• One crossbar hardware set
• Two thread-forming screws

🛠️ Ordering and Installation

1. Measure the soffit slope with an angle finder.
2. Enter a whole-number angle from 8 to 45 in the required Angle field.
3. Install the gasket between the soffit and wedge.
4. Install the crossbar and fixture according to the fixture manufacturer's instructions.

⚠️ Before You Order

• A missing angle or fractional angle will delay the order.
• This item is made to order in your selected configuration. Please allow additional production time before shipment. Because production is specific to your selection, returns are not accepted.
• Cancellations cannot be accepted once production has begun.
• Verify the 3.5-inch junction-box screw spacing and required soffit angle before ordering.
