Mount a Compatible Wyze Camera Beneath a Soffit or Ceiling

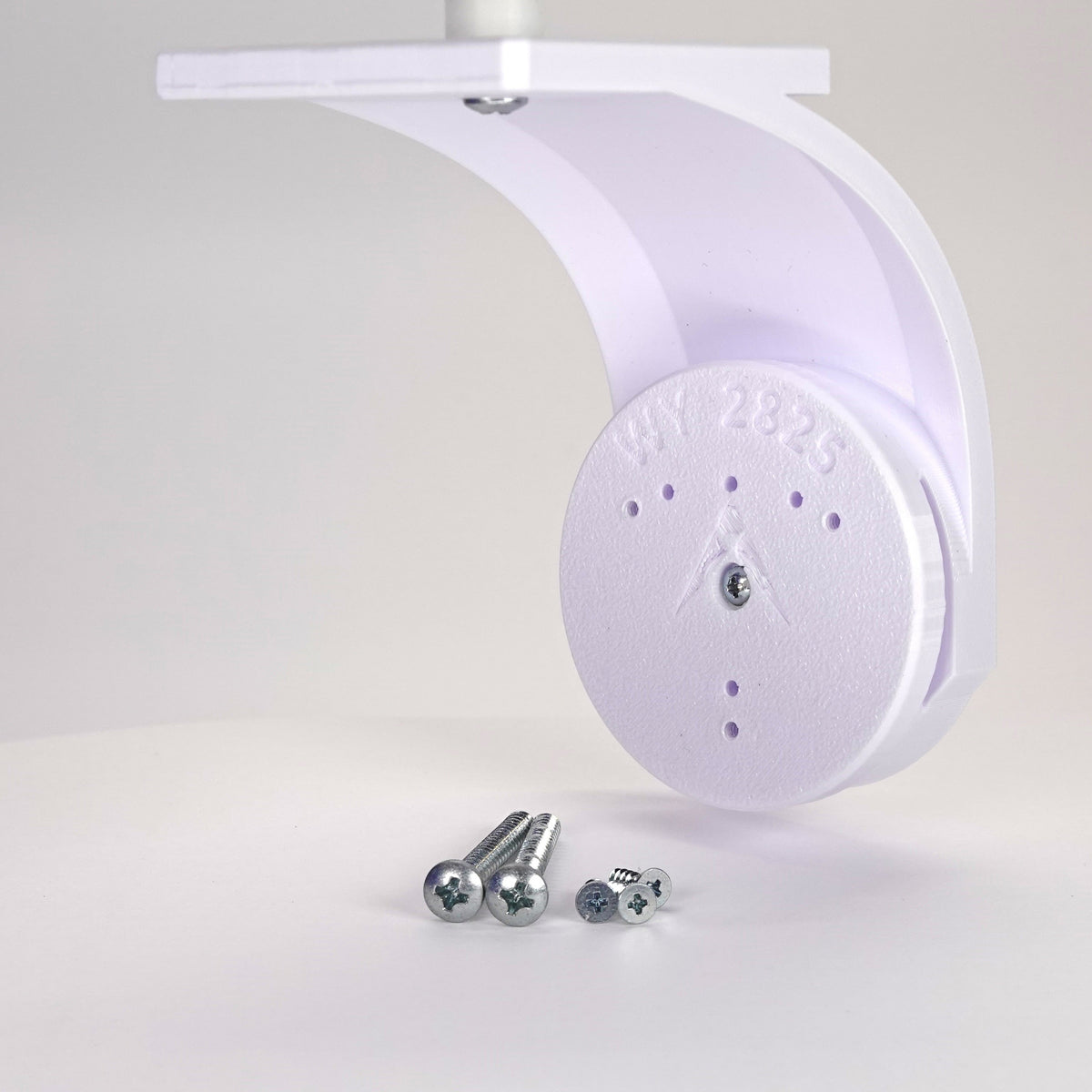

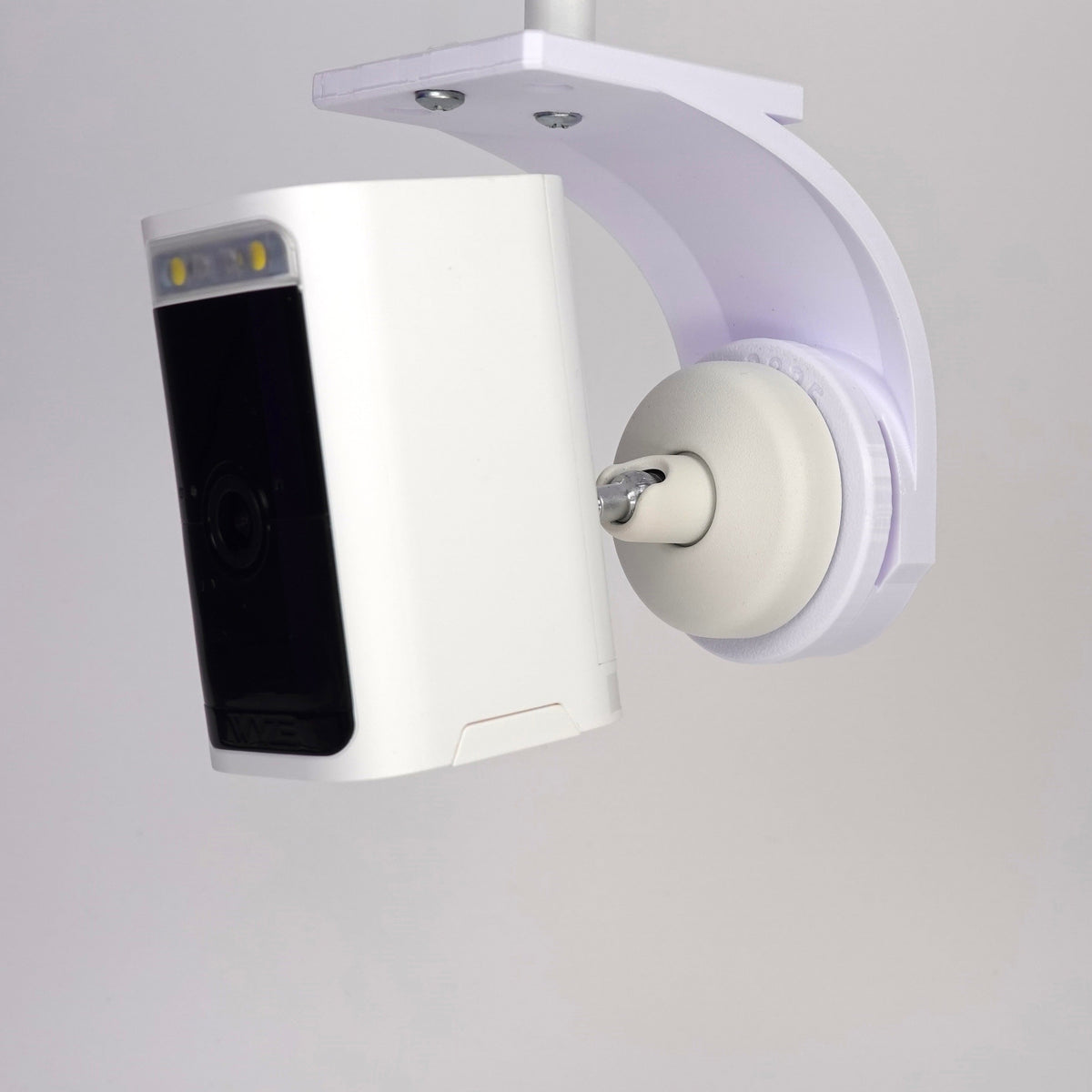

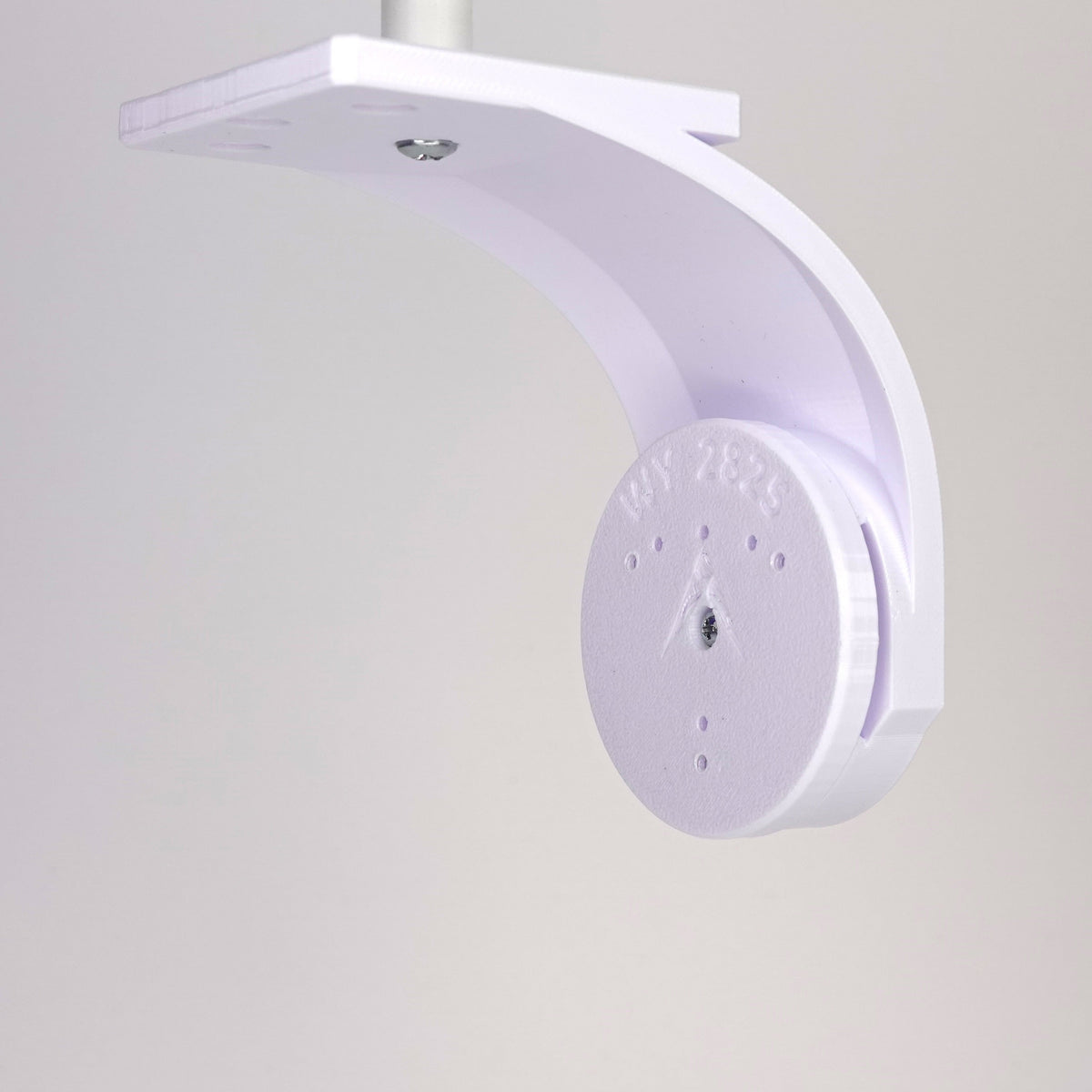

This curved bracket provides a screw-mounted position for compatible Wyze cameras beneath a soffit, eave, ceiling, or sturdy shelf. It uses the same modular WY-A camera adapter design as the Alexactly Wyze siding-clip mounts.

🌟 Why Choose This Mount?

Low-profile curved shape for overhead mounting
Multi-model Wyze adapter plate
Adjustable mounting direction using the center hole and outer mounting positions
Screw-mounted installation
Available in white or black

📹 Confirmed Camera Compatibility

Wyze Battery Cam Pro
Wyze Cam v4
Wyze Cam OG
Wyze Cam Pan v3

Compatibility uses the camera's original Wyze mounting hardware. Compare your camera and mounting hardware with the listing images before ordering.

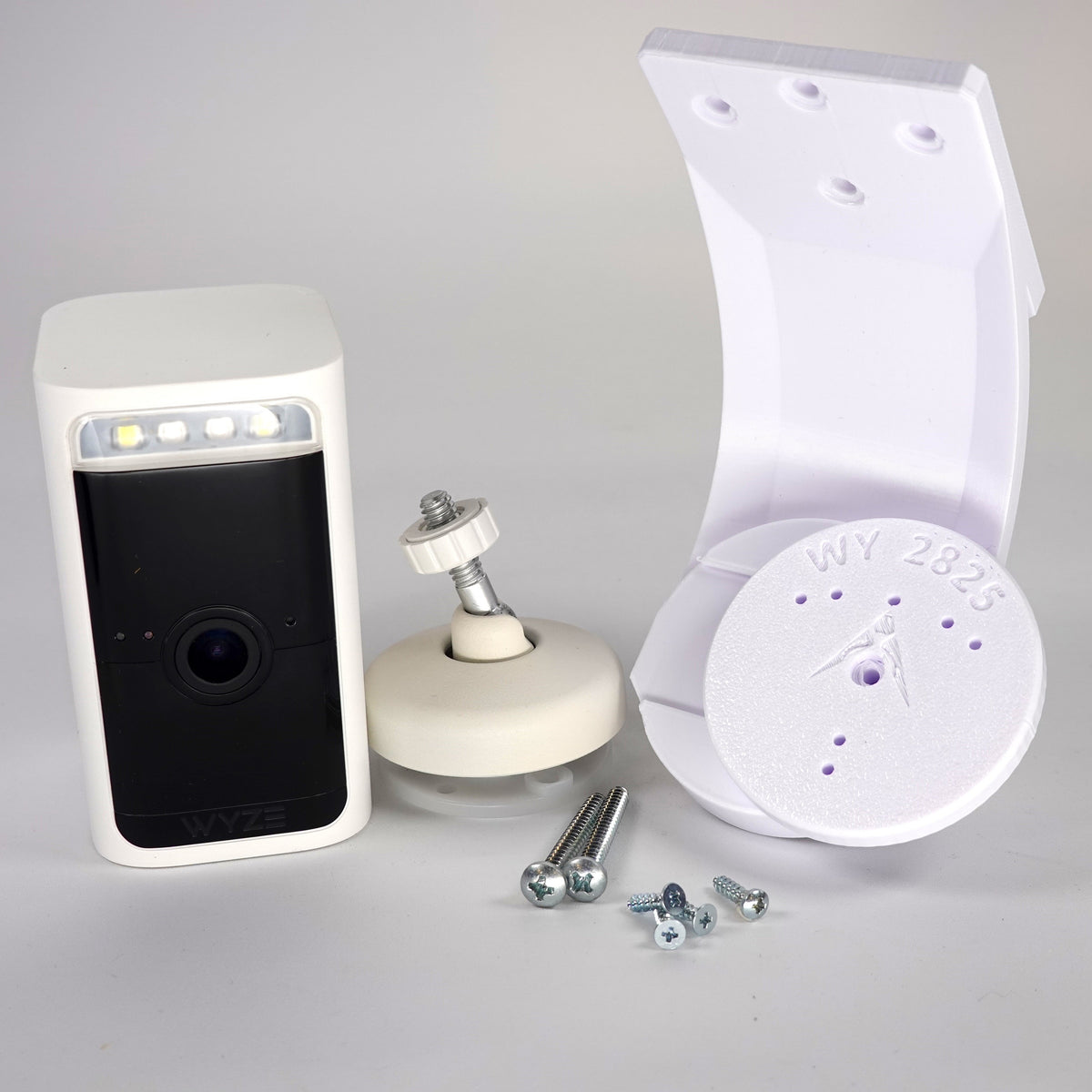

📦 In The Box

1 Wyze soffit and ceiling mount assembly
1 M3 × 10 mm round-head thread-forming screw
3 M3 × 10 mm flat-head thread-forming screws
2 #8 × 1-1/2 in self-tapping screws

Camera and original Wyze mounting hardware are not included.

🛠️ Installation

Choose a suitable location on the soffit, eave, ceiling, or shelf. Positioning near or into structural framing provides a more stable installation.
Attach the Wyze adapter plate to the curved bracket with the supplied round-head screw.
Install one supplied #8 screw through the center hole.
Rotate the bracket to the desired direction, then secure it through an outer mounting position with the second #8 screw.
Attach the camera's original Wyze mounting hardware to the adapter plate using the supplied flat-head screws.
Install and aim the camera using Wyze's instructions.

⚠️ Before Installation

Confirm that the camera and original Wyze mounting hardware match one of the compatible models listed above.
Confirm that the mounting surface and supplied fasteners are appropriate for the installation. Use suitable anchors or alternate fasteners when required.
