This item is 3D-printed in durable PETG via FDM. Do not install in locations where surface temperatures may exceed 55°C (131°F). Because this product is 3D-printed, it may show subtle layer lines or small surface imperfections. These cosmetic variations are normal and do not affect function or performance.
It is not ETL or UL-listed and should not be used in applications where certified components are required by code. For those situations, we recommend using common off-the-shelf (COTS) parts. Our responsibility is limited exclusively to the replacement of any defective product. We are not liable for incidental, consequential, or indirect damages arising from use or misuse of this item.
Soffit Mount for Reolink Duo (Non-Floodlight) Cameras
Regular price
$32.95
Regular price
-23%
$42.95
Sale price
$32.95
Couldn't load pickup availability
Mount a Reolink Duo Camera Under a Soffit
This camera-specific soffit mount converts a horizontal soffit into a vertical mounting surface for confirmed Reolink Duo non-floodlight cameras using the 75 mm octagonal mounting bracket. It installs over a standard junction box.
🌟 Why Choose This Mount?
- Camera-specific interface: The device side matches the confirmed 75 mm octagonal Reolink bracket.
- Integrated cable path: Routes the camera connection through the mount toward the junction box.

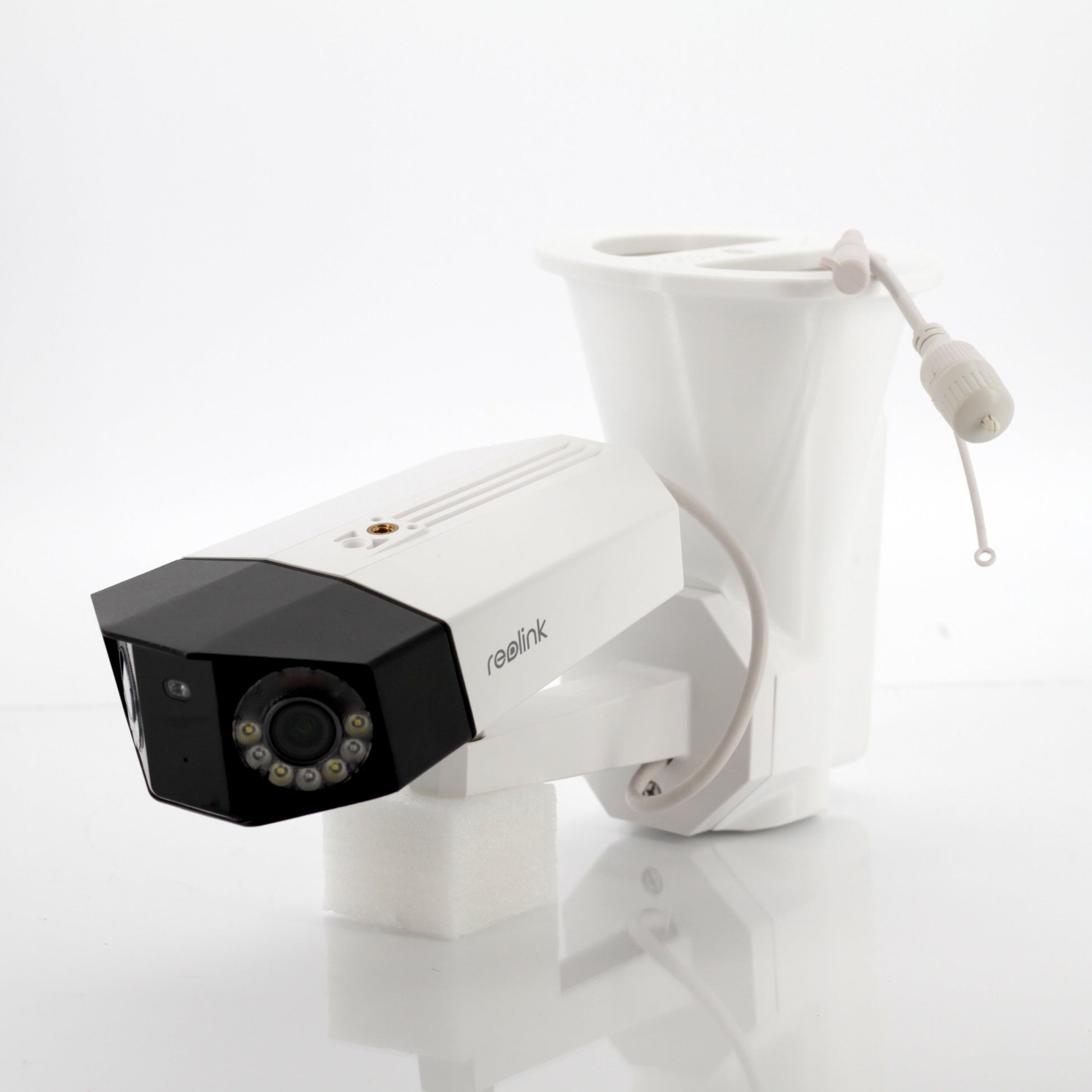

- Purpose-built position: Presents the original camera bracket vertically beneath the soffit.
📹 Verified Camera Compatibility
Reolink Duo non-floodlight cameras using the 75 mm octagonal mounting bracket. Compare your original bracket before ordering.
📐 Specifications
- Junction-box-side diameter: 127 mm (5 in)
- Height: 178 mm (7 in)

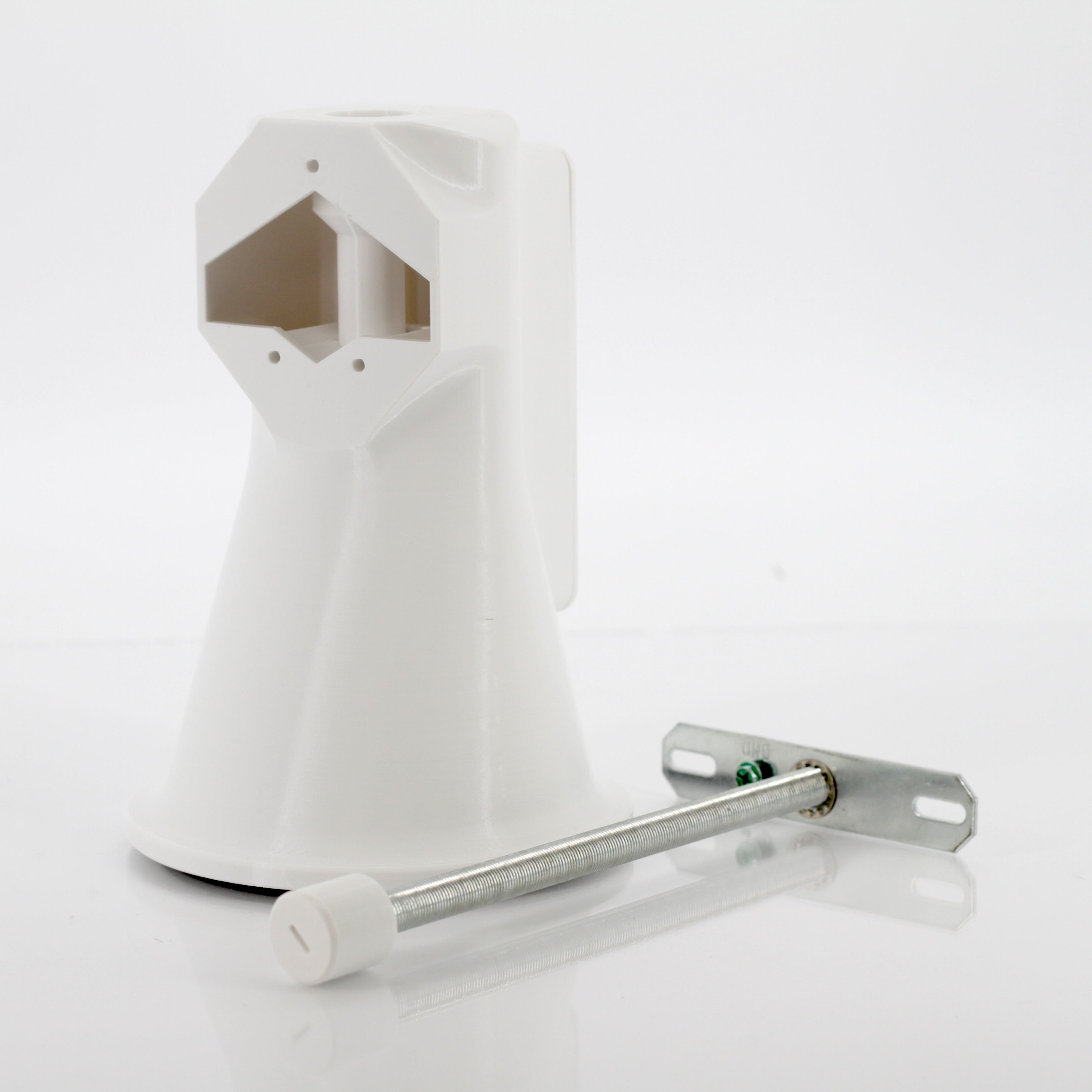

- Camera side: Shaped for the 75 mm octagonal Reolink bracket
📦 In The Box
- 1 Reolink Duo soffit mount

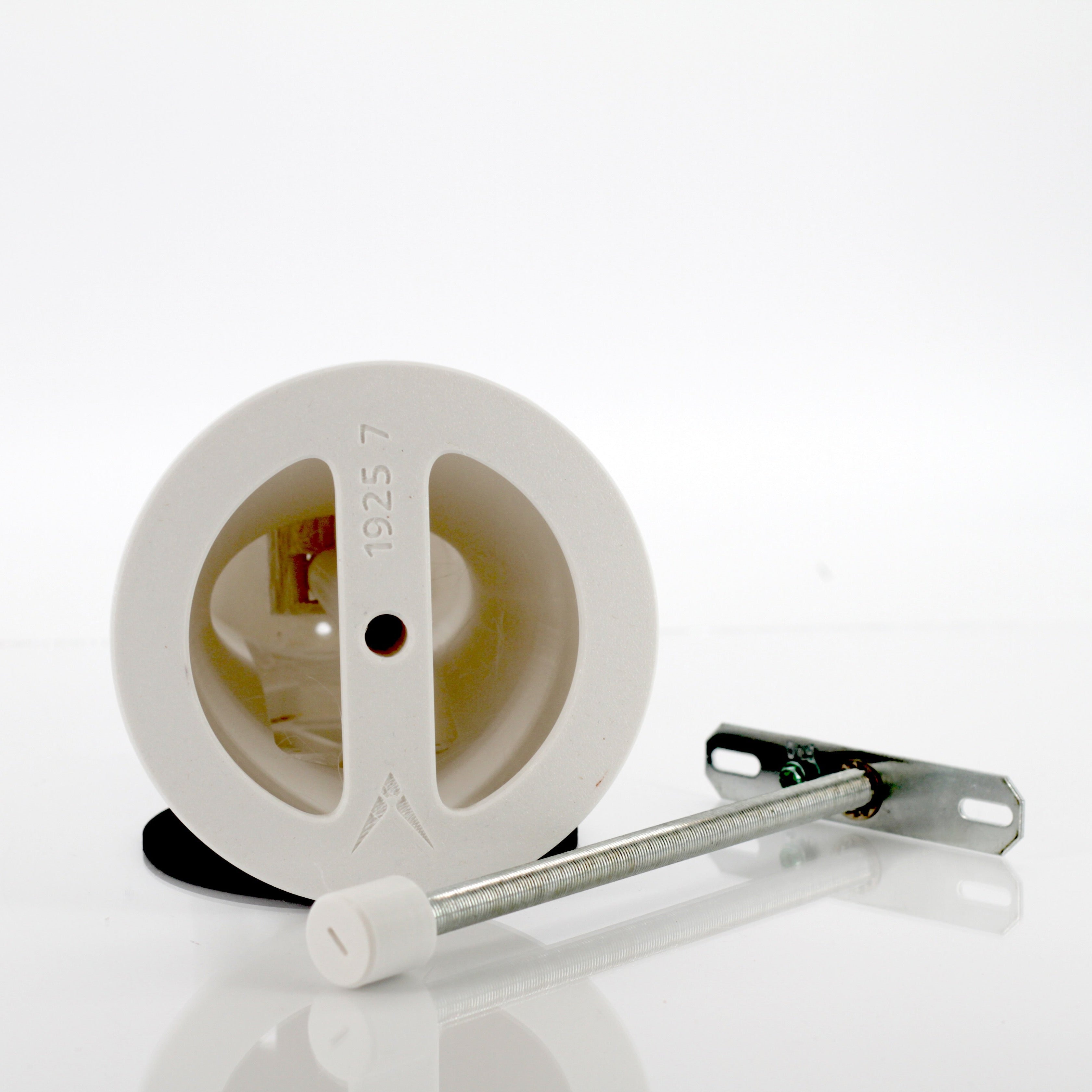

- 1 crossbar installation hardware set
- 1 round weatherproof gasket
- 4 M3 × 12 mm thread-forming screws
Camera, original Reolink bracket, and electrical junction box are not included.
🛠️ Installation

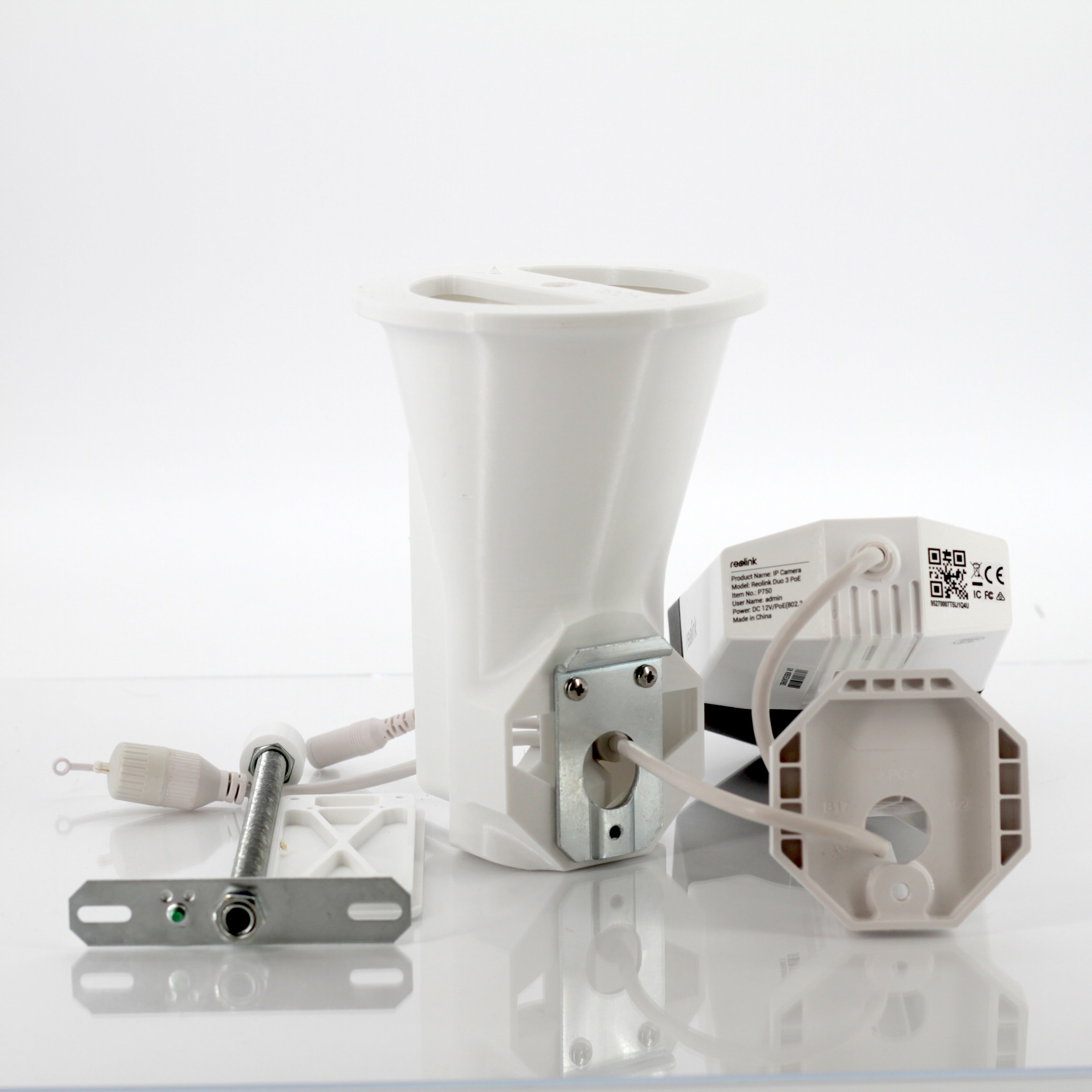

Mount the crossbar to the junction box, place the gasket at the box side, and secure the soffit mount. Attach the original Reolink bracket to the device-specific side with the supplied thread-forming screws. Complete cable routing and weather sealing according to the camera manufacturer's instructions and applicable requirements.
